HCBL Quick-test 90 degree Elbows

  • Features
  • Specifications
  • Models
  • Certifications

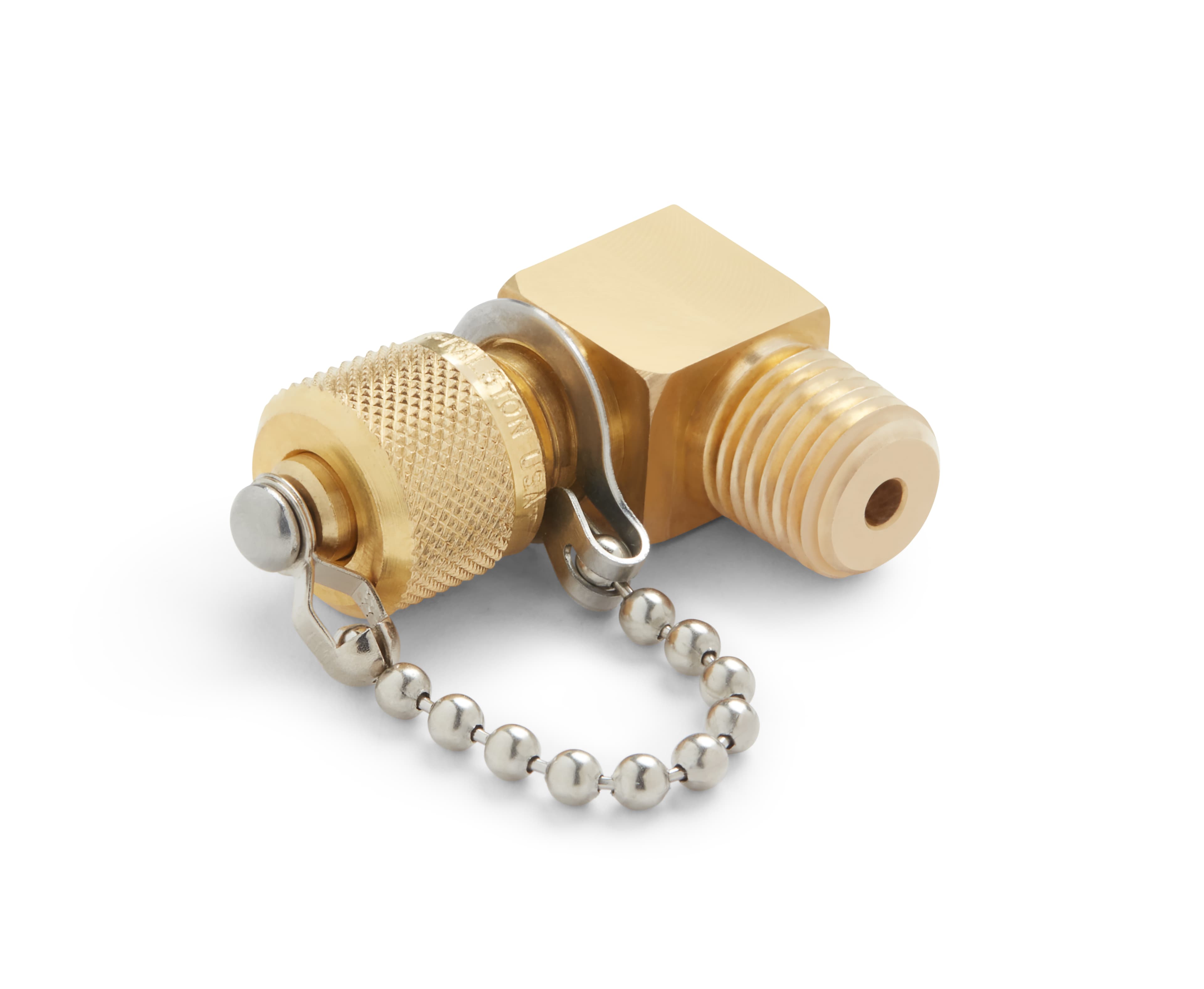

Part Number: QTFT-2MBL

Male 1/4" NPT x Male Quick-test 90 degree elbow with cap and chain, brass

Connect to any 1/4" Female NPT connection and install for permanent service

Download DatasheetNeed help? Contact Us

Specifications

Weight2.91 oz / 82 grams
Length1.91 in / 49 mm
Width1.22 in / 31 mm
Height0.56 in / 15 mm
Country of originUSA
MaterialsBrass
Max Operating Temperature225 °F / 105 °C
Max Pressure5000 PSI / 350 bar / 35 MPa
Min Operating Temperature0 °F / -18 °C
Seal MaterialsBuna-N
End 1 Connector
1/4" Male NPT (ASME B1.20.1)
End 1 DirectionLeft
End 2 Connector
Male Quick-test
End 2 Cap and ChainYes
End 2 DirectionLeft

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote
