Part Number: QTHA-HCHB

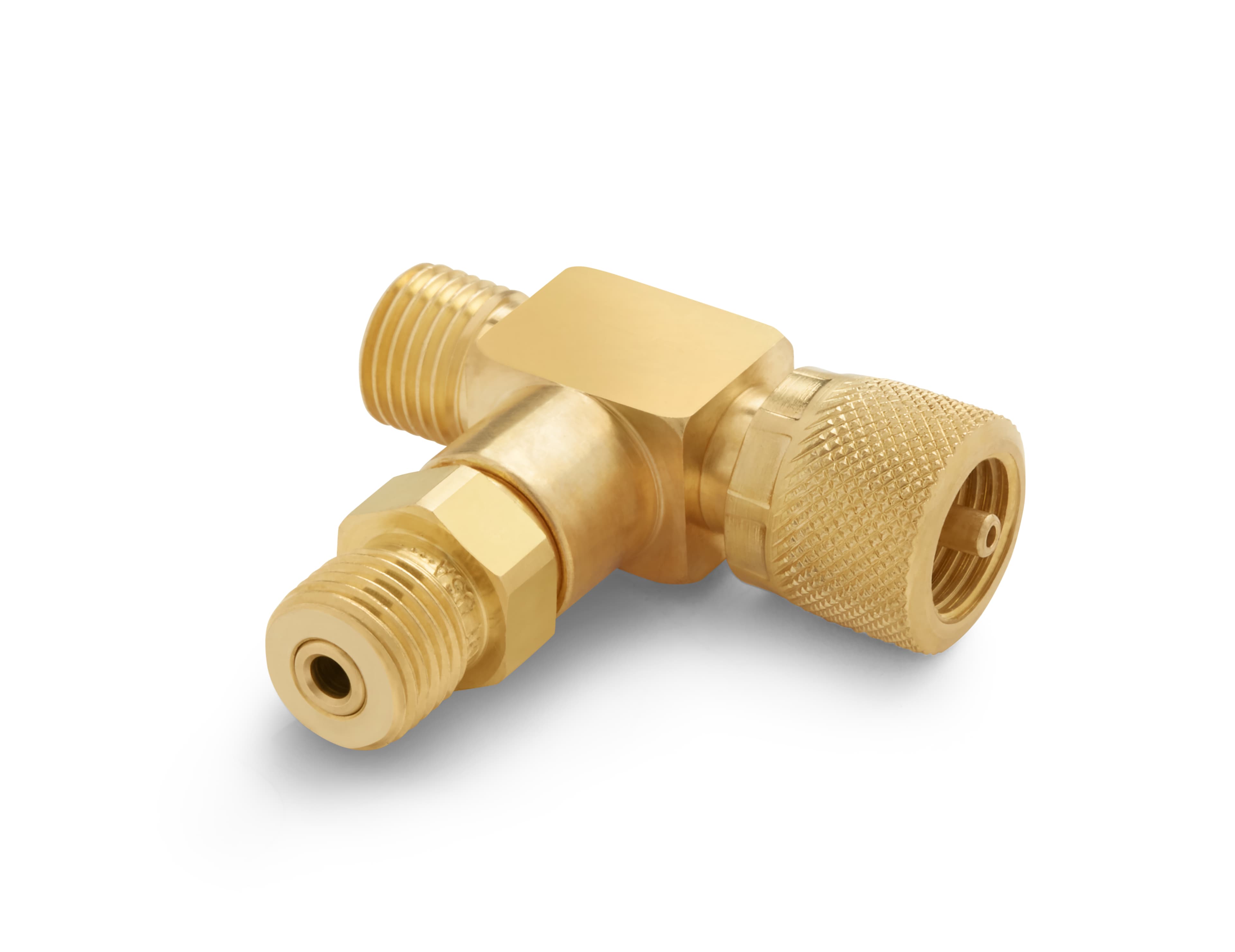

Male Quick-test run x female Quick-test run x male Quick-test branch tee, brass

Connect three hoses or a combination of 3 hoses, adapters and hand pumps or manifolds

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Specifications

Weight3.28 oz / 93 grams
Length2.2 in / 56 mm
Width1.93 in / 50 mm
Height1.93 in / 50 mm
Country of originUSA
MaterialsBrass
Max Operating Temperature225 °F / 105 °C
Max Pressure5000 PSI / 350 bar / 35 MPa
Max Vacuum0 InHg / 0.0 kPa
Min Operating Temperature0 °F / -18 °C
Seal MaterialsBuna-N
End 1 Connector
Male Quick-test
End 1 DirectionLeft
End 2 Connector
Female Quick-test
End 2 DirectionLeft
End 3 Connector
Male Quick-test
End 3 DirectionLeft
