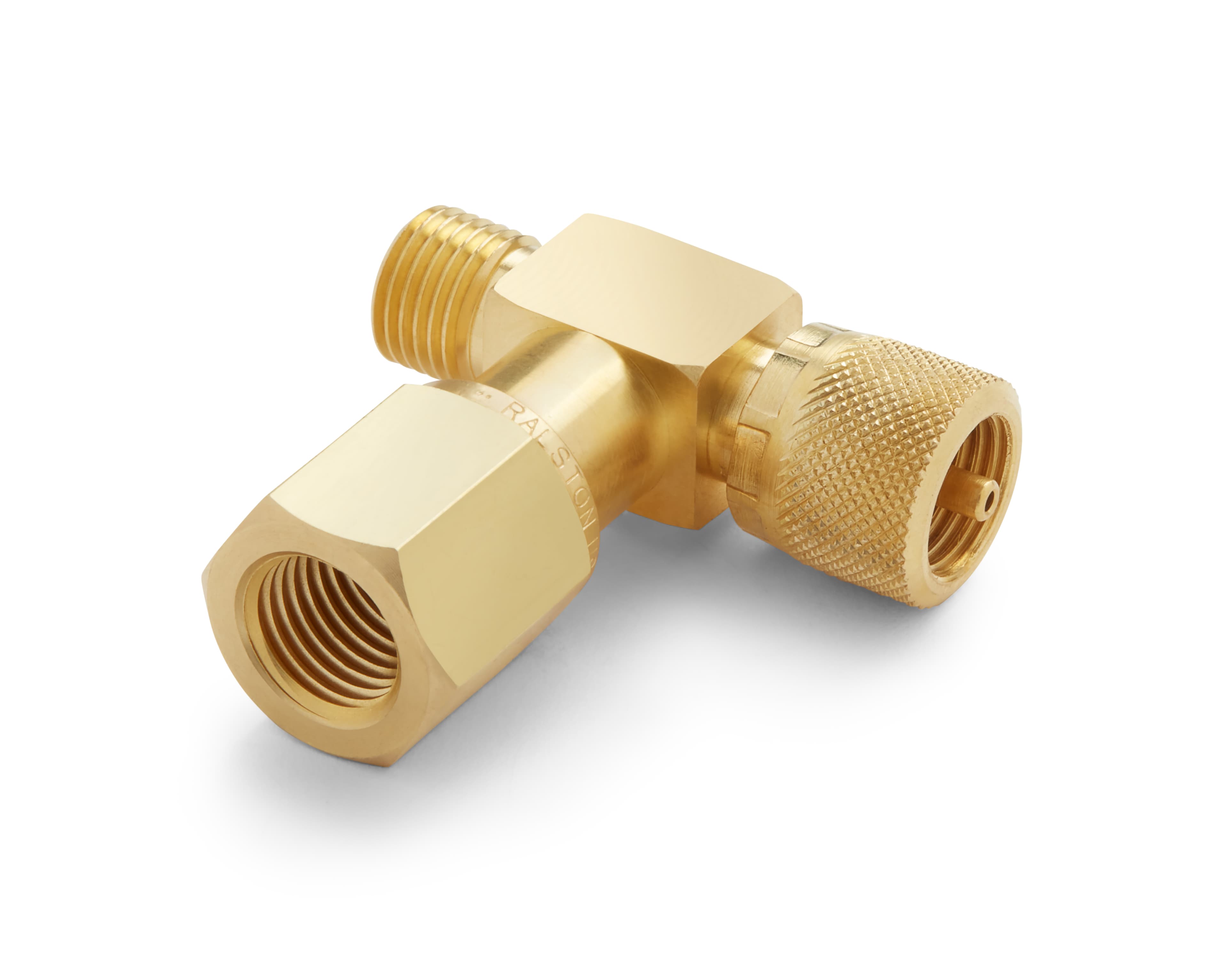

Part Number: QTHA-HFCB-2F
Male Quick-test run x female Quick-test run x 1/4" female NPT branch tee, brass
Connect three hoses or a combination of 3 hoses, adapters and hand pumps or manifolds
Specifications
| Weight | 3.94 oz / 110 grams |
|---|---|
| Length | 1.97 in / 51 mm |
| Width | 1.89 in / 49 mm |
| Height | 0.85 in / 22 mm |
| Country of origin | USA |
| Materials | Brass |
| Max Operating Temperature | 225 °F / 105 °C |
| Max Pressure | 5000 PSI / 350 bar / 35 MPa |
| Max Vacuum | 0 InHg / 0.0 kPa |
| Min Operating Temperature | 0 °F / -18 °C |
| Seal Materials | Buna-N |
| Wrench Size | 3/4 In / 20 mm |
| Wrench Size | 19 mm / 23/32 in |
| End 1 Connector | Male Quick-test |
| End 1 Direction | Left |
| End 2 Connector | Female Quick-test |
| End 2 Direction | Left |
| End 3 Connector | 1/4" Female NPT (ASME B1.20.1) |
| End 3 Direction | Left |
