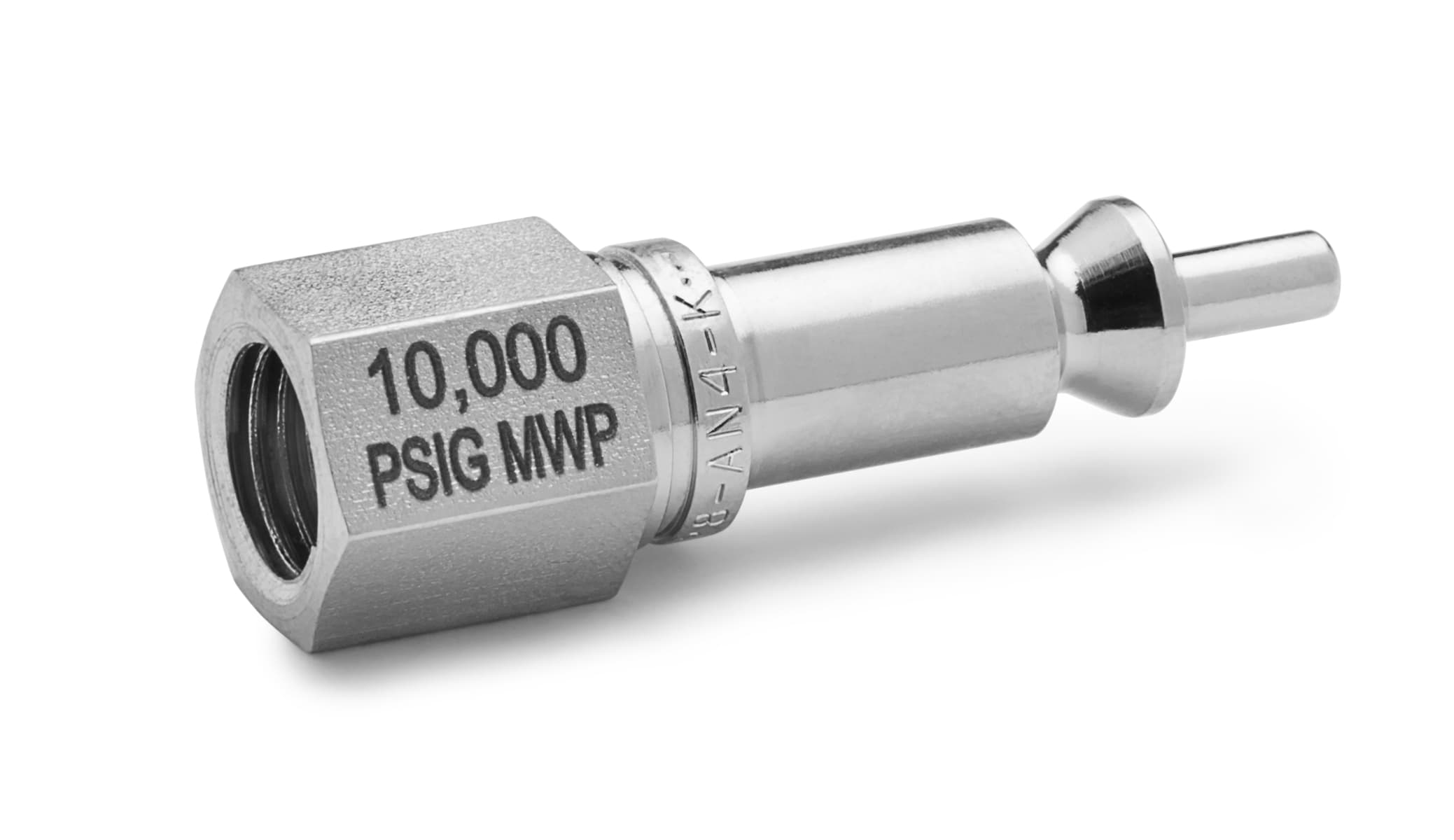

Part Number: USN0-4FAN-MP

Male USN0 Probe x Female AN4, 316 S.S.

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Quick-connect rated to 10,000 psi. Self locking so when pressure increases above 50 psi the Quick-connect cannot be disassembled.

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	0.98 oz / 28 grams
Length	1.96 in / 50 mm
Width	0.56 in / 15 mm
Height	0.65 in / 17 mm
Burst Pressure	40000 PSI / 2760 bar / 275 MPa
Country of origin	USA
Materials	316 Stainless Steel
Max Operating Temperature	200 °F / 93 °C
Max Pressure	10000 PSI / 700 bar / 70 MPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	-15 °F / -26 °C
Process Connection	1/4"(-4) Female 37 degree (AN/JIC) Flare
Wrench Size	9/16 In / 15 mm
Wrench Size	14 mm / 17/32 in
End 1 Connector	1/4"(-4) Female 37 degree (AN/JIC) Flare
End 1 Direction	Left
End 2 Connector	Male USN0 Probe
End 2 Direction	Left
