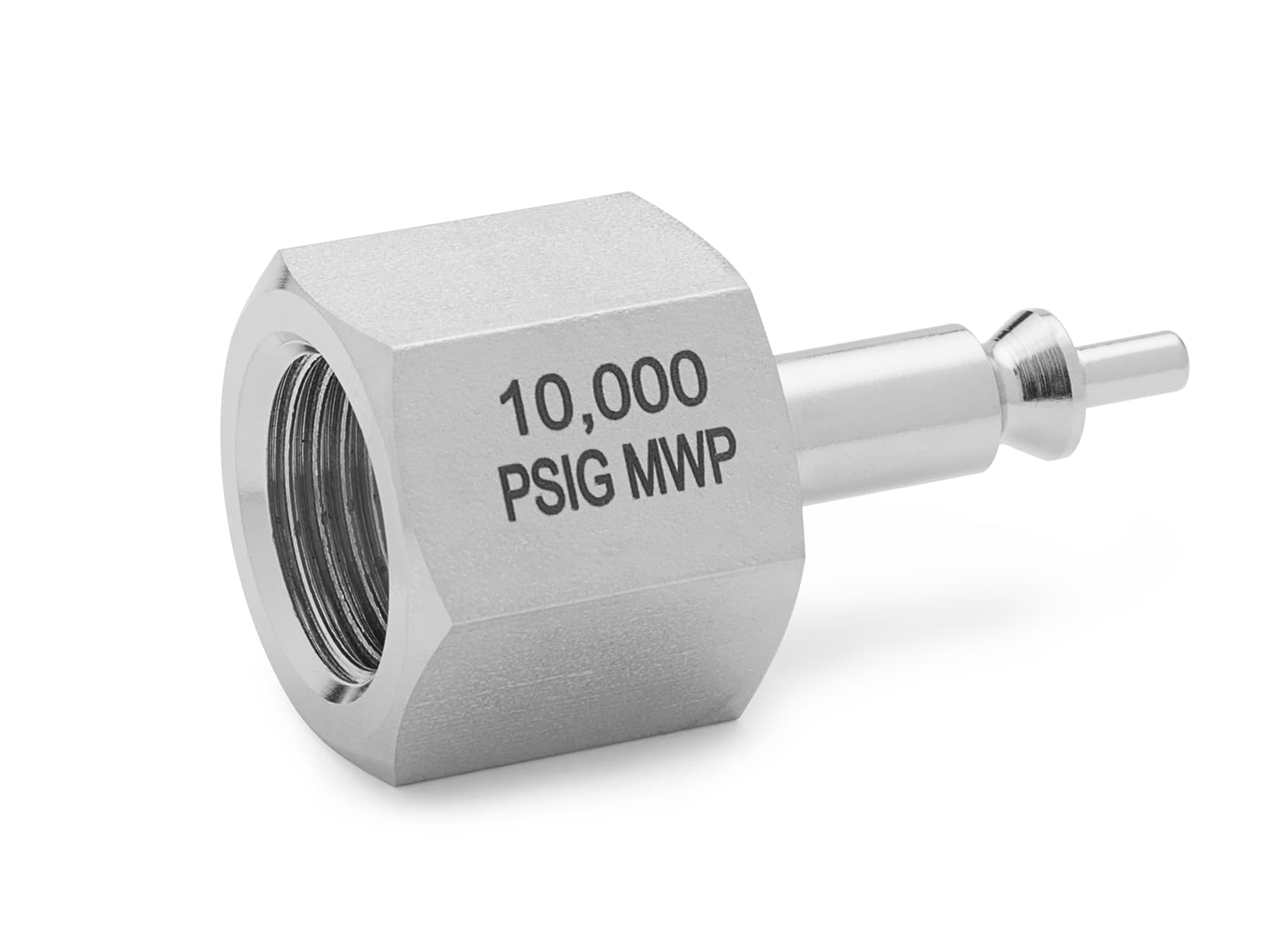

Part Number: USN0-4FNPT-MP

Male USN0 Probe x 1/2" Female NPT, 316 S.S.

Quick-connect rated to 10,000 psi. Self locking so when pressure increases above 50 psi the Quick-connect cannot be disassembled.

Specifications

Weight	2.94 oz / 83 grams
Length	2.32 in / 59 mm
Width	1.13 in / 29 mm
Height	1.29 in / 33 mm
Burst Pressure	40000 PSI / 2760 bar / 275 MPa
Country of origin	USA
Materials	316 Stainless Steel
Max Operating Temperature	200 °F / 93 °C
Max Pressure	10000 PSI / 700 bar / 70 MPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	-15 °F / -26 °C
Process Connection	1/2" Female NPT (ASME B1.20.1)
Wrench Size	1-1/8 In / 4.00 mm
Wrench Size	29 mm / 1 1/8 in
End 1 Connector	1/2" Female NPT (ASME B1.20.1)
End 1 Direction	Left
End 2 Connector	Male USN0 Probe
End 2 Direction	Left

Part Number: USN0-4FNPT-MP

Quick-connect rated to 10,000 psi. Self locking so when pressure increases above 50 psi the Quick-connect cannot be disassembled.

To receive pricing, request a quote and a Ralston Distributor will respond.
