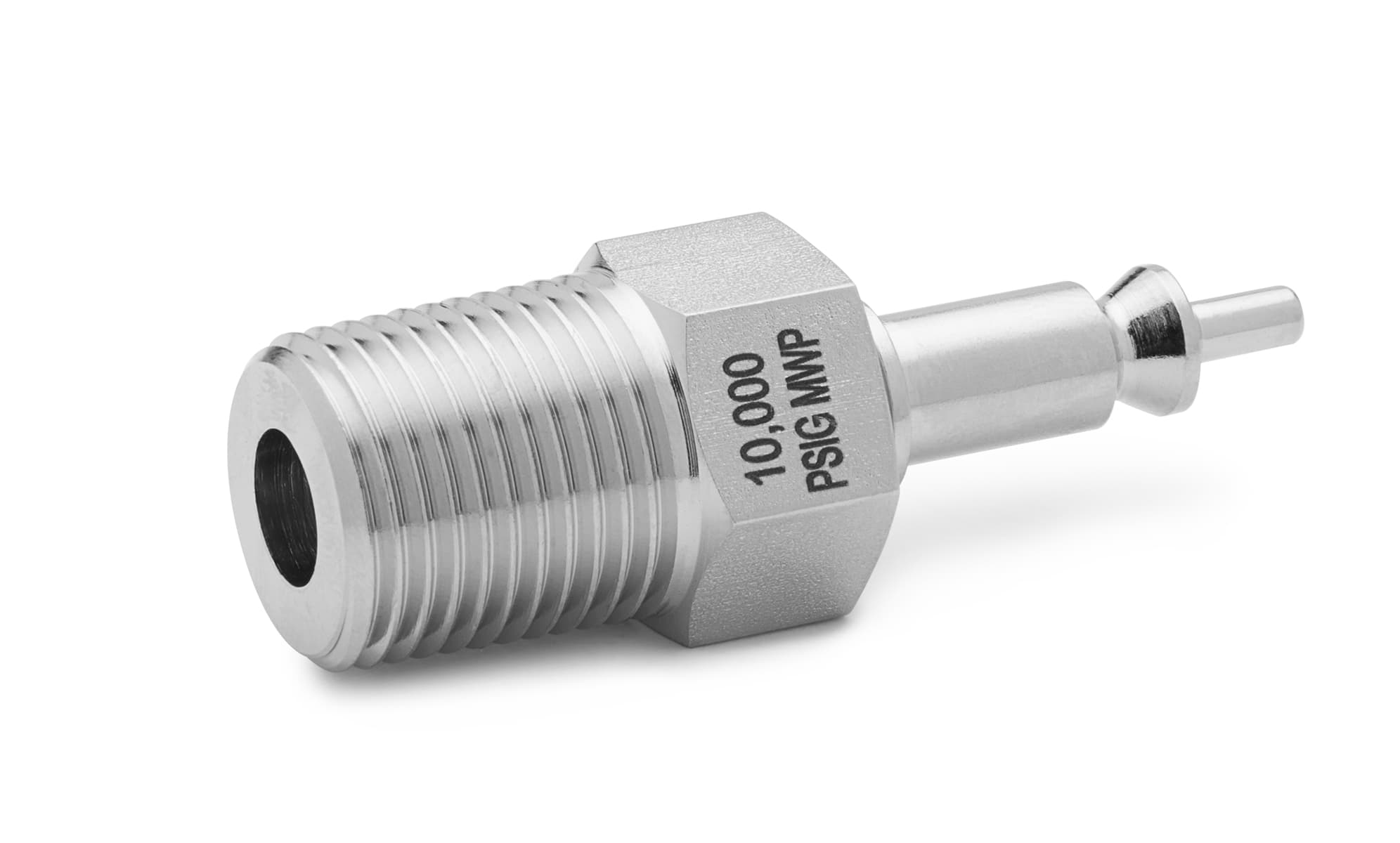

Part Number: USN0-4MNPT-MP
Male USN0 Probe x 1/2" Male NPT, 316 S.S.
Quick-connect rated to 10,000 psi. Self locking so when pressure increases above 50 psi the Quick-connect cannot be disassembled.
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 3.22 oz / 91 grams |
|---|---|
| Length | 2.72 in / 70 mm |
| Width | 0.88 in / 23 mm |
| Height | 1 in / 26 mm |
| Burst Pressure | 40000 PSI / 2760 bar / 275 MPa |
| Country of origin | USA |
| Materials | 316 Stainless Steel |
| Max Operating Temperature | 200 °F / 93 °C |
| Max Pressure | 10000 PSI / 700 bar / 70 MPa |
| Media Compatibility | Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water |
| Min Operating Temperature | -15 °F / -26 °C |
| Process Connection | 1/2" Male NPT (ASME B1.20.1) |
| Wrench Size | 7/8 In / 23 mm |
| Wrench Size | 22 mm / 27/32 in |
| End 1 Connector | 1/2" Male NPT (ASME B1.20.1) |
| End 1 Direction | Left |
| End 2 Connector | Male USN0 Probe |
| End 2 Direction | Left |
