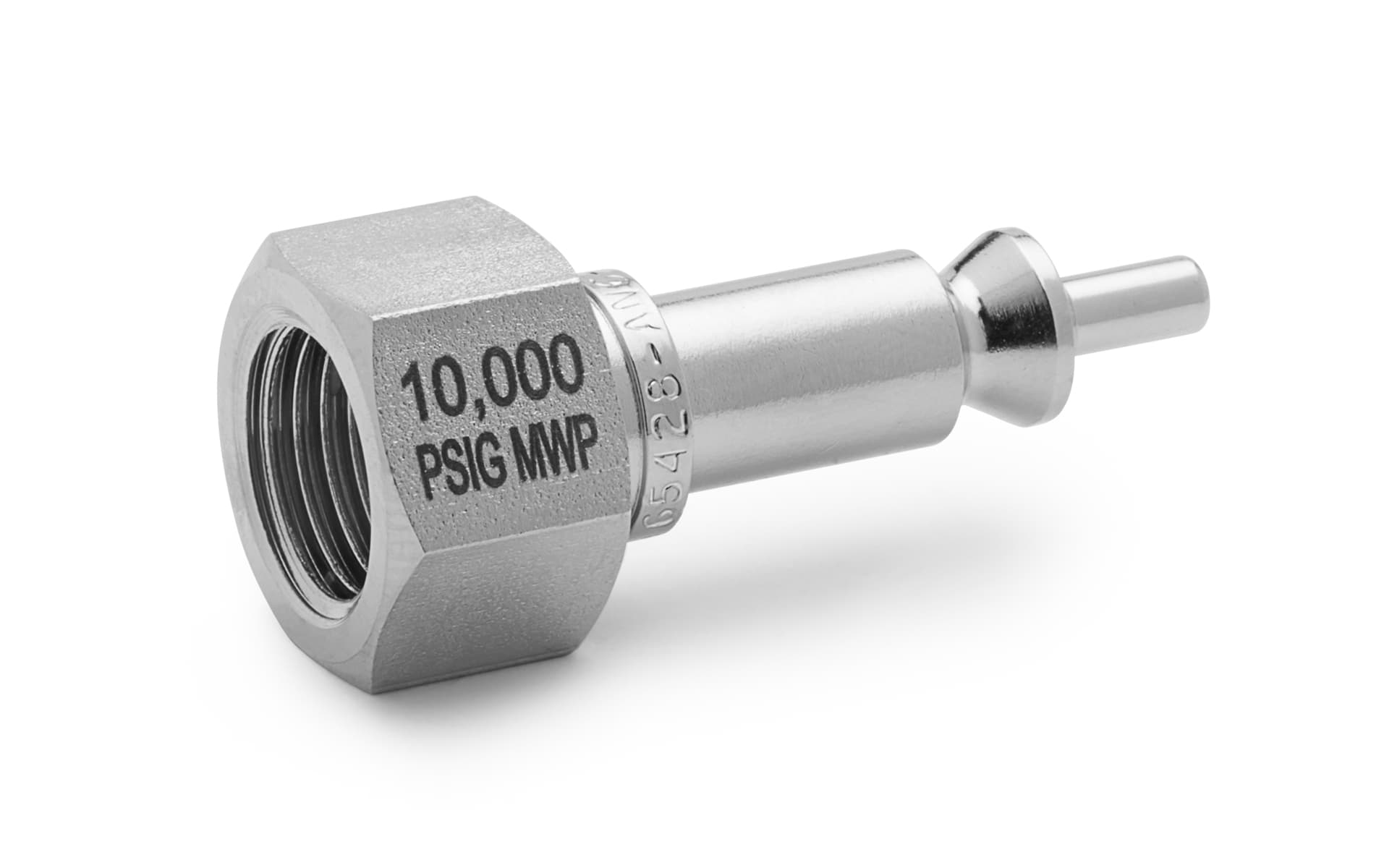

Part Number: USN0-6FAN-MP
Male USN0 Probe x Female AN6, 316 S.S.
Quick-connect rated to 10,000 psi. Self locking so when pressure increases above 50 psi the Quick-connect cannot be disassembled.
Specifications
| Weight | 1.1 oz / 31 grams |
|---|---|
| Length | 1.88 in / 48 mm |
| Width | 0.75 in / 20 mm |
| Height | 0.85 in / 22 mm |
| Burst Pressure | 40000 PSI / 2760 bar / 275 MPa |
| Country of origin | USA |
| Materials | 316 Stainless Steel |
| Max Operating Temperature | 200 °F / 93 °C |
| Max Pressure | 10000 PSI / 700 bar / 70 MPa |
| Media Compatibility | Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water |
| Min Operating Temperature | -15 °F / -26 °C |
| Process Connection | AN -6 (9/16"-18 thread) Female 37 degree (AN/JIC) Flare |
| Wrench Size | 3/4 In / 20 mm |
| Wrench Size | 19 mm / 23/32 in |
| End 1 Connector | AN -6 (9/16"-18 thread) Female 37 degree (AN/JIC) Flare |
| End 1 Direction | Left |
| End 2 Connector | Male USN0 Probe |
| End 2 Direction | Left |
