Part Number: USN0-MCAP

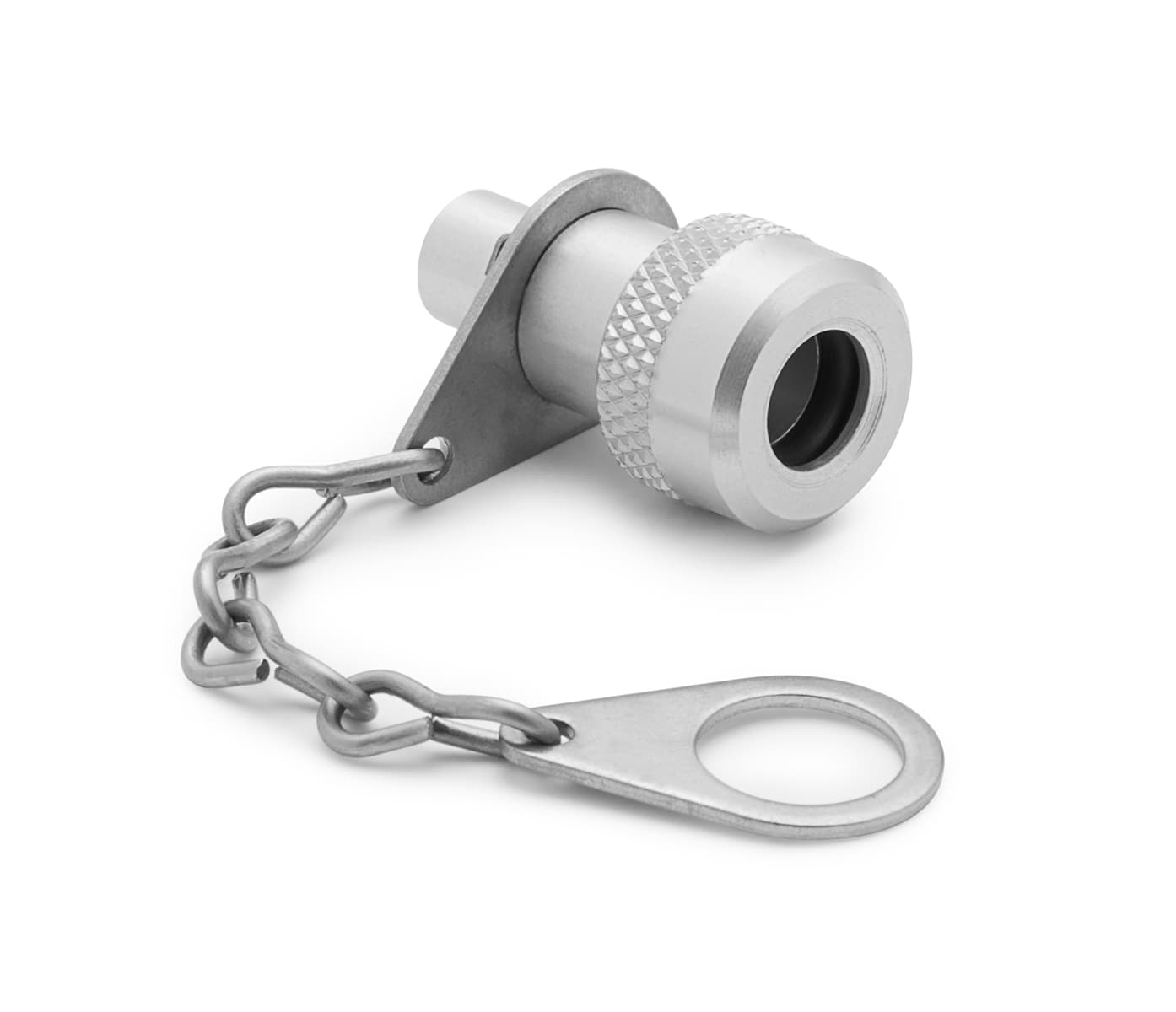

Cap for Male QC probe with tether and 4 links of chain

Quick-connect rated to 10,000 psi. Self locking so when pressure increases above 50 psi the Quick-connect cannot be disassembled.

Specifications

Weight	1.32 oz / 37 grams
Length	2.41 in / 62 mm
Width	0.63 in / 17 mm
Height	0.68 in / 18 mm
Burst Pressure	40000 PSI / 2760 bar / 275 MPa
Country of origin	USA
Materials	316 Stainless Steel, Anodized Aluminum
Max Operating Temperature	200 °F / 93 °C
Max Pressure	10000 PSI / 700 bar / 70 MPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	-15 °F / -26 °C
End 1 Connector	9/16-18 (1/4" HM4) Male High Pressure
End 1 Direction	Left
End 2 Connector	Male USN0 Probe
End 2 Direction	Left

Part Number: USN0-MCAP

Quick-connect rated to 10,000 psi. Self locking so when pressure increases above 50 psi the Quick-connect cannot be disassembled.

To receive pricing, request a quote and a Ralston Distributor will respond.
