Replacement Gauge Swivels

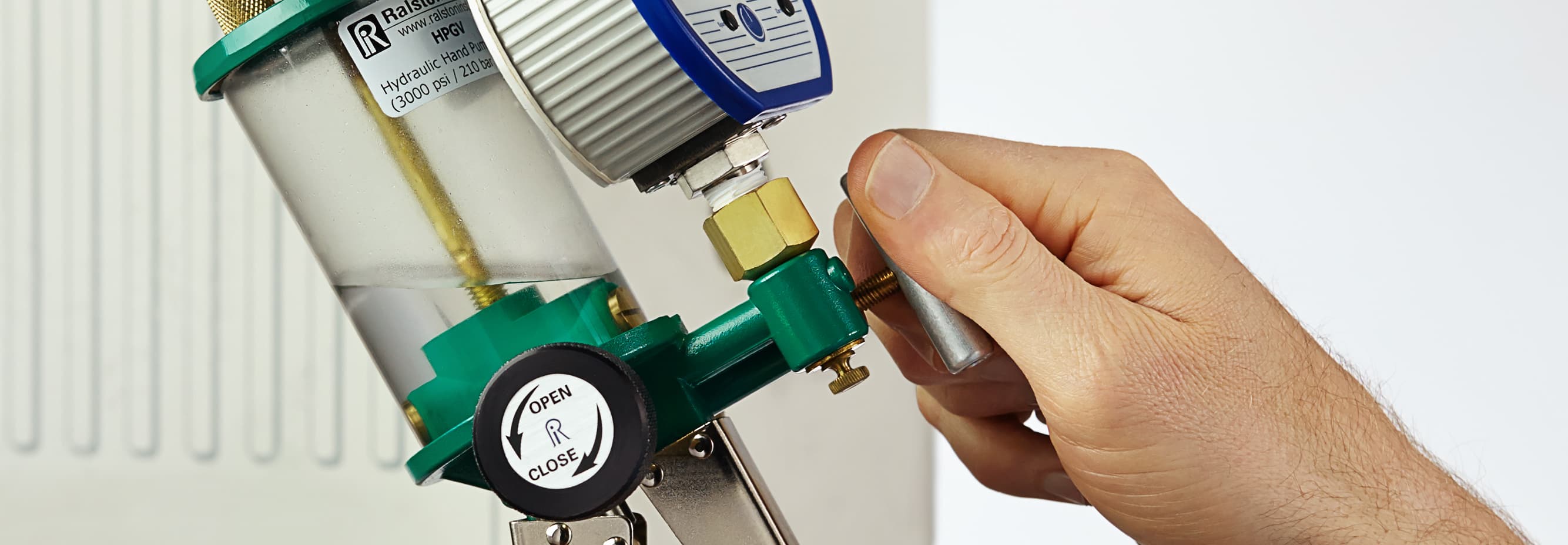

Use to mount gauges on Ralston Instruments model APGV, HPGV, XHGV hand pumps
- Swivels allow the user to easily switch gauges on a single hand pump
- Made in USA
Replacement Gauge Swivel Models
| Model | Max Pressure | Materials | Seal Materials | End 2 Quick Disconnect | Wrench Size | Wrench Size | End 1 Connector | End 2 Connector |
|---|---|---|---|---|---|---|---|---|

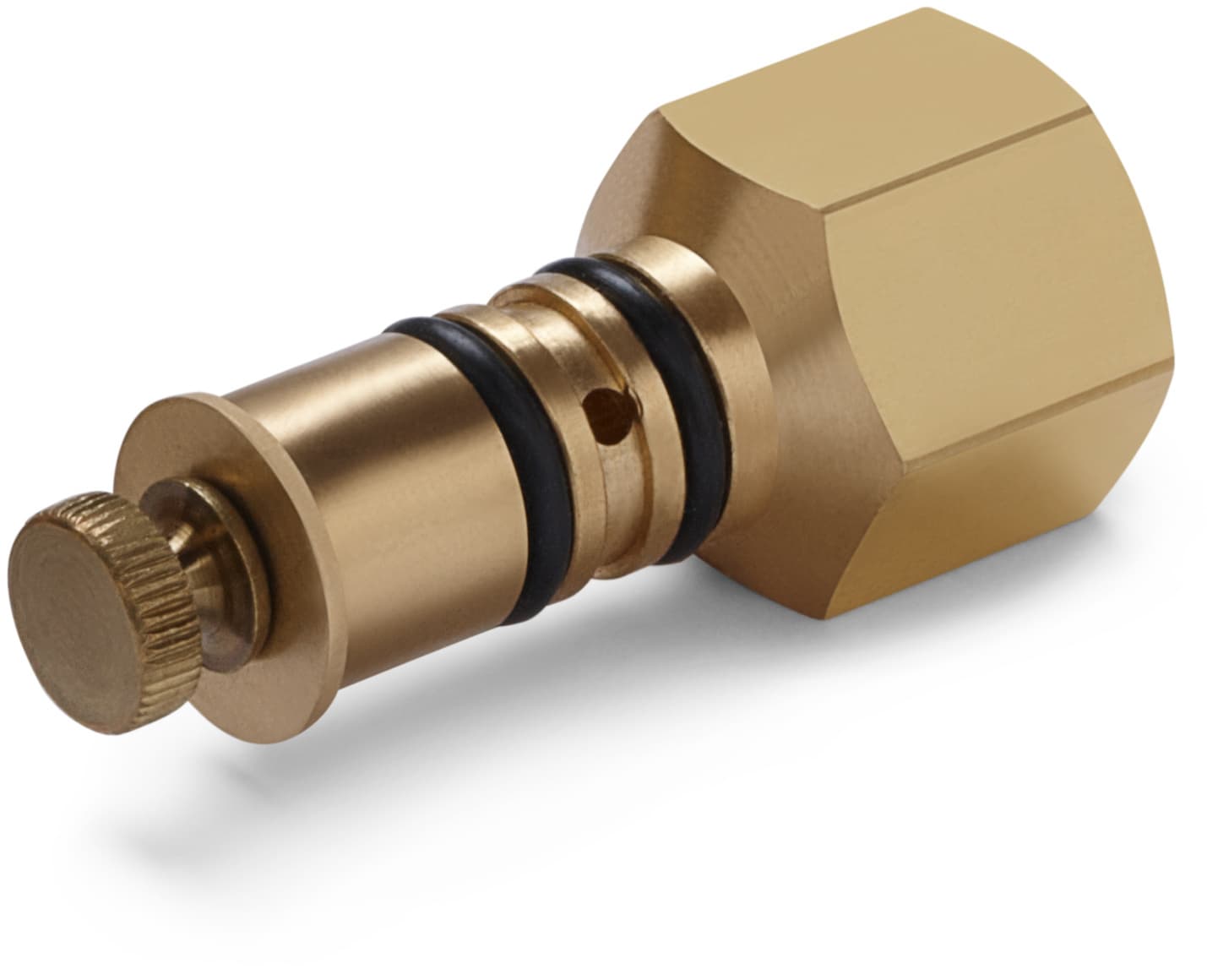

| SWIV-2FBW | 5000 PSI / 350 bar / 35 MPa | Brass | Buna-N | No | 3/4 In / 20 mm | 19 mm / 23/32 in | 1/4" Female NPT (ASME B1.20.1) | Male Gauge Swivel |
| SWIV-4GBW | 5000 PSI / 350 bar / 35 MPa | Brass | Buna-N | No | 1-1/16 In / 2.00 mm | 27 mm / 1 1/16 in | G 1/2 Female BSPP (ISO 228) | Male Gauge Swivel |
| SWIV-QTBW | 5000 PSI / 350 bar / 35 MPa | Brass | Buna-N | No | 9/16 In / 15 mm | 15 mm / 9/16 in | Male Quick-test | Male Gauge Swivel |
WARNING: Products containing Brass can expose you to chemicals, including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
