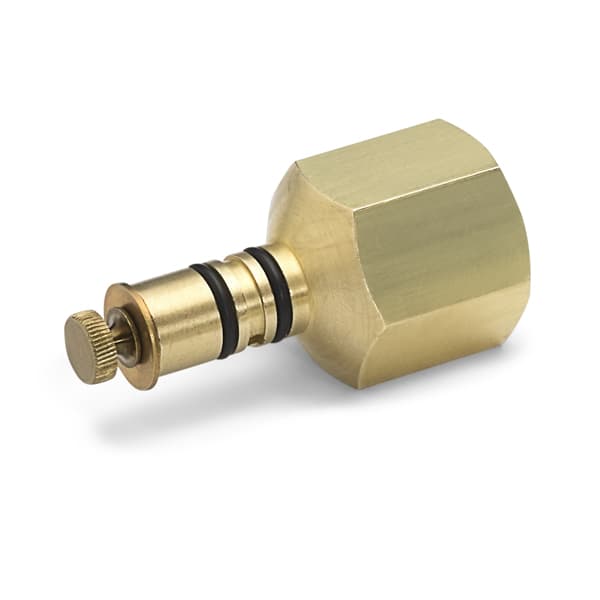

Part Number: SWIV-4GBW
1/2" female BSPP swivel, brass
Use to mount gauges on Ralston Instruments model APGV, HPGV, XHGV hand pumps
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 4.26 oz / 120 grams |
|---|---|
| Length | 2.42 in / 62 mm |
| Width | 1.23 in / 32 mm |
| Height | 1.23 in / 32 mm |
| Country of origin | USA |
| Materials | Brass |
| Max Operating Temperature | 225 °F / 105 °C |
| Max Pressure | 5000 PSI / 350 bar / 35 MPa |
| Max Vacuum | 0 InHg / 0.0 kPa |
| Seal Materials | Buna-N |
| Wrench Size | 1-1/16 In / 2.00 mm |
| Wrench Size | 27 mm / 1 1/16 in |
| End 1 Connector | G 1/2 Female BSPP (ISO 228) |
| End 1 Direction | Left |
| End 2 Connector | Male Gauge Swivel |
| End 2 Direction | Left |
