Test Points for checking systems under pressure

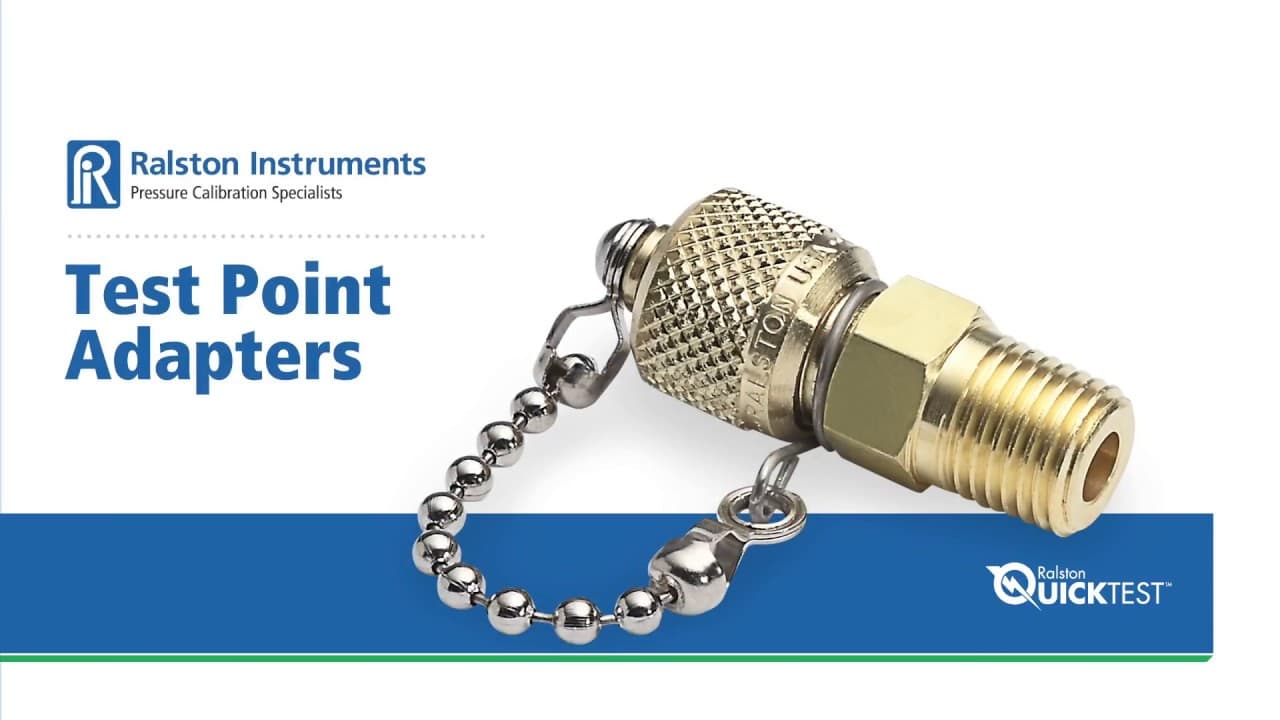

Test Point Adapters

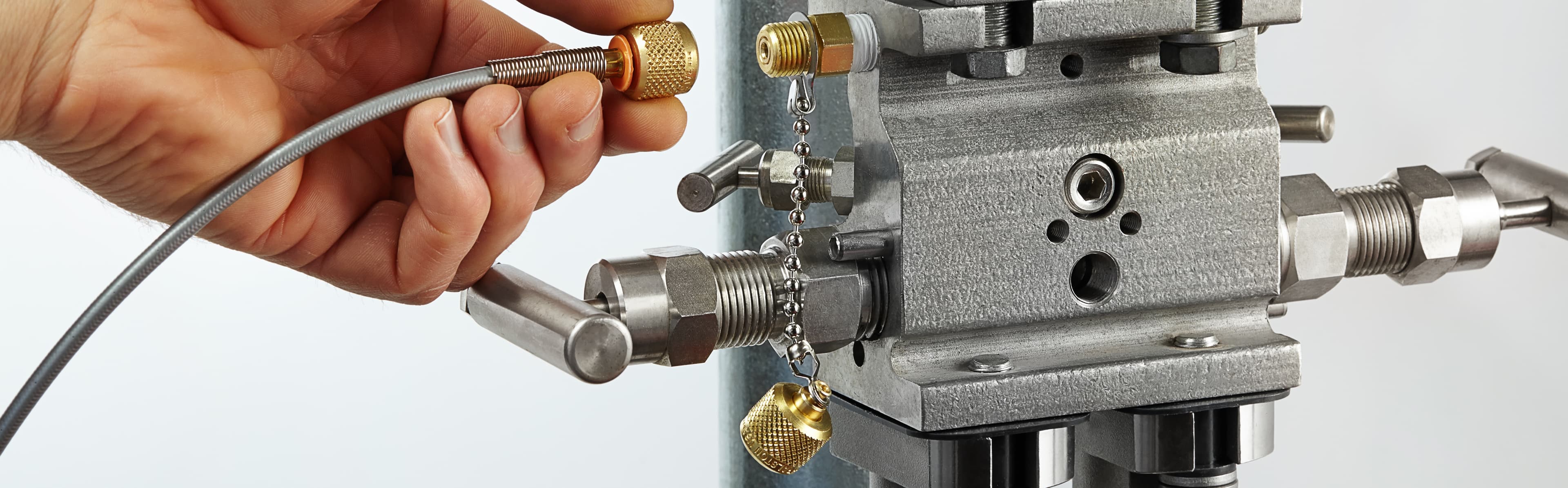

Excellent for connecting to hydraulic or pneumatic systems that are under pressure

NPT Test Point Adapters

Excellent for connecting to hydraulic or pneumatic systems that are under pressure

Model Max Pressure End 1 Connector End 2 Connector Quick-connect Has Check Valve Cap and Chain Bulkhead Materials
QTHA-1MB1 3000 PSI / 205 bar / 21 MPa 1/8" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Brass
QTFT-1MB1 3000 PSI / 205 bar / 21 MPa 1/8" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Brass
QTHA-1MS1 3000 PSI / 205 bar / 21 MPa 1/8" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Stainless Steel
QTFT-1MS1 3000 PSI / 205 bar / 21 MPa 1/8" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Stainless Steel
QTHA-2MB1 3000 PSI / 205 bar / 21 MPa 1/4" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Brass
QTHA-2MS1 3000 PSI / 205 bar / 21 MPa 1/4" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Stainless Steel
QTFT-2MS1 3000 PSI / 205 bar / 21 MPa 1/4" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Stainless Steel
QTFT-2MB1 3000 PSI / 205 bar / 21 MPa 1/4" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Brass
QTHA-3MB1 3000 PSI / 205 bar / 21 MPa 3/8" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Brass
QTFT-3MB1 3000 PSI / 205 bar / 21 MPa 3/8" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Brass
QTHA-3MS1 3000 PSI / 205 bar / 21 MPa 3/8" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Stainless Steel
QTFT-3MS1 3000 PSI / 205 bar / 21 MPa 3/8" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Stainless Steel
QTHA-4MS1 3000 PSI / 205 bar / 21 MPa 1/2" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Stainless Steel
QTFT-4MS1 3000 PSI / 205 bar / 21 MPa 1/2" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Stainless Steel
QTHA-4MB1 3000 PSI / 205 bar / 21 MPa 1/2" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Brass
QTFT-4MB1 3000 PSI / 205 bar / 21 MPa 1/2" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Brass
QTHA-6MB1 3000 PSI / 205 bar / 21 MPa 3/4" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Brass
QTFT-6MB1 3000 PSI / 205 bar / 21 MPa 3/4" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Brass

BSPT Test Point Adapters

Ideal for connecting to hydraulic or pneumatic systems with BSPT connections that are under pressure

Model Max Pressure End 1 Connector End 2 Connector Quick-connect Has Check Valve Cap and Chain Bulkhead Materials
QTHA-1MB1-RT 3000 PSI / 205 bar / 21 MPa 1/8" Male BSPT (ISO 7) Male Quick-test No Yes No No Brass
QTFT-1MB1-RT 3000 PSI / 205 bar / 21 MPa 1/8" Male BSPT (ISO 7) Male Quick-test No Yes No No Brass
QTHA-2MB1-RT 3000 PSI / 205 bar / 21 MPa 1/4" Male BSPT (ISO 7) Male Quick-test No Yes No No Brass
QTFT-2MB1-RT 3000 PSI / 205 bar / 21 MPa 1/4" Male BSPT (ISO 7) Male Quick-test No Yes No No Brass
