Part Number: QTFT-HTBB-2T

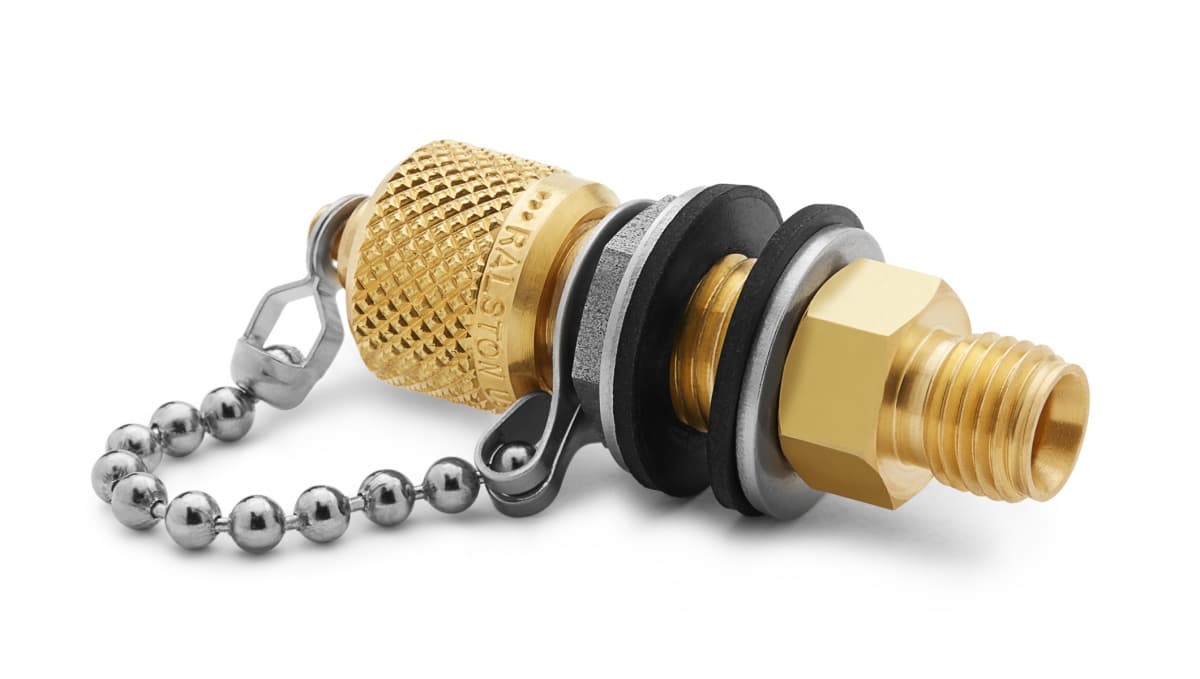

1/4" tube fitting x male Quick-test bulkhead union, with cap and chain, brass

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Connect to a Quick-test hose on one side and a tube fitting on the other

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	2.42 oz / 69 grams
Length	2.35 in / 60 mm
Width	0.56 in / 15 mm
Height	0.56 in / 15 mm
Country of origin	USA
Materials	Brass
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	9/16 In / 15 mm
Wrench Size	15 mm / 9/16 in
End 1 Connector	1/4" Female Tube Fitting
End 1 Bulkhead Seal	Yes
End 1 Cap and Chain	Yes
End 1 Direction	Left
End 2 Connector	Male Quick-test
End 2 Direction	Left
