Part Number: QTHA-HTBB-2T

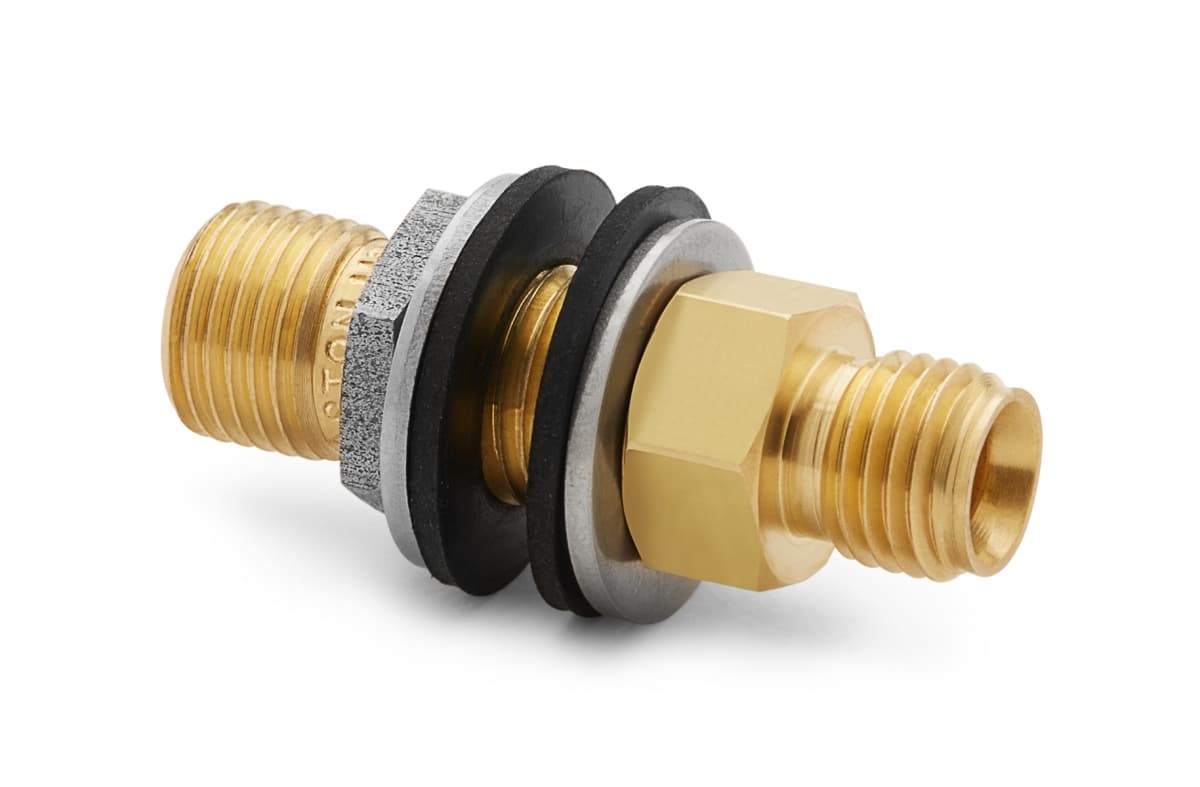

1/4" tube fitting x male Quick-test bulkhead union, brass

Connect a Quick-test hose to a tube fitting through a wall or control panel

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Specifications

Weight1.52 oz / 43 grams
Length1.85 in / 47 mm
Width0.87 in / 23 mm
Height0.87 in / 23 mm
Country of originUSA
MaterialsBrass
Max Operating Temperature225 °F / 105 °C
Max Pressure5000 PSI / 350 bar / 35 MPa
Min Operating Temperature0 °F / -18 °C
Seal MaterialsBuna-N
Wrench Size9/16 In / 15 mm
Wrench Size15 mm / 9/16 in
End 1 Connector
1/4" Female Tube Fitting
End 1 Bulkhead SealYes
End 1 DirectionLeft
End 2 Connector
Male Quick-test
End 2 DirectionLeft
