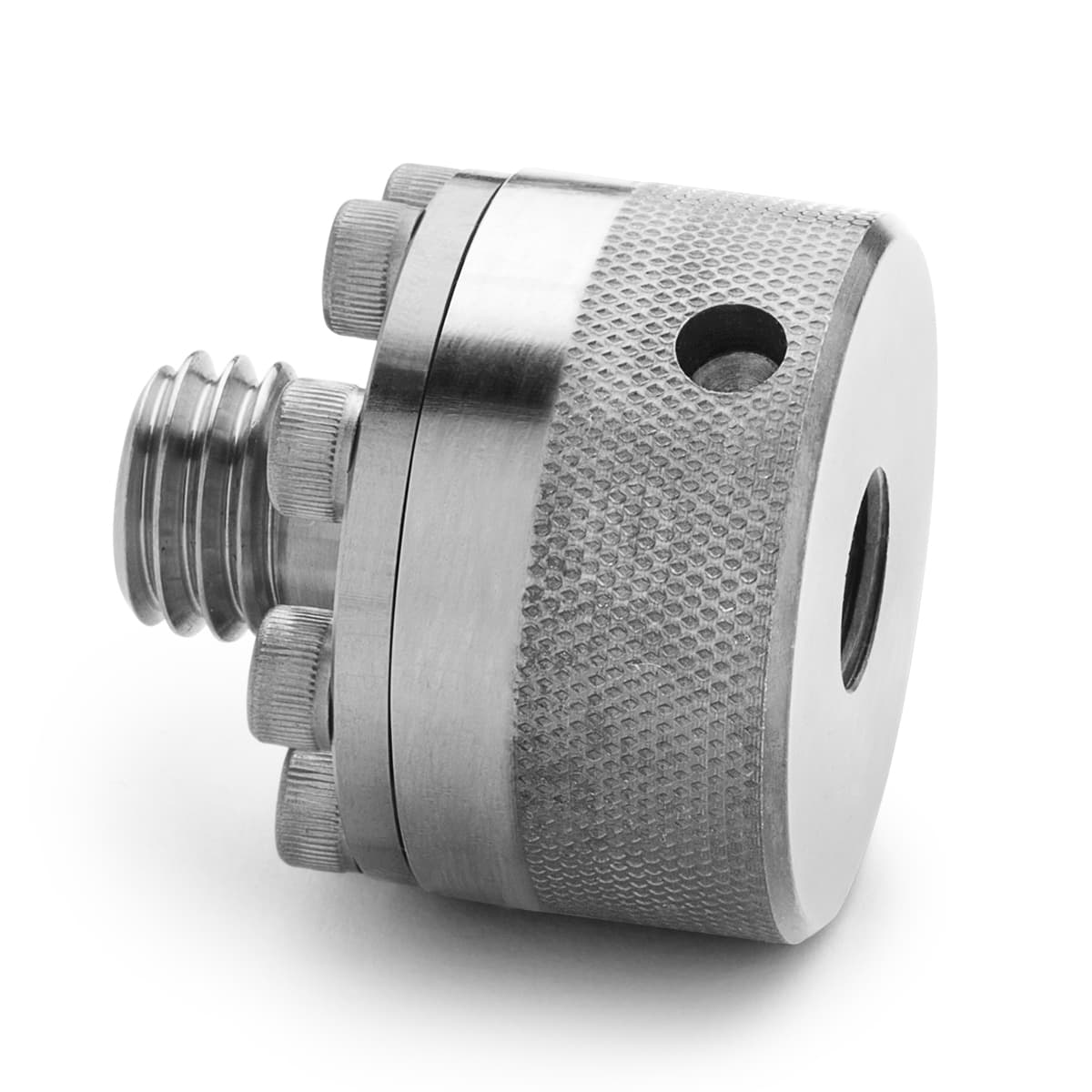

Part Number: XTHA-2FSF-QD

Female 37 degree flare (AN/JIC) x male Quick-test, no check-valve, S.S.

Connect a male 37° flare AN/JIC fitting to a Quick-test hose without a wrench

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote
Download DatasheetNeed help? Contact Us

Specifications

Weight6.13 oz / 175 grams
Length1.74 in / 45 mm
Width1.4 in / 36 mm
Height1.4 in / 36 mm
Country of originUSA
Dimensions A0 In / 0.00 mm
Dimensions B0 In / 0.00 mm
MaterialsStainless Steel
Max Operating Temperature140 °F / 60 °C
Max Pressure15000 PSI / 1000 bar / 100 MPa
Min Operating Temperature0 °F / -18 °C
Seal MaterialsTeflon, Viton
End 1 Connector
1/4"(-4) Female 37 degree (AN/JIC) Flare
End 1 Quick DisconnectYes
End 1 DirectionLeft
End 2 Connector
Male Quick-test XT
End 2 DirectionLeft
