BSPP Male (RS) Quick-test Fittings

Connect Female BSPP (ISO 228/1) parallel thread to Quick-test hose for permanent installation where frequent calibrations are performed

  • Connect Quick-test hoses to any Female BSPP device such as Druck, SI, Fluke or other hand pumps or pressure calibrators

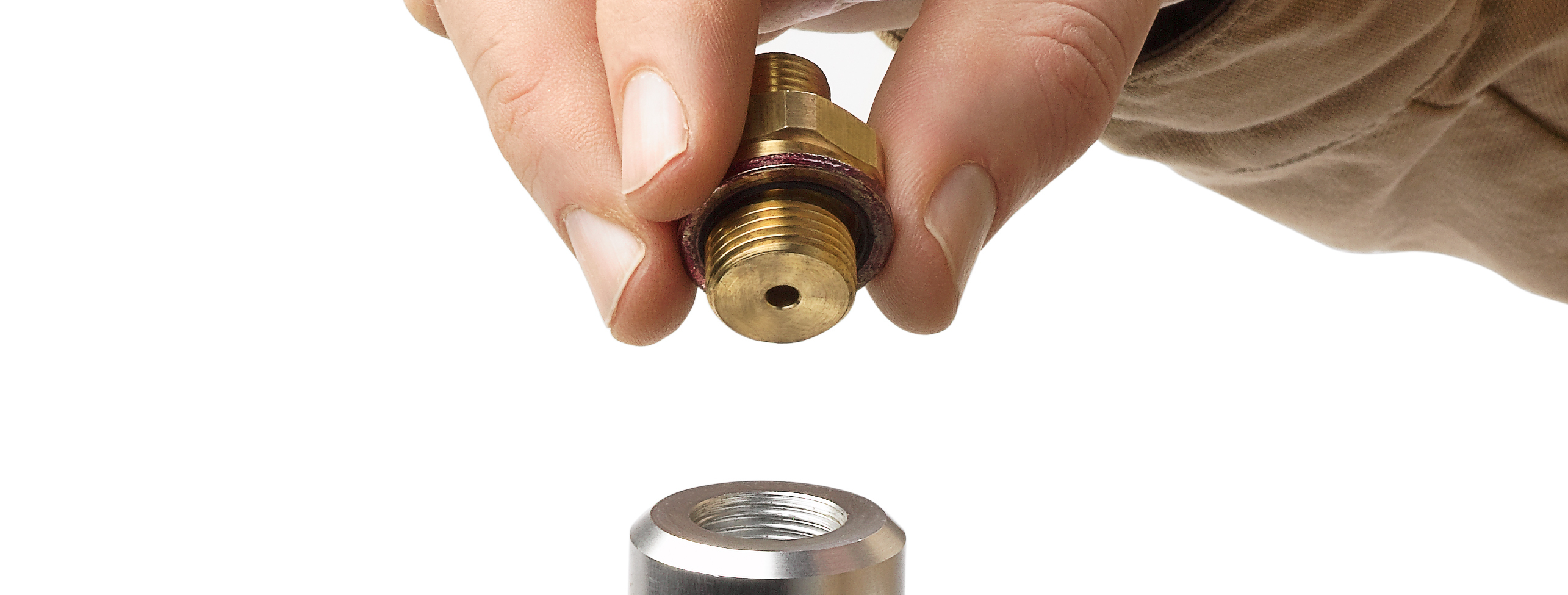

  • Pressure tight seal is made on a bonded seal ring

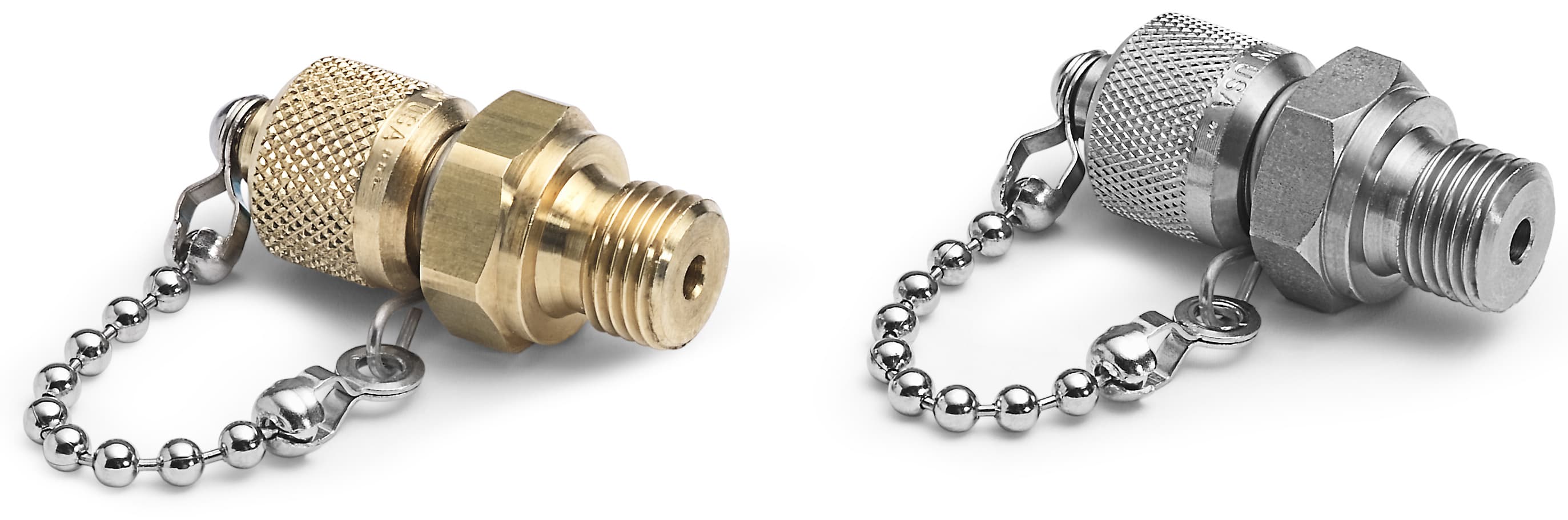

  • A cap and chain make permanent installation possible on any process with Female BSPP connections
  • Made in USA

BSPP Male (RS) Quick-test Fittings

Model Max Pressure Connection Connection Quick-connect Cap and Chain Bulkhead Materials
QTFT-1MB0-RS 5000 PSI / 350 bar / 35 MPa Male Quick-test G 1/8 Male BSPP (ISO 228) No Yes No Brass
QTFT-2MB0-RS 5000 PSI / 350 bar / 35 MPa Male Quick-test G 1/4 Male BSPP (ISO 228) No Yes No Brass
QTFT-2MS0-RS 5000 PSI / 350 bar / 35 MPa Male Quick-test G 1/4 Male BSPP (ISO 228) No Yes No Brass
QTFT-3MB0-RS 5000 PSI / 350 bar / 35 MPa Male Quick-test G 3/8 Male BSPP (ISO 228) No Yes No Brass

Bonded Seals for BSPP Male (RS) Quick-test Fittings

1/8" male RS bonded seal ring, steel and Buna-N

QTHA-1BR-RS

Caps, bonded seals and copper washers provide replacement seals for adapters

1/4" male RS bonded seal ring, steel and Buna-N

QTHA-2BR-RS

Caps, bonded seals and copper washers provide replacement seals for adapters

3/8" male RS bonded seal ring, steel and Buna-N

QTHA-3BR-RS

Caps, bonded seals and copper washers provide replacement seals for adapters

1/2" male RS bonded seal ring, steel and Buna-N

QTHA-4BR-RS

Caps, bonded seals and copper washers provide replacement seals for adapters
