Ralston Universal Quick-test Hose and Adapter Kits Make Connections a Snap

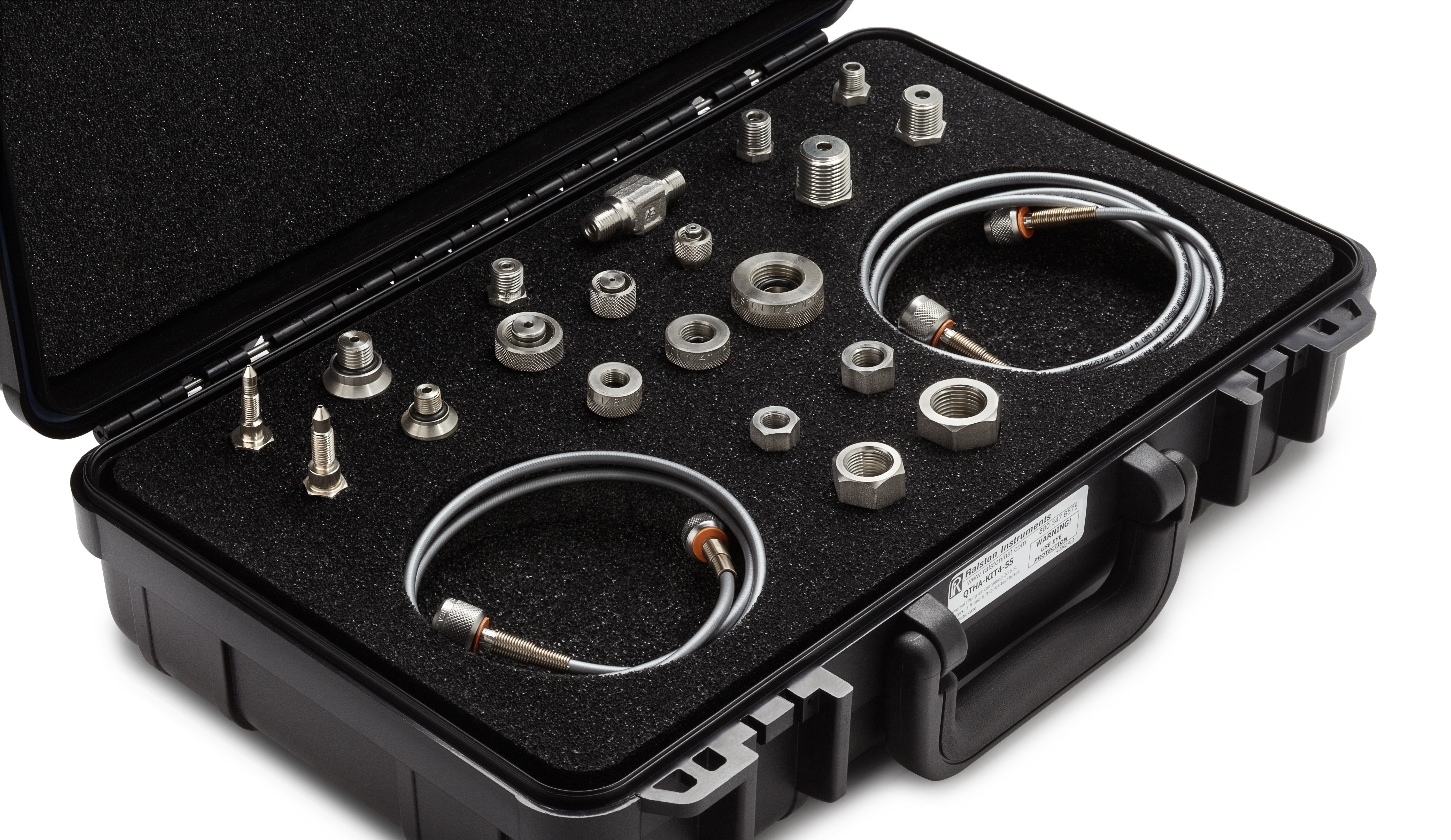

Simplify your pressure calibration job by taking the guesswork out of selecting adapters. These pre-built kits include all the necessary fittings and hoses to connect to any pressure transmitter, gauge or manifold in the field. The kit is available in an economical Brass version as well as an all Stainless Steel version and includes:

  • 20 adapters and 2 hoses that cover the vast majority of connections seen in the field.
  • Sturdy, high impact ABS case keeping everything organized instead of digging around in the bottom of a bag or toolbox.
  • Foam insert that holds all hoses and adapters in a clearly visible position making it easy to see if you have something missing also protecting adapter threads from damage away from contamination that could cause leakage in the field.

Kit Contents:

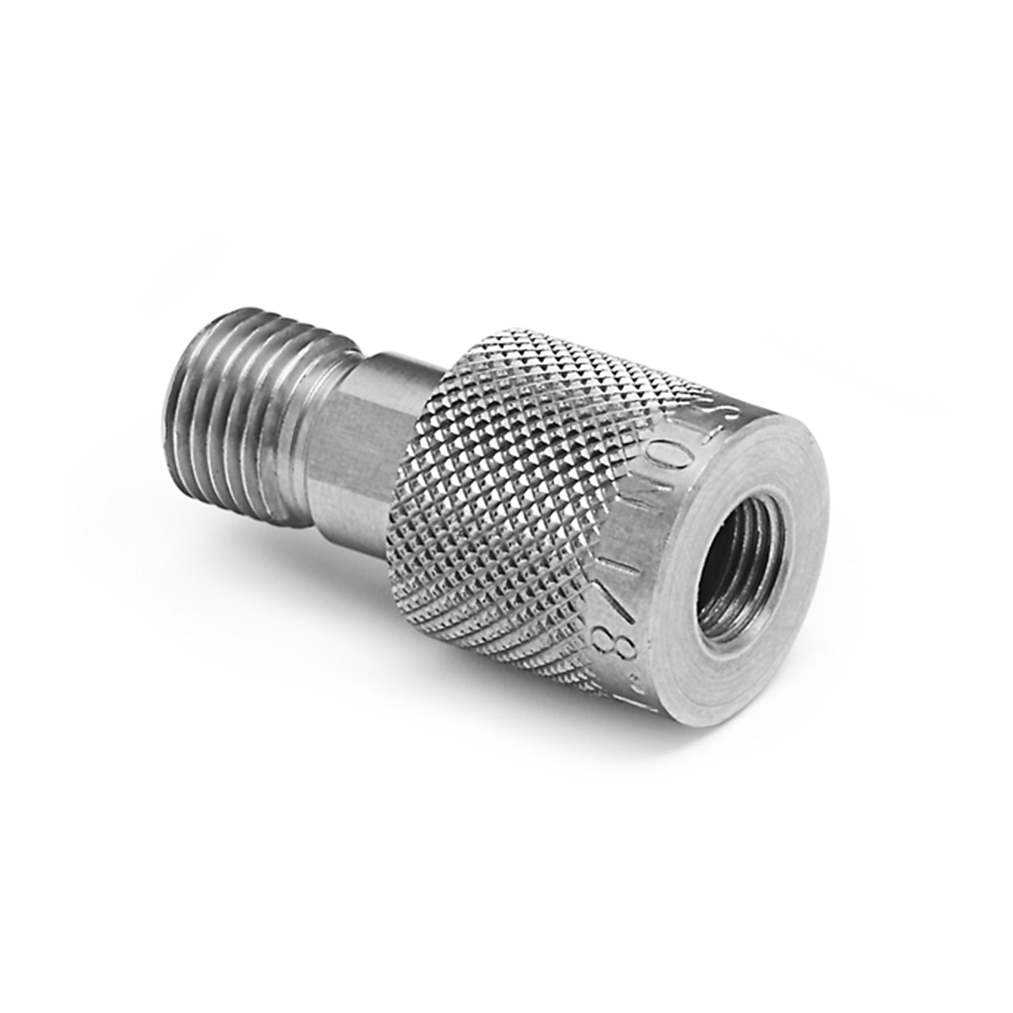

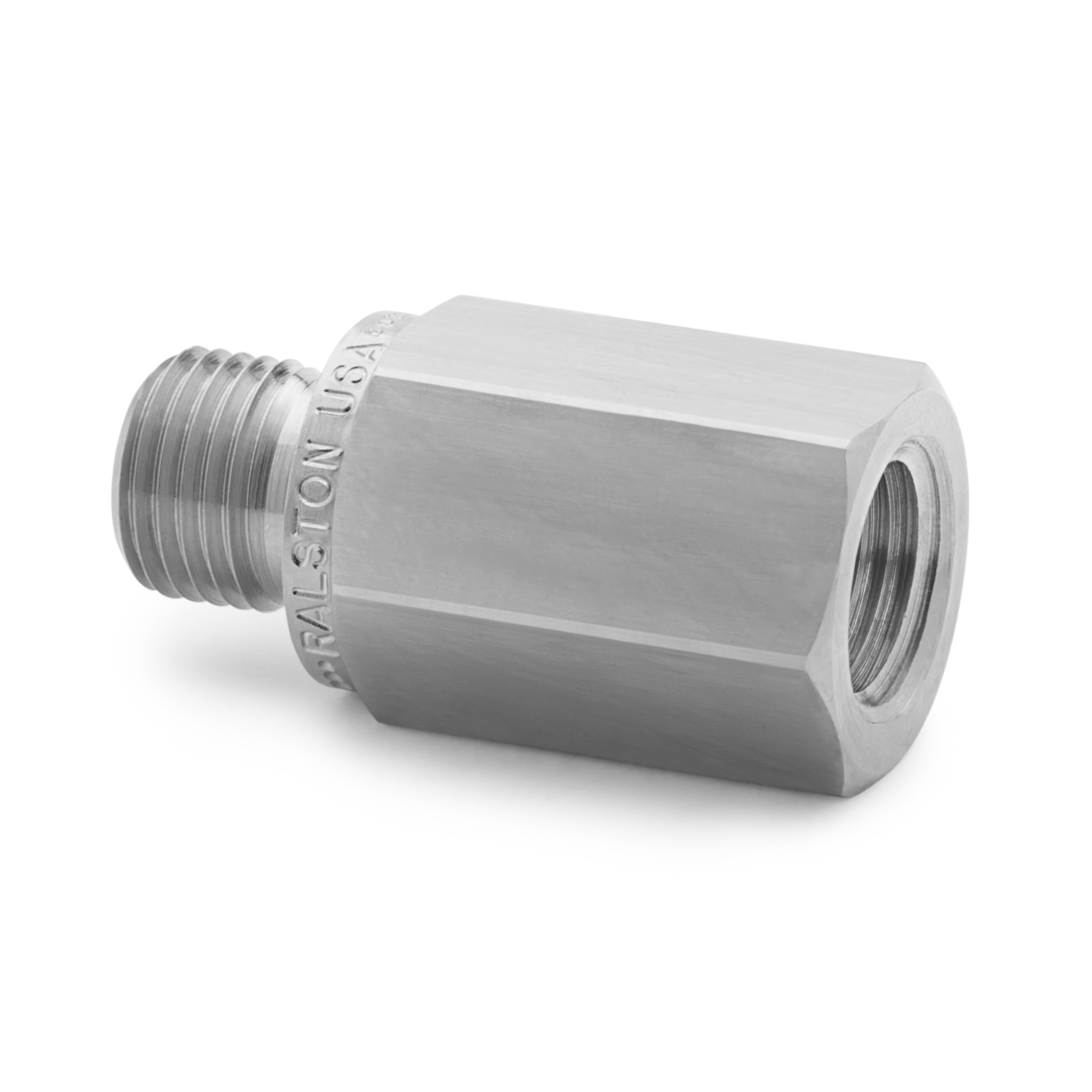

NPT Female Quick-test Adapters

Female NPT x male Quick-test, no check-valve

Sizes: 1/8, 1/4", 3/8", 1/2"

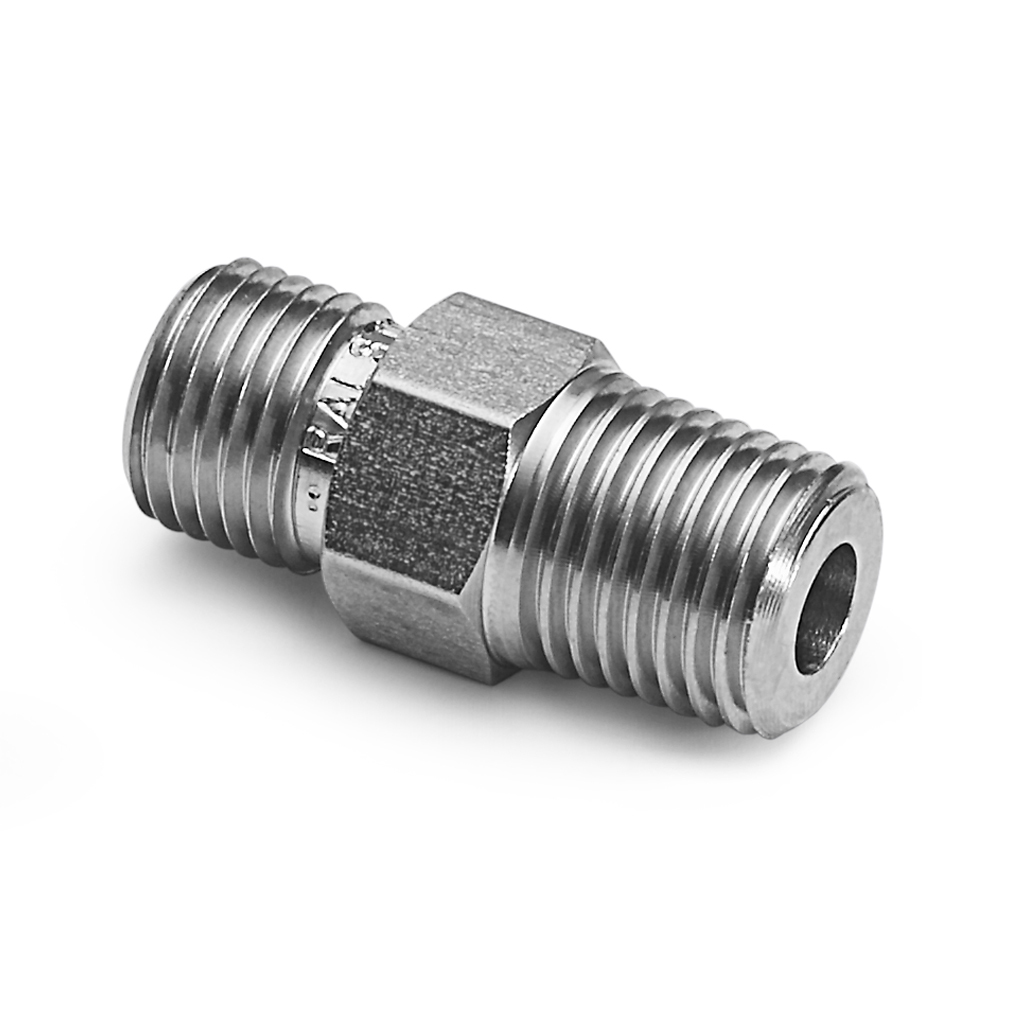

Male NPT Quick-test Adapters

Male NPT x male Quick-test, no check-valve

Sizes: 1/8, 1/4", 3/8", 1/2"

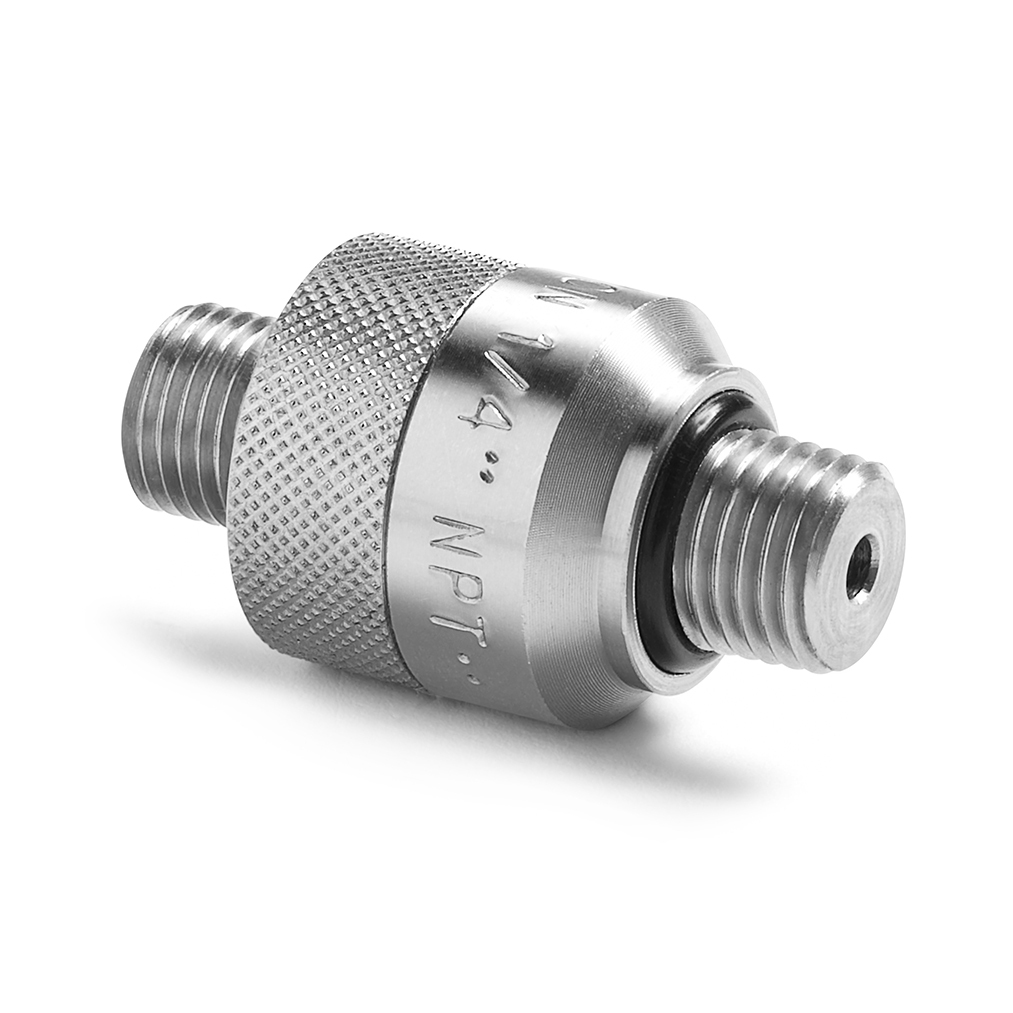

Male NPT Quick-connect Quick-test Adapters

Male NPT QD (Quick-connect) Adapter

Sizes: 1/8, 1/4"

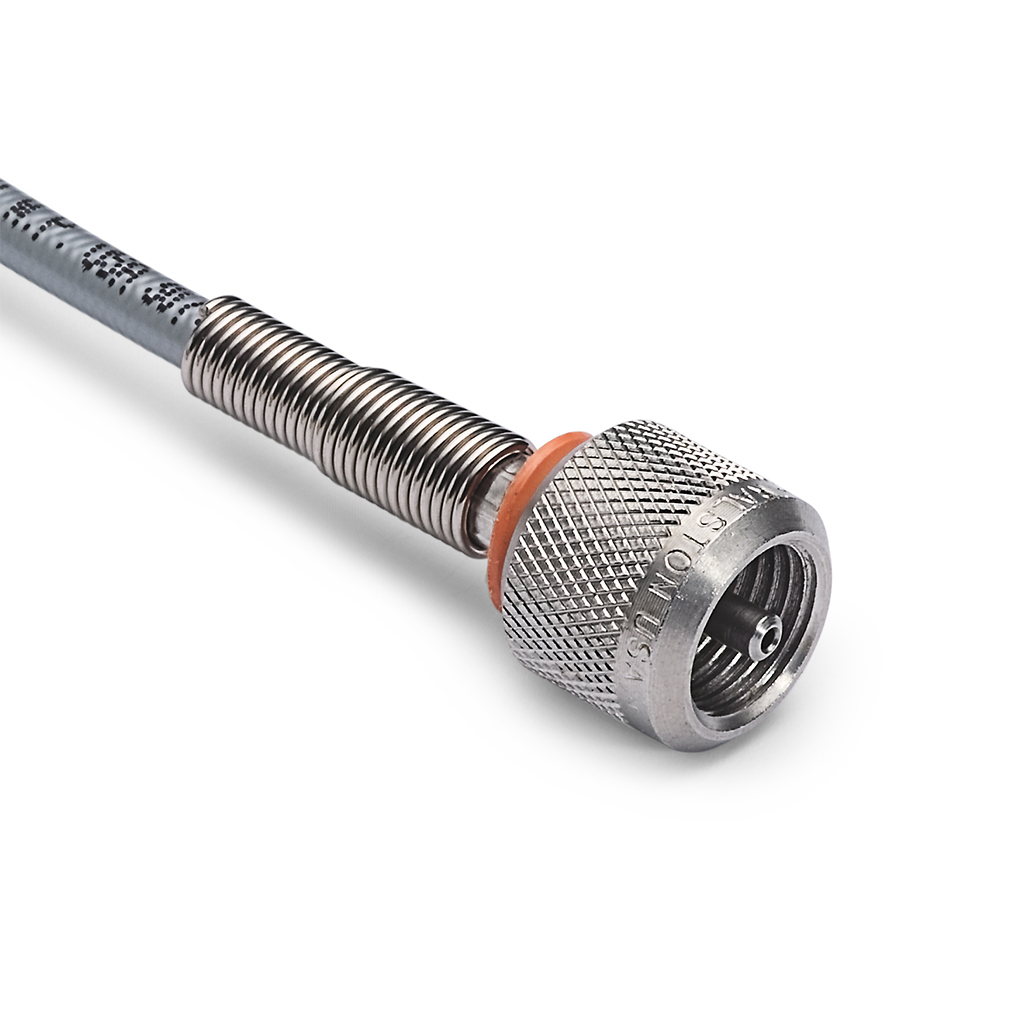

Quick-test Hoses

Quick-test 6900 psi hose

Sizes: 3 ft (92 cm), 6 ft (1.83 m)

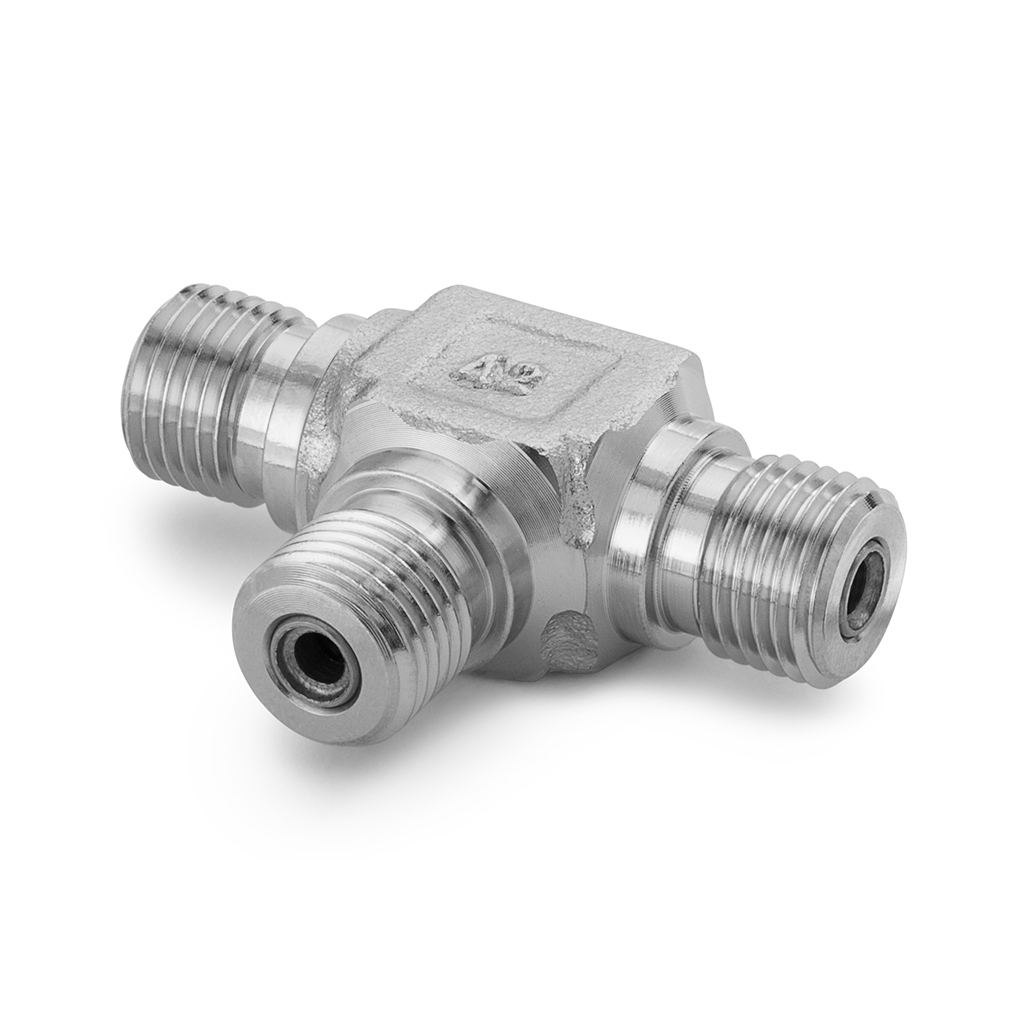

Quick-test Tee

Male Quick-test run x male Quick-test run x male Quick-test branch tee, brass

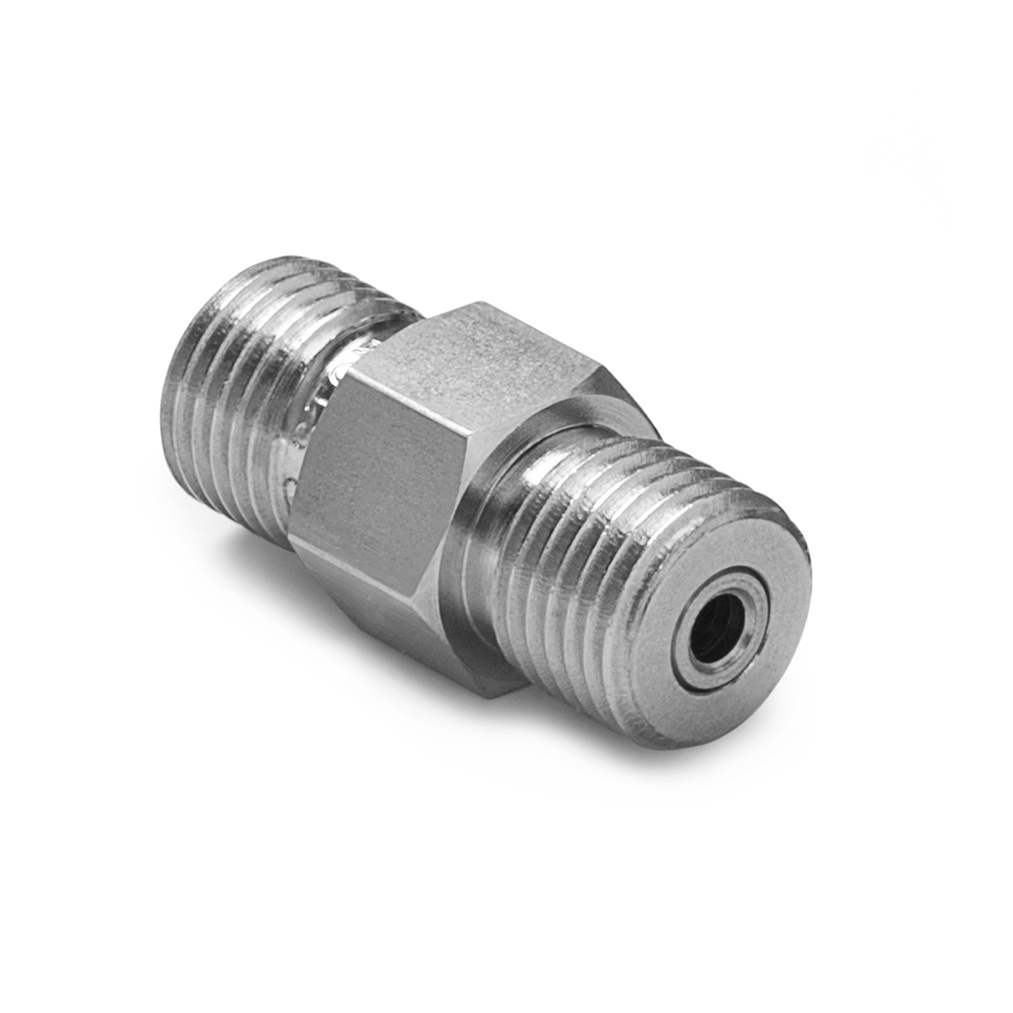

Quick-test Union

Male Quick-test x male Quick-test hose union

Female NPT Quick-connect Quick-test Adapters

Female NPT Quick-connect x male Quick-test, no check-valve

Sizes: 1/8, 1/4", 1/2"

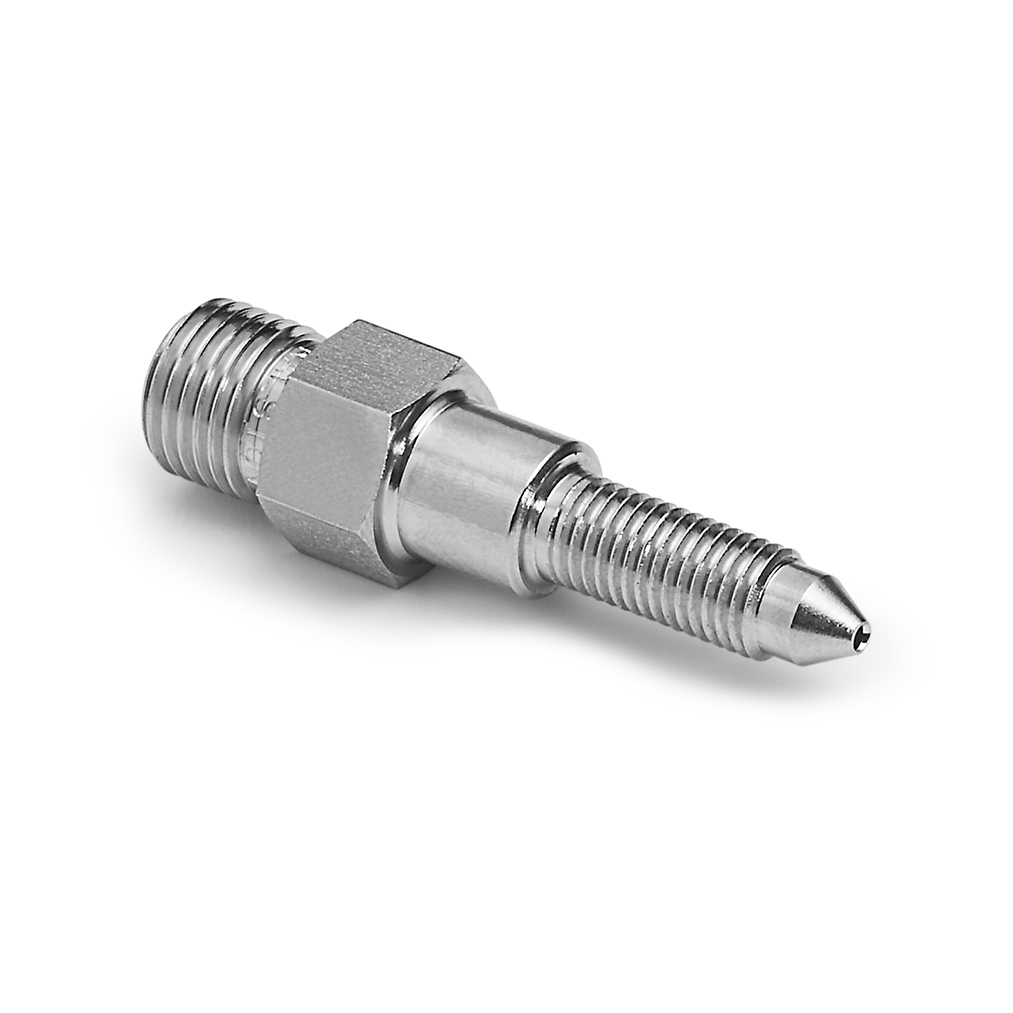

DP Transmitter Quick-test Adapters

Rosemount 5/16"-24 UNF x male Quick-test, no check-valve

Honeywell 1/4"-28 UNF X male Quick-test, no check-valve

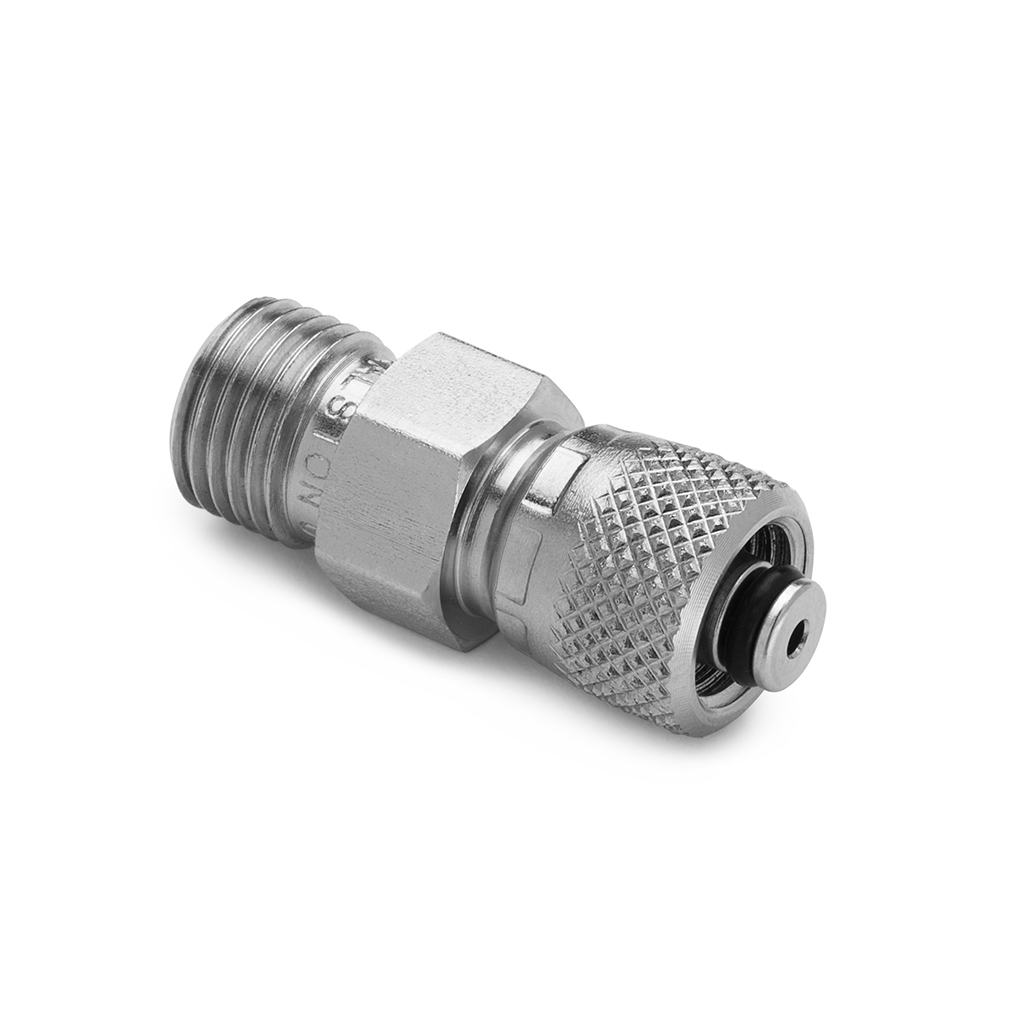

Tube Fitting Quick-test Adapters

Tube fitting x male Quick-test, no check-valve

Sizes: 1/4", 3/8”, 1/2"
