[Discontinued] Hydraulic Hand Pumps

  • Support
  • Accessories
  • Models

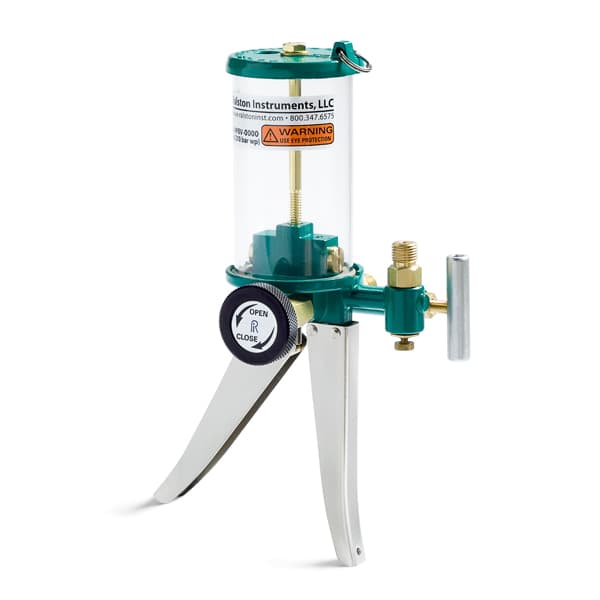

Hydraulic Hand Pumps

Simple, fast field testing for connecting a calibrator to a process connection. Connect this directly between the equipment to be tested and a reference. No need for a "T" joint.

3000 psi (210 bar) HP0V pump, 2 male Quick-test outlet ports, 3ft hose, 1/4" MNPT process connection

Part Number: HP0V-0000

Simple, fast field testing for connecting a calibrator to a process connection. Connect this directly between the equipment to be tested and a reference. No need for a "T" joint.

5000 psi (350 bar) XH0V pump, 2 male Quick-test outlet ports, 3ft hose, 1/4" MNPT process connection

Part Number: XH0V-0000

Simple, fast field testing for connecting a calibrator to a process connection. Connect this directly between the equipment to be tested and a reference. No need for a "T" joint.

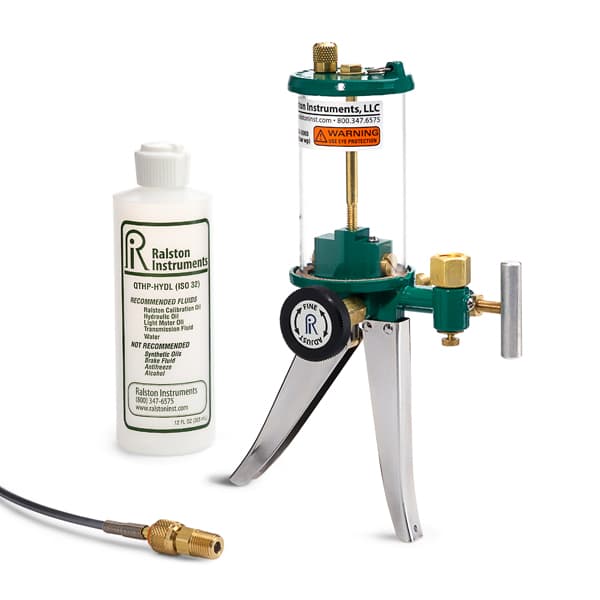

Hydraulic Hand Pumps with Gauge Connection

Pressure source and gauge in one hand. Directly connect to a process connection and calibrate using your precision gauge.

3000 psi (210 bar) HPGV Hydraulic pump, 1/4" female NPT gauge swivel, 3ft hose, 1/4" MNPT process connection

Part Number: HPGV-0000

An excellent pump to be used with a digital pressure gauge

3000 psi (210 bar) HPGV Hydraulic pump, 1/2" female BSPP gauge swivel, 1m hose, 1/4" FBSPP process conn.

Part Number: HPGV-4GBW

Pressure source and gauge in one hand. Directly connect to a process connection and calibrate using your precision gauge.

5000 psi (350 bar) XHGV pump, 1/4" female NPT gauge swivel, 3ft hose, 1/4" MNPT process connection

Part Number: XHGV-0000

Fast and efficient hydraulic field testing of pressure transmitters, gauges or switches is aided by an integral gauge adapter which allows the user to quickly attach a precision test gauge to the pump.

5000 psi (350 bar) XHGV pump, 1/2" female BSPP gauge swivel, 1m hose, 1/4" FBSPP process conn.

Part Number: XHGV-4GBW

A kit designed for BSPP connections in the European market.

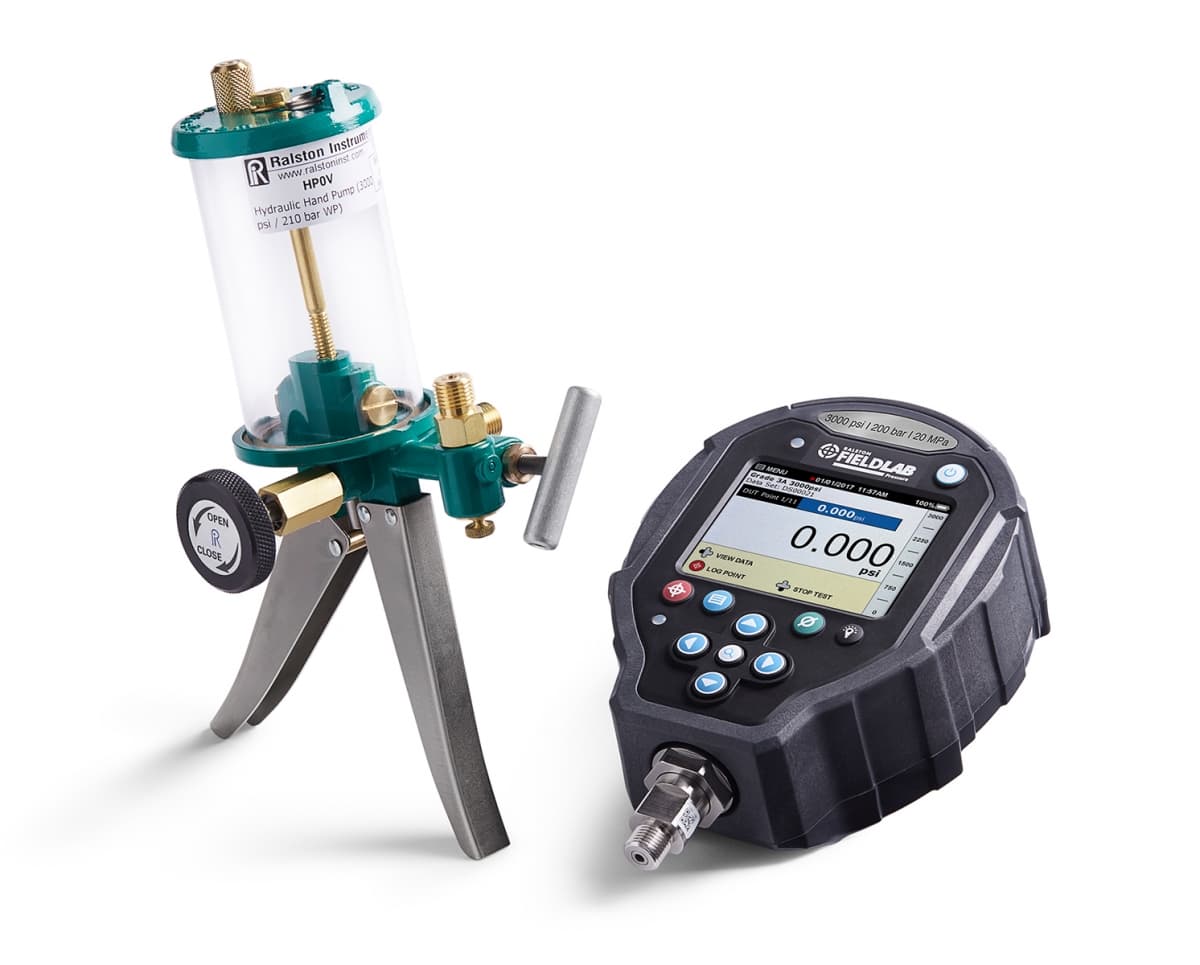

Hydraulic Hand Pump Full Calibration Kits with FieldLab

Pressure source and gauge in one hand. Directly connect to a process connection and calibrate using a Ralston FieldLab.

Calibration kit, HP0V Hydraulic Pump, 1000 psi / 70 bar / 7 MPa FieldLab (0.1% of Reading Accuracy)

Part Number: HP0V-1KPSIG-FL

Pressure source and gauge in one hand. Directly connect to a process connection and calibrate using your precision gauge.

Calibration kit, HP0V Hydraulic Pump, 3000 psi / 200 bar / 20 MPa FieldLab (0.1% of Reading Accuracy

Part Number: HP0V-3KPSIG-FL

Pressure source and gauge in one hand. Directly connect to a process connection and calibrate using your precision gauge.

Calibration kit, XH0V Hydraulic Pump, 5000 psi / 350 bar / 35 MPa FieldLab (0.1% of Reading Accuracy

Part Number: XH0V-5KPSIG-FL

Pressure source and gauge in one hand. Directly connect to a process connection and calibrate using your precision gauge.

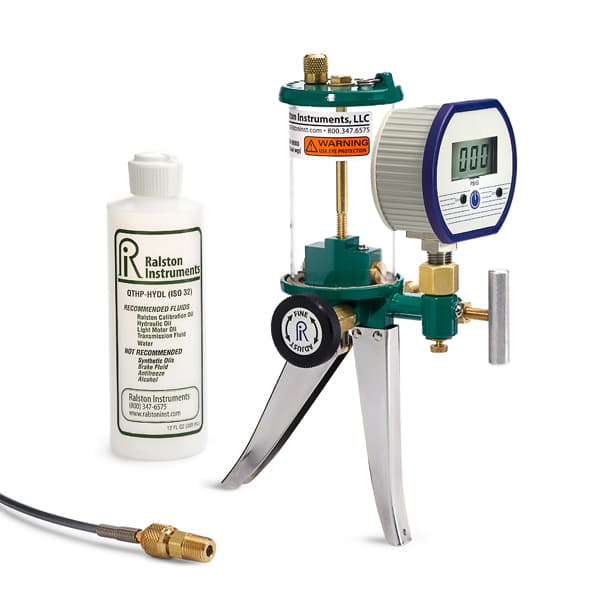

Hydraulic Hand Pump Full Calibration Kits with Digital Gauge

Pressure source and gauge in one hand. Directly connect to a process connection and calibrate using a Digital Gauge.

HPGV (3000 psi / bar) Hydraulic pump, 1000 psi digital gauge, 3ft hose, 1/4" MNPT process connection

Part Number: HPGV-1KPSIG-D

Pressure source and gauge in one hand. Directly connect to a process connection and calibrate using your precision gauge.

HPGV (3000 psi / bar) Hydraulic pump, 3000 psi digital gauge, 3ft hose, 1/4" MNPT process connection

Part Number: HPGV-3KPSIG-D

Pressure source and gauge in one hand. Directly connect to a process connection and calibrate using your precision gauge.

XHGV (5000 psi / 350 bar) pump, 5000 psi digital gauge, 3ft hose, 1/4" MNPT process connection

Part Number: XHGV-5KPSIG-D

Pressure source and gauge in one hand. Directly connect to a process connection and calibrate using your precision gauge.
