DP Transmitter Quick-test Adapters

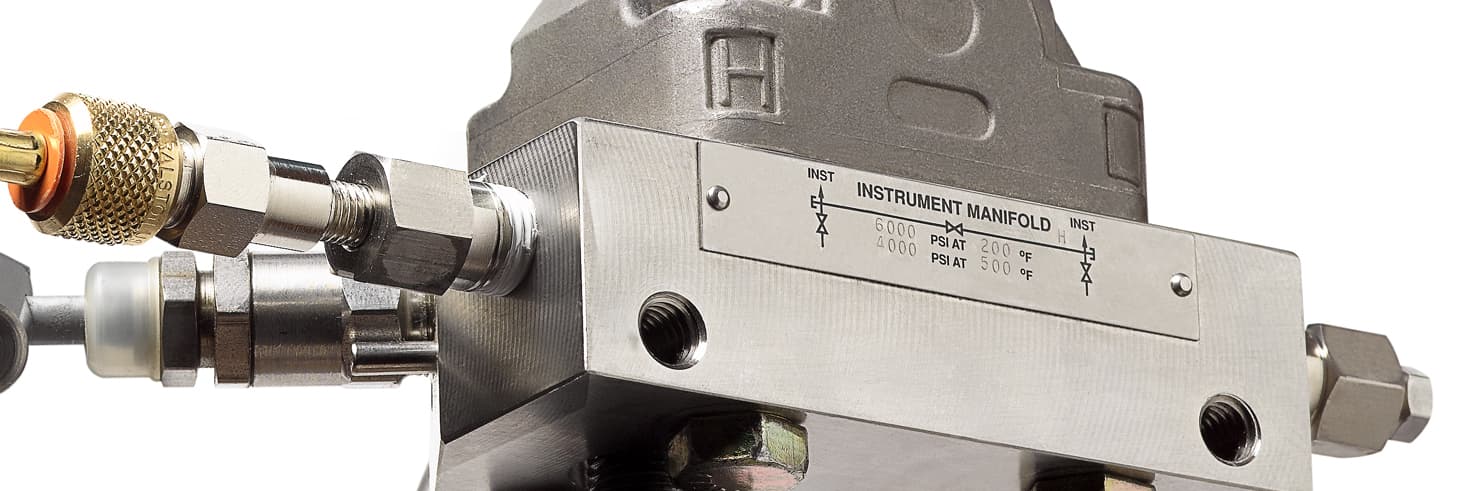

Connect a Quick-test hose directly to a DP transmitter or gauge valve using the bleeder port when the transmitter is not mounted on a 3 valve manifold or gauge valve or when the manifold is not easily accessible.

  • This unique fitting makes a metal to metal seat on the transmitter or gauge valve and a Quick-test hose can be attached on the other side
  • Connects through the bleeder screw port on a DP transmitter
  • Made in USA

DP Transmitter Quick-test Adapter Models

Model Max Pressure Connection Connection Materials

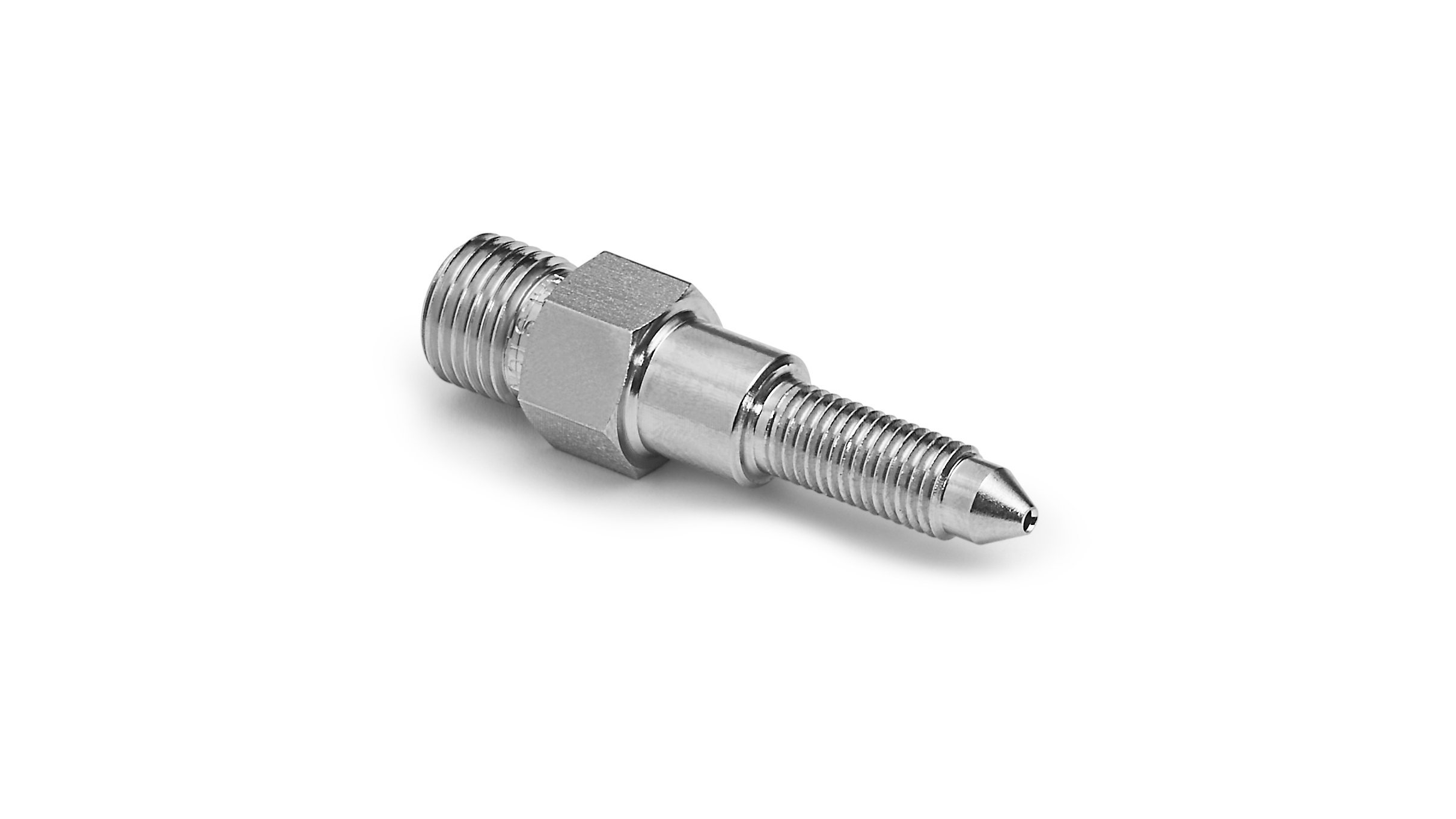

QTHA-FRS0 5,000 psi / 345 bar / 34 MPa 5/16-24 Male DP Transmitter/Gauge valve Male Quick-test Stainless Steel
QTHA-HNS0 5,000 psi / 345 bar / 34 MPa 1/4-28 Male DP Transmitter/Gauge valve Male Quick-test Stainless Steel
QTHA-EHS0 5,000 psi / 345 bar / 34 MPa M8x1.25 Male DP Transmitter/Gauge valve Male Quick-test Stainless Steel
QTHA-NPS0 5,000 psi / 345 bar / 34 MPa 1/4-20 Male DP Transmitter/Gauge valve Male Quick-test Stainless Steel
QTHA-RGS0 5,000 psi / 345 bar / 34 MPa M8 x 1.0 Male DP Transmitter/Gauge valve Male Quick-test Stainless Steel
