DP Transmitter Quick-test Fittings

Name: Ralston Instruments
Address: 15035 Cross Creek Pkwy, Newbury, Ohio, 44065, US
Telephone: +1-440-564-1430

Ideal for situations where frequent calibration of a DP transmitter using the bleeder port is required

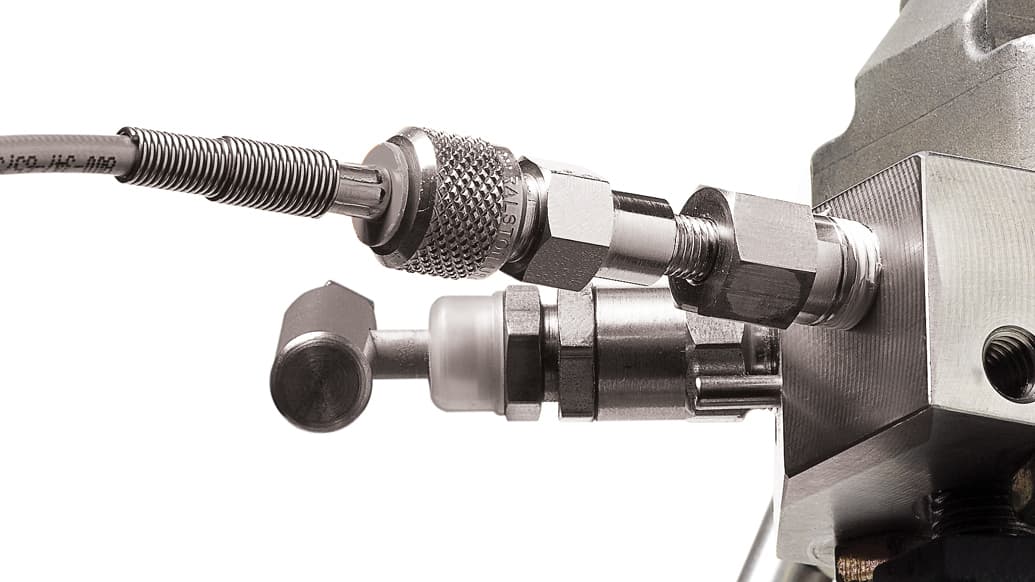

This unique fitting makes a metal to metal seat on the transmitter and a Quick-test hose can be attached on the other side
Connects through the bleeder screw port on a DP transmitter
Made in USA

Model	Max Pressure	Connection	Connection	Quick-connect	Cap and Chain	Bulkhead	Materials

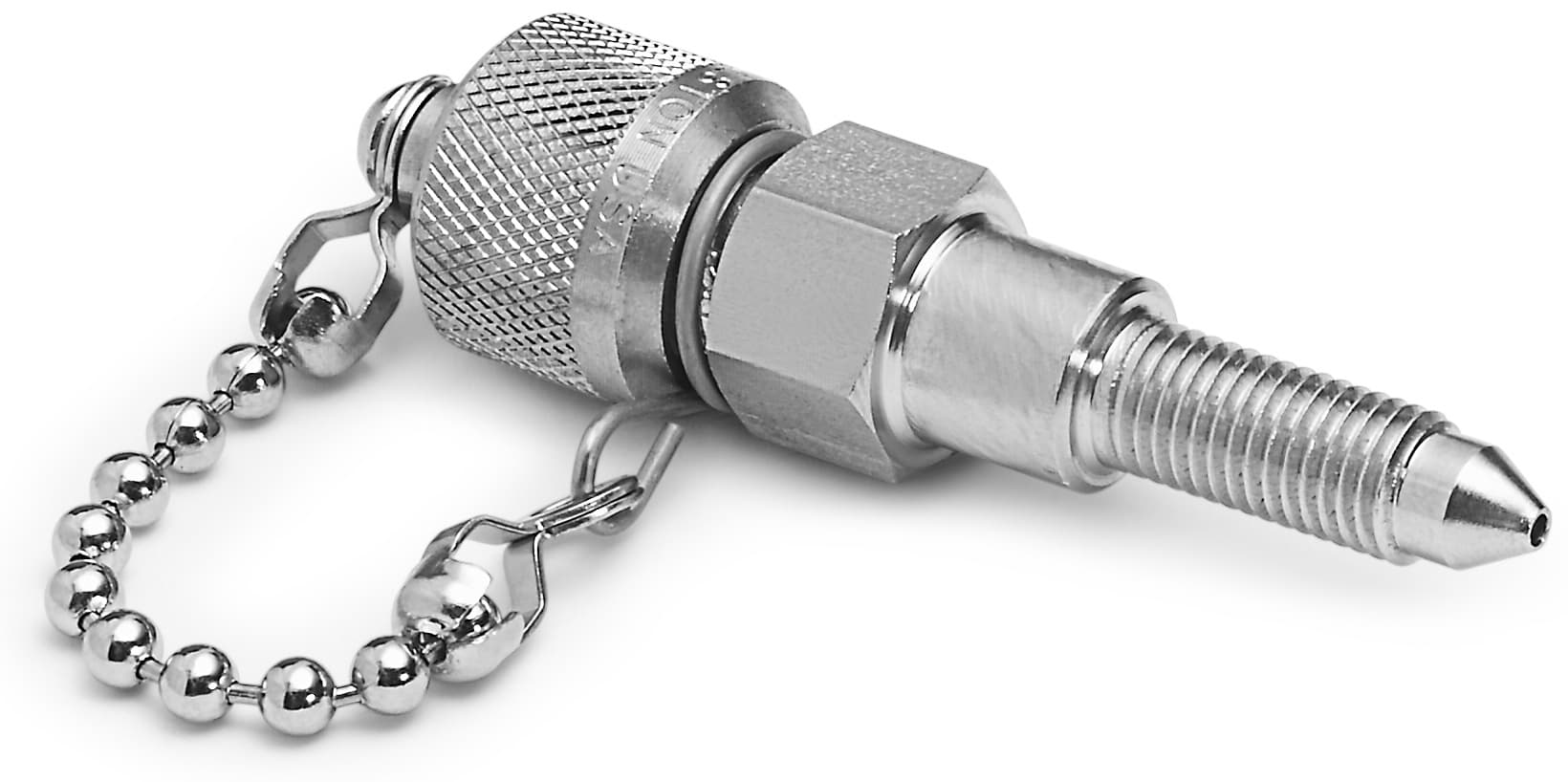

QTFT-FRS0	5000 PSI / 350 bar / 35 MPa	Male Quick-test	5/16-24 Male DP Transmitter/Gauge valve	No	Yes	No	Stainless Steel
QTFT-HNS0	5000 PSI / 350 bar / 35 MPa	Male Quick-test	1/4-28 Male DP Transmitter/Gauge valve	No	Yes	No	Stainless Steel
QTFT-EHS0	5000 PSI / 350 bar / 35 MPa	Male Quick-test	M8x1.25 Male DP Transmitter/Gauge valve	No	Yes	No	Stainless Steel
QTFT-NPS0	5000 PSI / 350 bar / 35 MPa	Male Quick-test	1/4-20 Male DP Transmitter/Gauge valve	No	Yes	No	Stainless Steel
QTFT-RGS0	5000 PSI / 350 bar / 35 MPa	Male Quick-test	M8 x 1.0 Male DP Transmitter/Gauge valve	No	Yes	No	Stainless Steel
