QTHP Maintenance and Repair

Learn how to repair the QTHP Hydraulic Hand Pump with simple hand tools and the QTHP Replacement Parts Kit.

In this video, you'll learn how to:

  • Fix the pump losing pressure after pumping
  • Replace the Inlet Check Valve and O-Ring Seals
  • Replace the Outlet Port Check Valve and O-Ring Seals
  • Replace O-Ring Seals in the Fine Adjust Valve
  • Inspect the Bleed Valve and Replace O-Ring Seals
  • Change the Pumping Piston O-Ring and Backup Ring
Loading...

Hydraulic Hand Pump Operation Manual

Get started with your new Hydraulic Hand Pump with a printable manual covering setup and safety precautions.


Download Manual

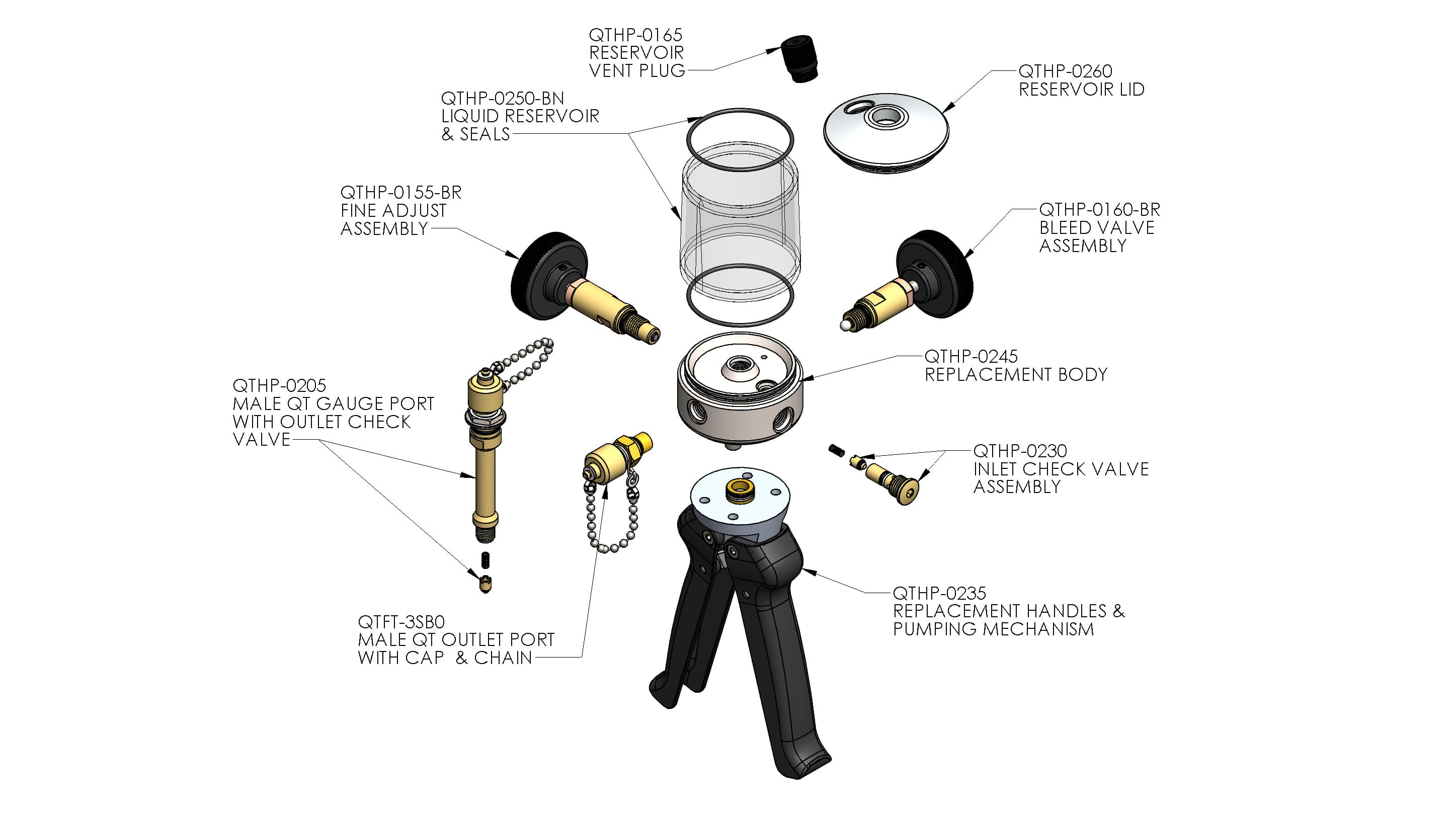

QTHP Replacement Parts

Repair kit for QTHP hydraulic pump with Buna sealsQTHP-0265

Includes reservoir gaskets, all replacement seals, fasteners bolts for handles, snap ring, replacement check valves and replacement springs

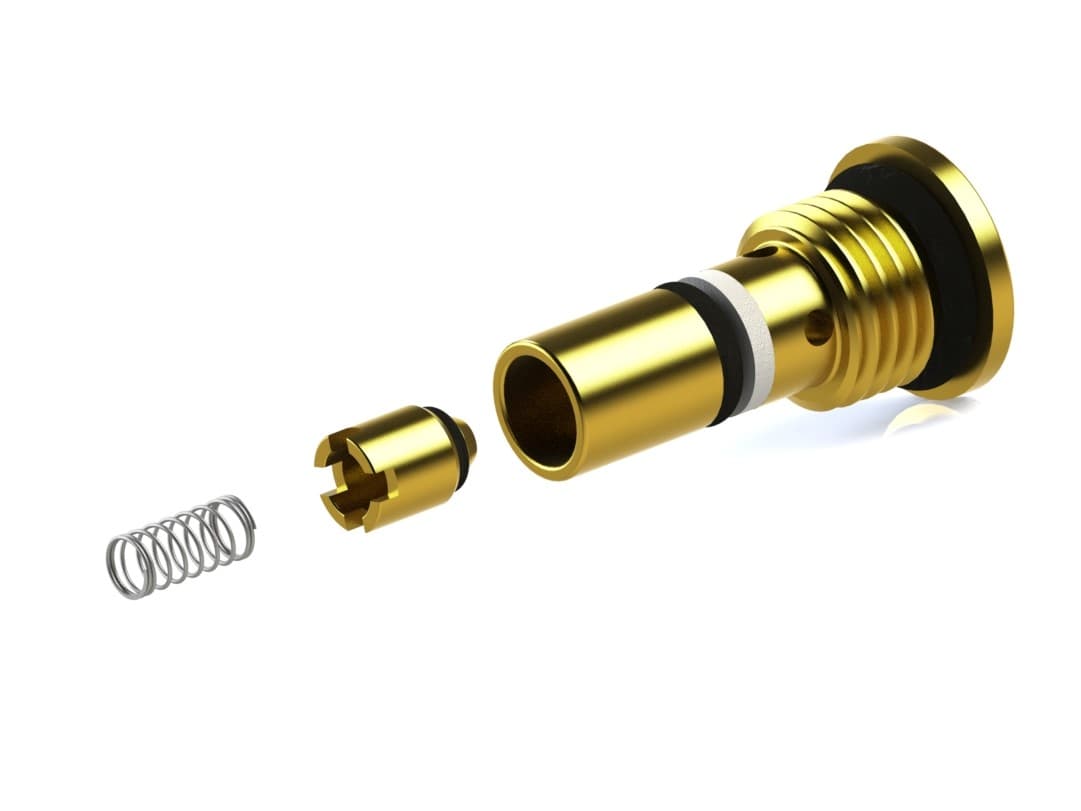

Replacement outlet check valve assembly for DCAP/QTHP pumps, brassDCAP-0065-BR

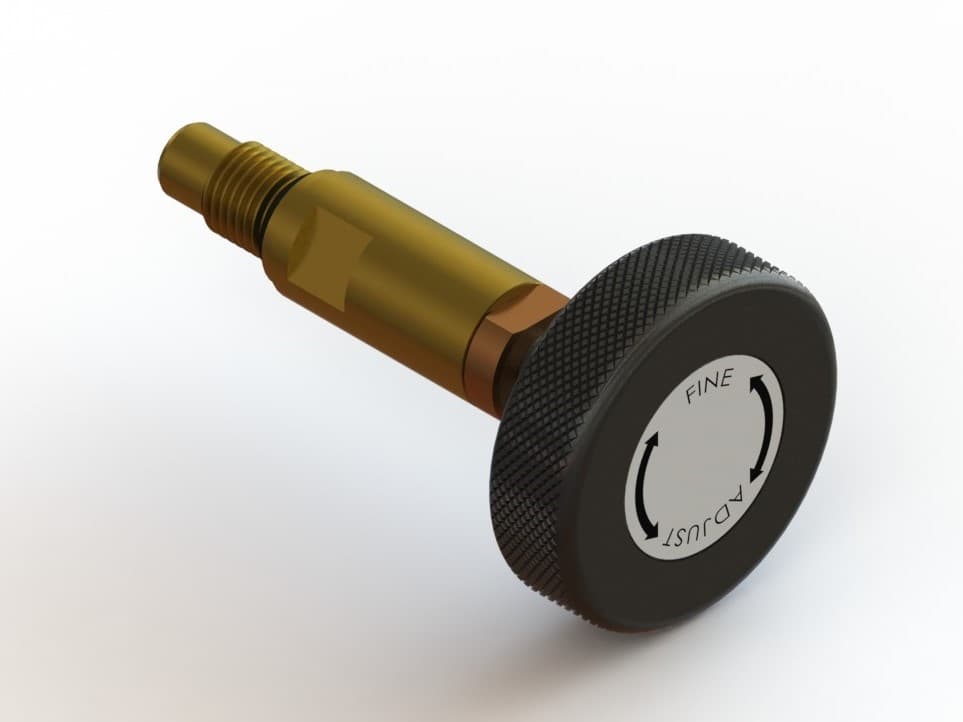

QTHP Hydraulic Pump fine adjust assembly, brassQTHP-0155-BR

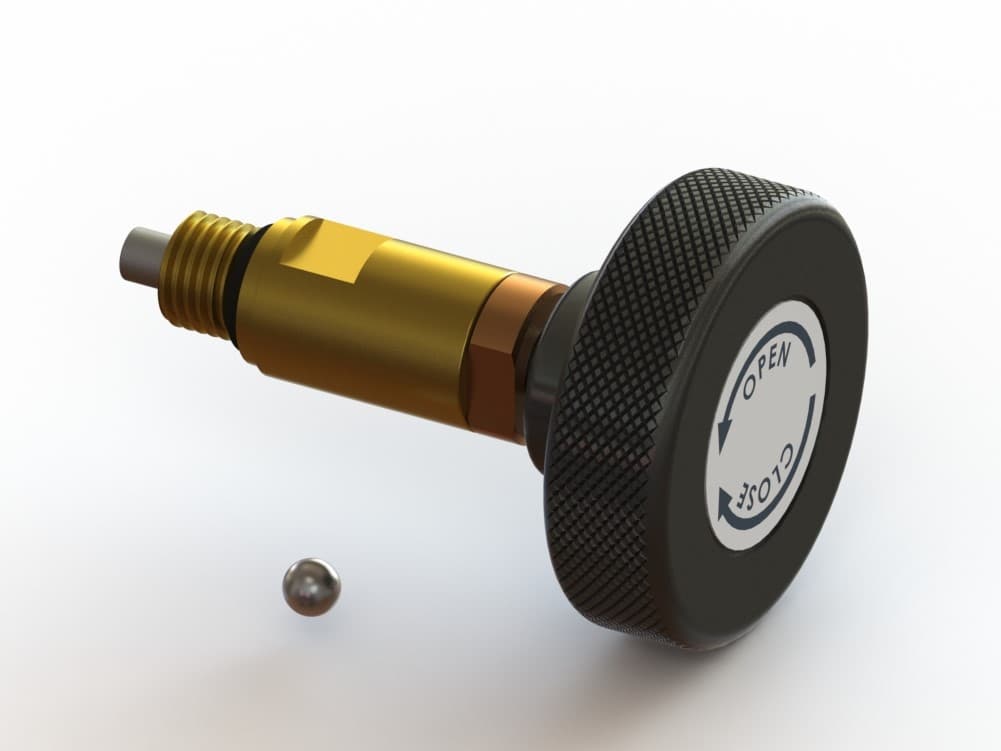

QTHP Hydraulic pump Bleed Valve assembly, brass, Buna sealsQTHP-0160-BR

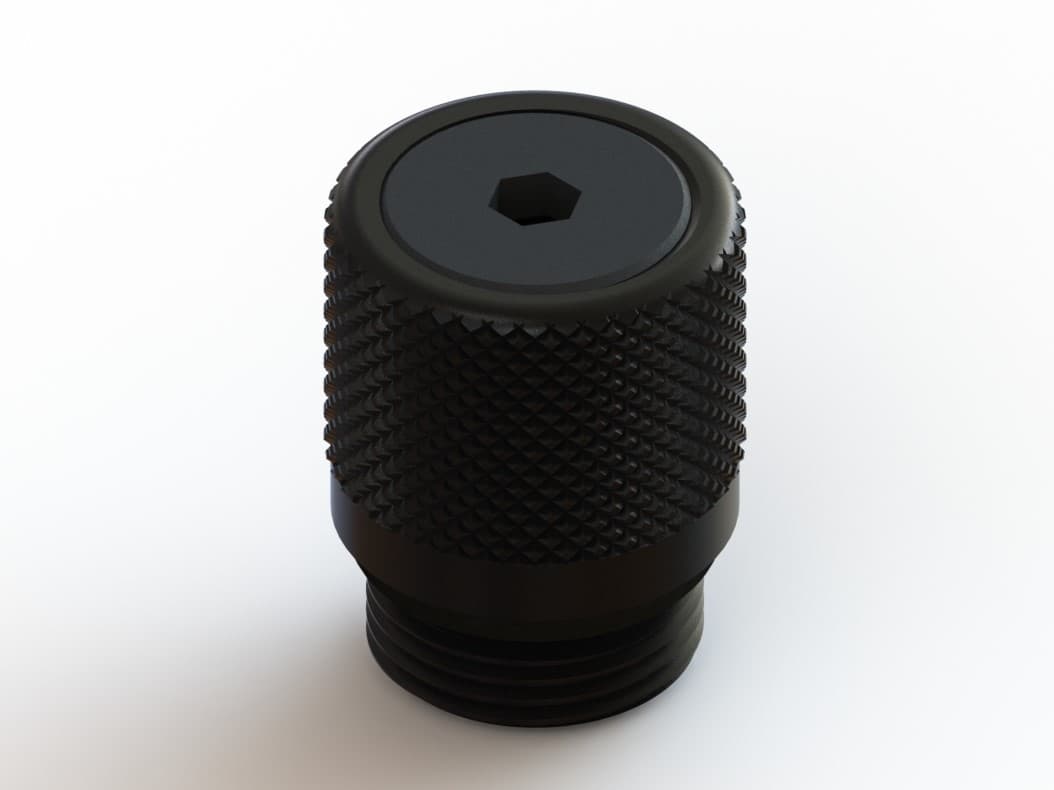

QTHP / XTHP Hydraulic pump Vent Plug assembly, Viton sealsQTHP-0165

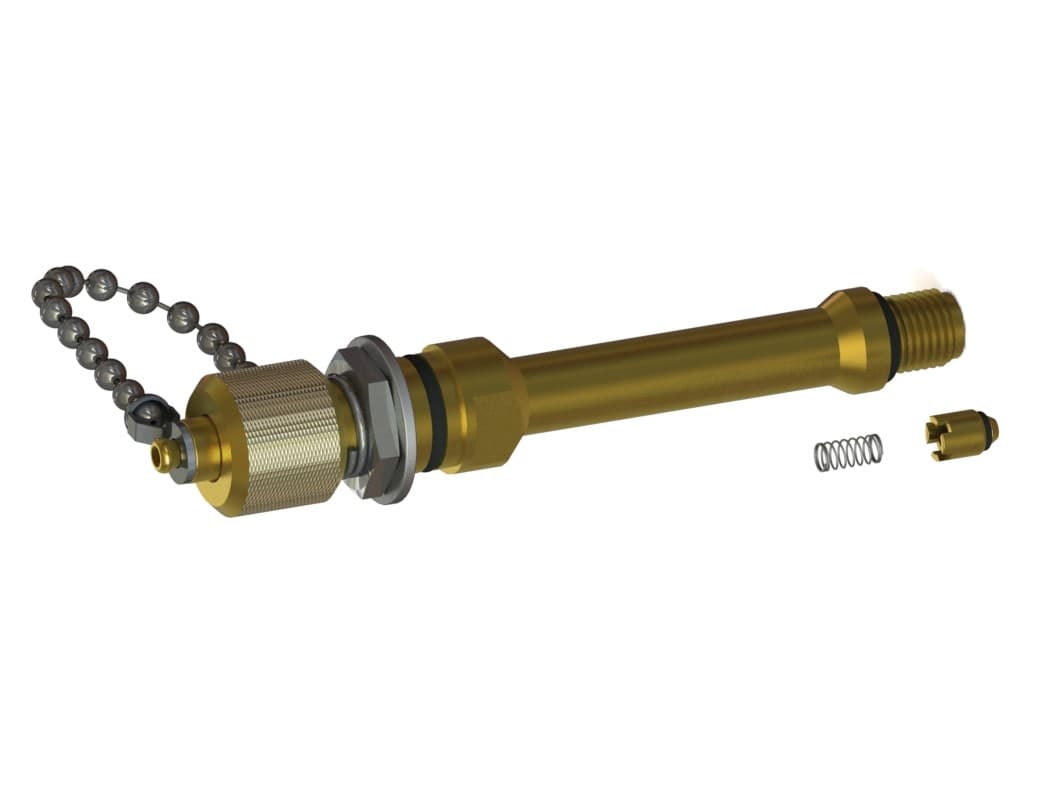

QTHP Hydraulic pump Gauge Port assembly, Quick-test, brassQTHP-0205

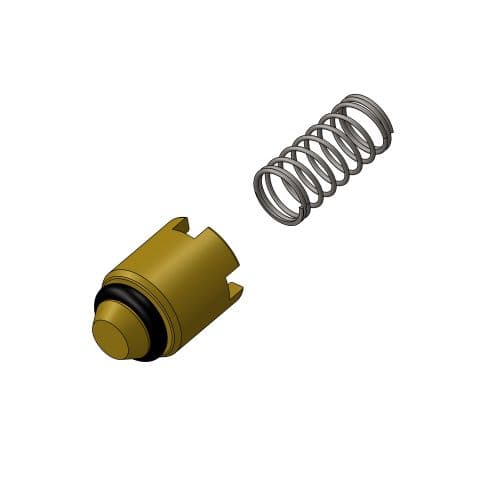

Replacement inlet check valve assembly for QTHP hydraulic pump, brassQTHP-0230

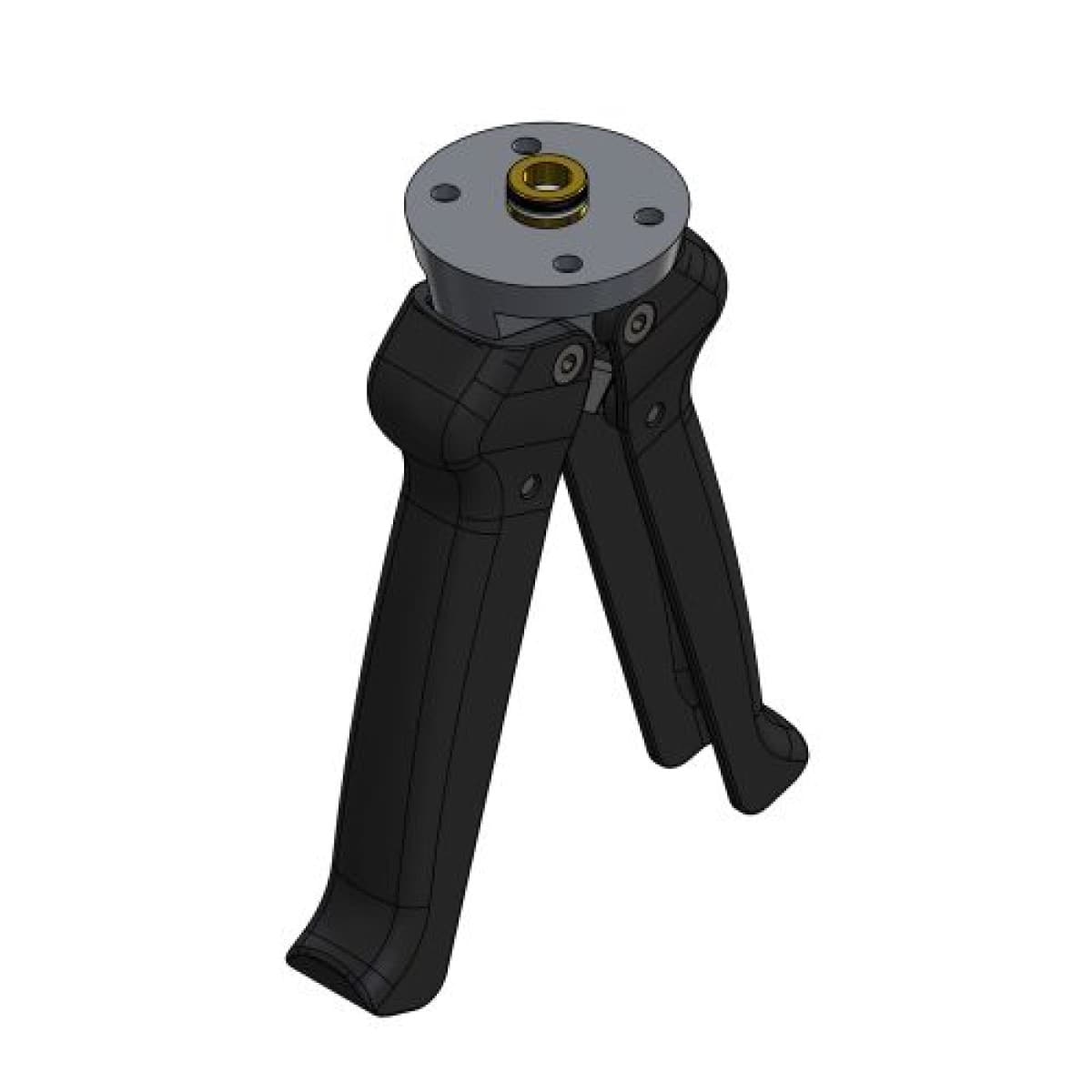

Replacement piston, handles, bracket assembly for QTHP pumpsQTHP-0235

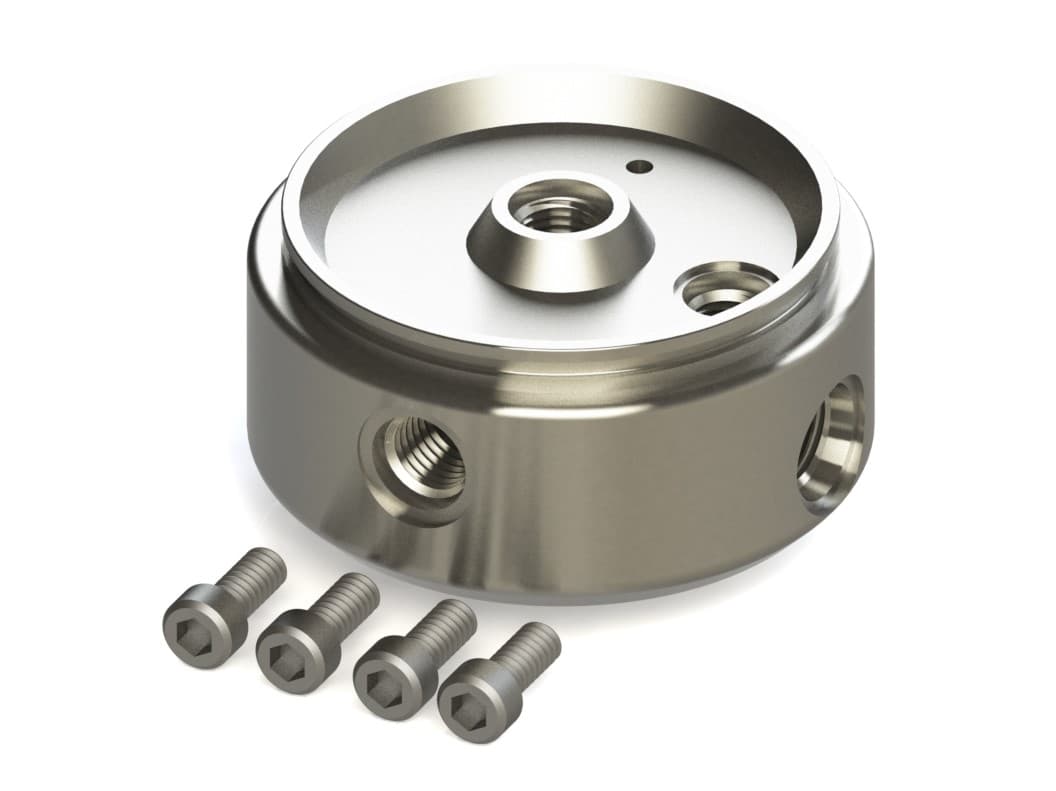

Replacement body for QTHP, XTHP hydraulic pumpsQTHP-0245

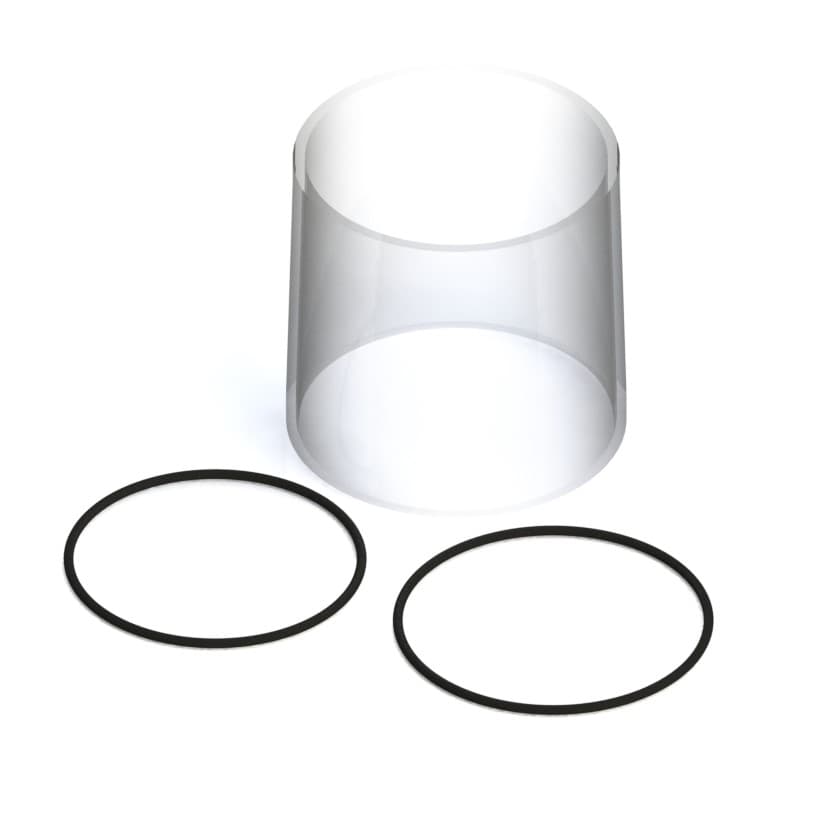

QTHP Liquid reservoir and (2) o-ringsQTHP-0250-BN

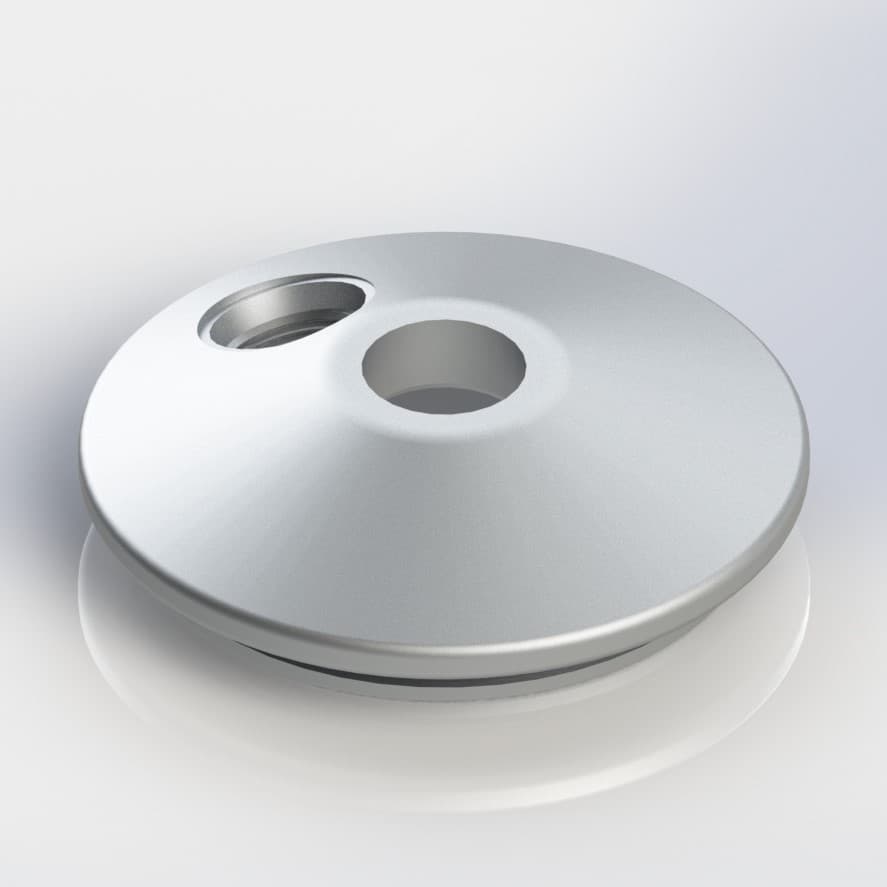

Replacement reservoir lid for QTHP, XTHP hydraulic pumpsQTHP-0260

Replacement binding bolts for QTHP handlesQTHP-0290

3/8-24 Male SAE X Male Quick-test outlet connection with cap and chain, brassQTFT-3SB0

3/8-24 Male SAE X Male Quick-test outlet connection with cap and chain, brass
