Part Number: XTHA-2MSA-MP

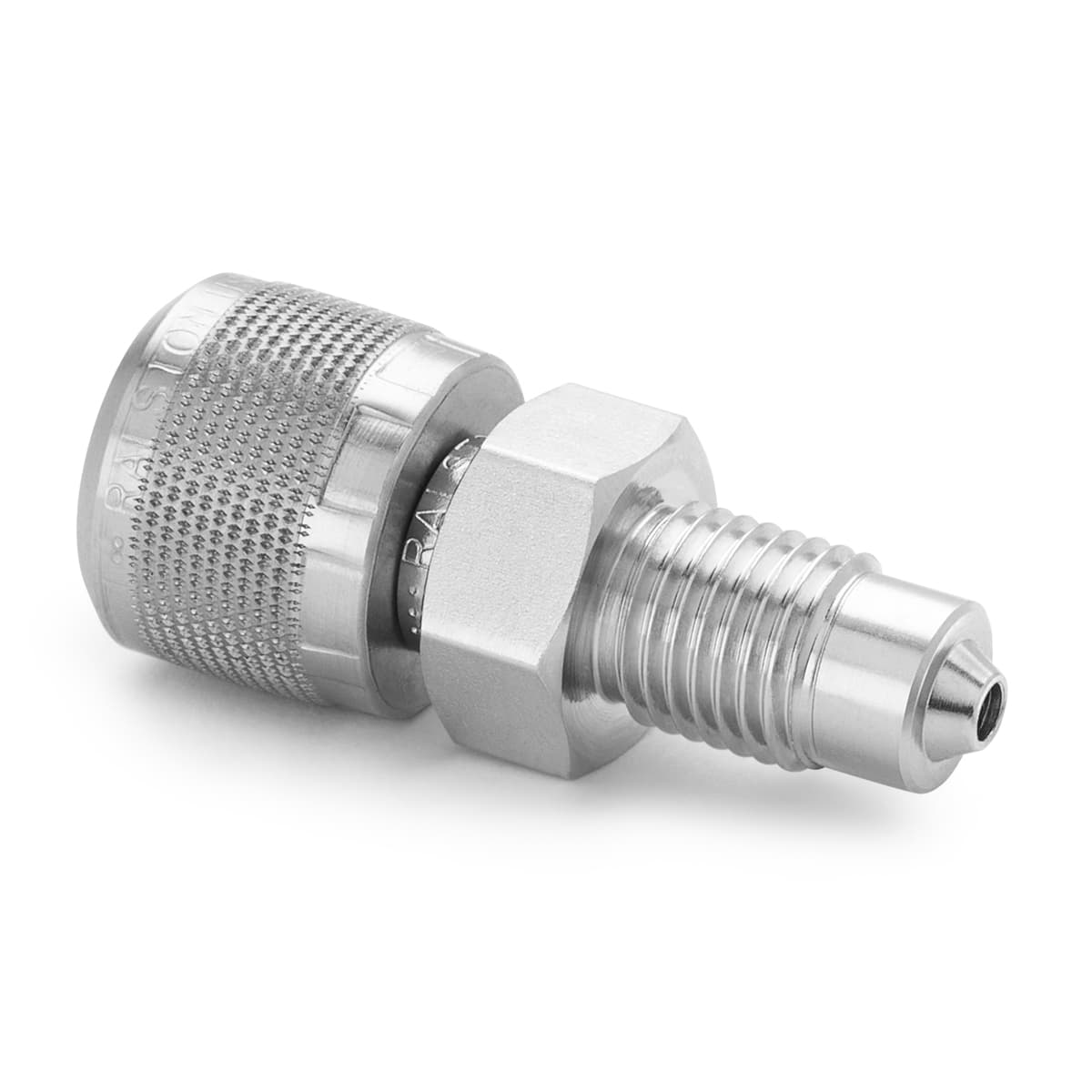

7/16-20 Male Medium Pressure x Female Quick-test XT Adapter, S.S.

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Connect to any medium pressure connection

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	1.63 oz / 46 grams
Length	1.85 in / 47 mm
Width	0.76 in / 20 mm
Height	0.76 in / 20 mm
Compatible with	Ametek Crystal Series XP2i Series Pressure Gauges, Ametek Crystal Series m1 Pressure Gauges, Ametek Crystal nVision Series Pressure Recorders, Ametek Crystal 30 Series Pressure Calibrators, Ametek Crystal HPC40 Series Pressure Calibrators
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	10000 PSI / 700 bar / 70 MPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	0 °F / -18 °C
End 1 Connector	7/16-20 (1/4" LM4) Male Medium Pressure
End 1 Direction	Left
End 2 Connector	Female Quick-test XT
End 2 Direction	Left
