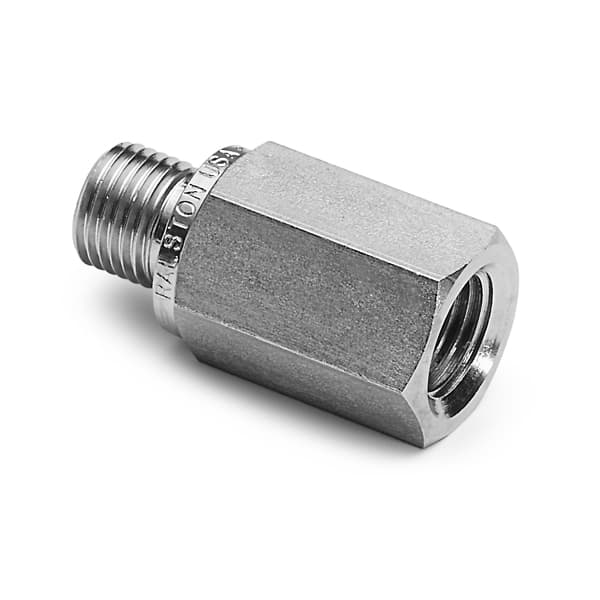

Part Number: QTHA-2FS0
1/4" female NPT x male Quick-test, no check-valve, S.S.
Connect a Quick-test hose to a pressure gauge or any device with a male NPT connection using thread sealant and a wrench
Specifications
| Weight | 2.1 oz / 60 grams |
|---|---|
| Length | 1.57 in / 40 mm |
| Width | 0.75 in / 20 mm |
| Height | 0.75 in / 20 mm |
| Country of origin | USA |
| Materials | Stainless Steel |
| Max Operating Temperature | 225 °F / 105 °C |
| Max Pressure | 5000 PSI / 350 bar / 35 MPa |
| Max Vacuum | 0 InHg / 0.0 kPa |
| Seal Materials | Buna-N |
| Wrench Size | 3/4 In / 20 mm |
| Wrench Size | 19 mm / 23/32 in |
| End 1 Connector | 1/4" Female NPT (ASME B1.20.1) |
| End 1 Direction | Left |
| End 2 Connector | Male Quick-test |
| End 2 Direction | Left |
