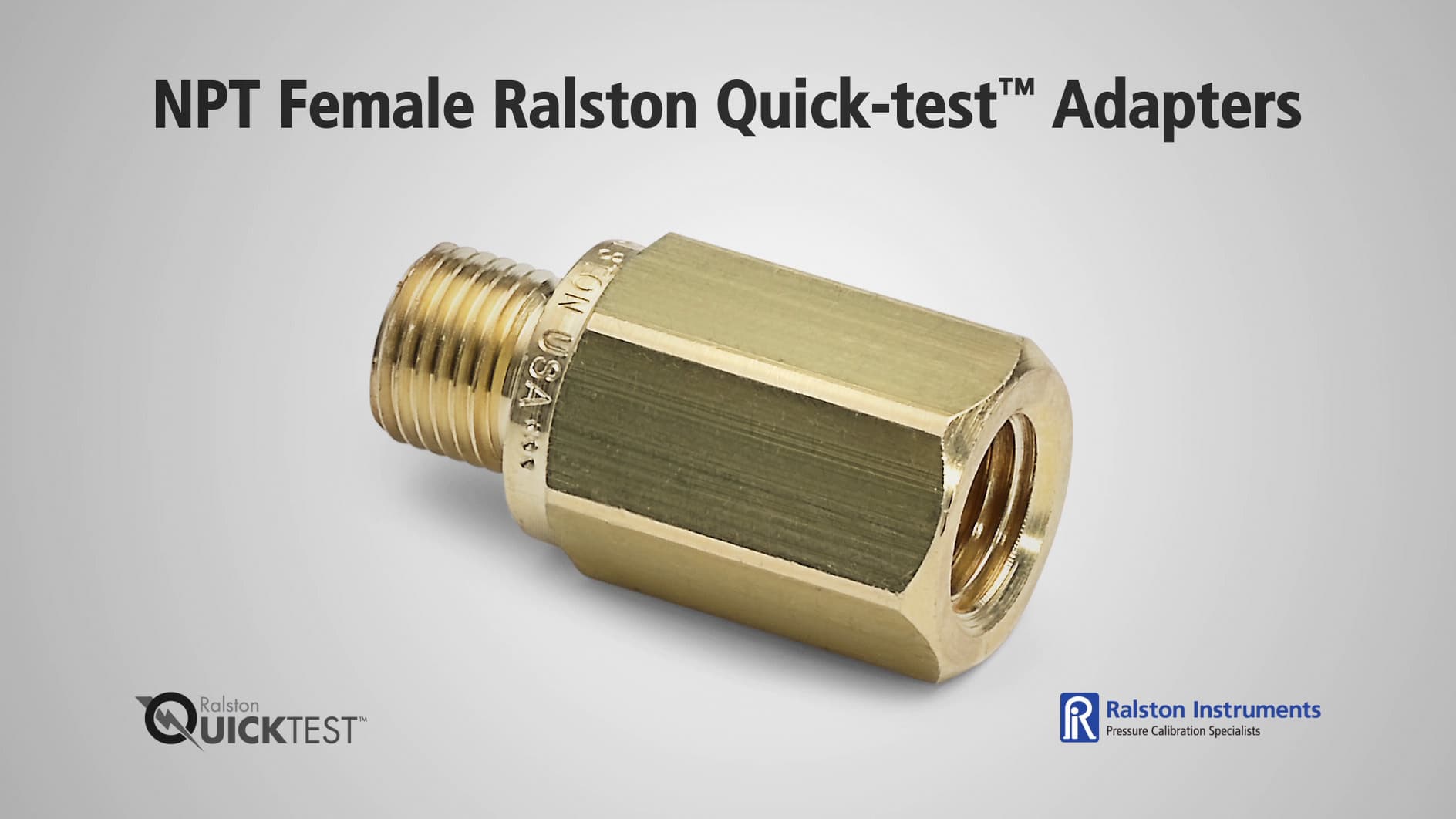

NPT Female Quick-test Adapters

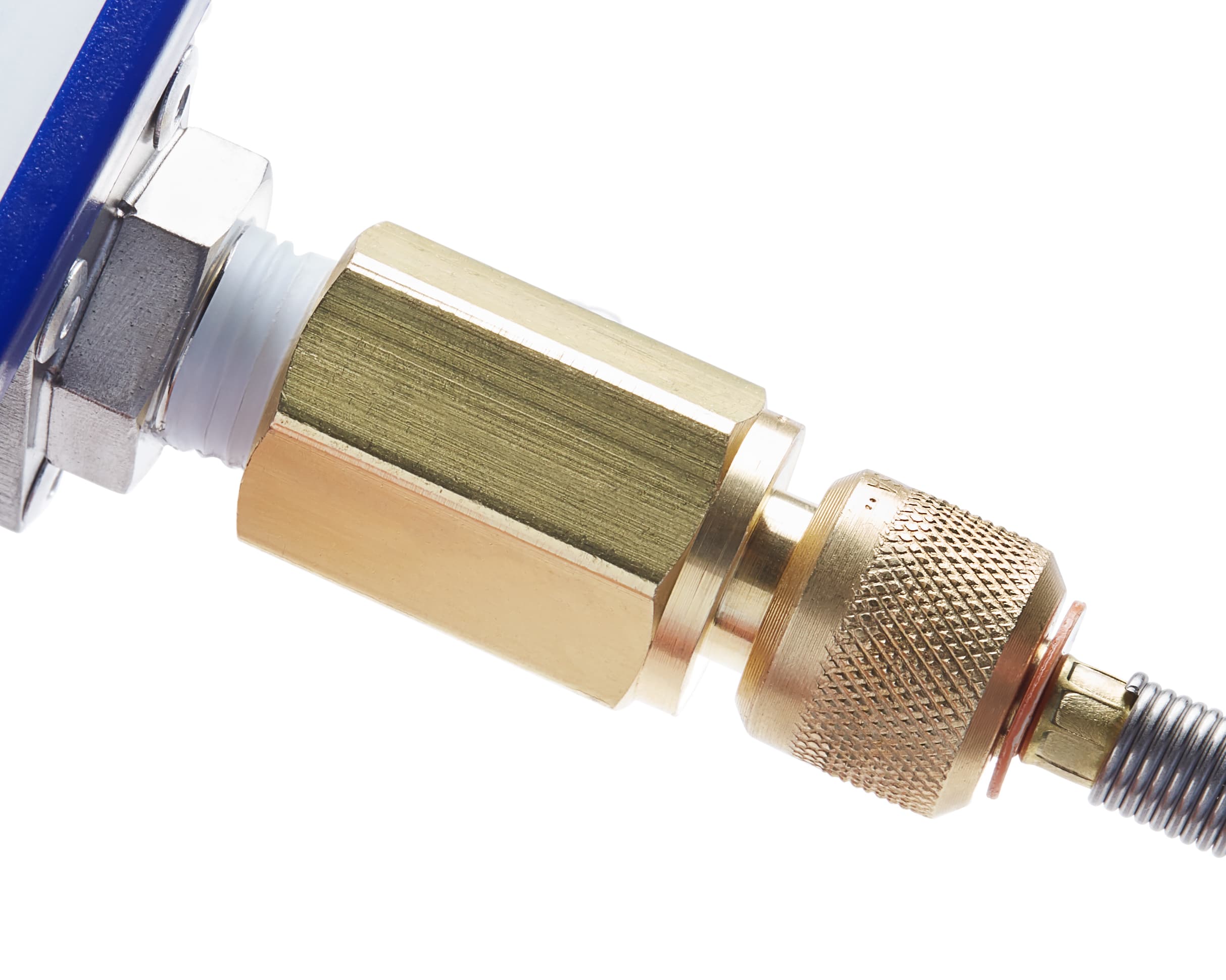

Connect a Quick-test hose to a pressure gauge or any device with a male NPT connection using thread sealant and a wrench

  • Connect to pressure gauges with NPT connections
  • Adapt to a wide range of Male NPT process connections
  • Made in USA

NPT Female Quick-test Adapter Models

Model Max Pressure Connection Connection Materials
QTHA-1FB0 5,000 psi / 345 bar / 34 MPa 1/8" Female NPT (ASME B1.20.1) Male Quick-test Brass
QTHA-1FB1 3,000 psi / 207 bar / 21 MPa 1/8" Female NPT (ASME B1.20.1) Male Quick-test Brass
QTHA-1FS0 5,000 psi / 345 bar / 34 MPa 1/8" Female NPT (ASME B1.20.1) Male Quick-test Stainless Steel
QTHA-1FS1 3,000 psi / 207 bar / 21 MPa 1/8" Female NPT (ASME B1.20.1) Male Quick-test Stainless Steel

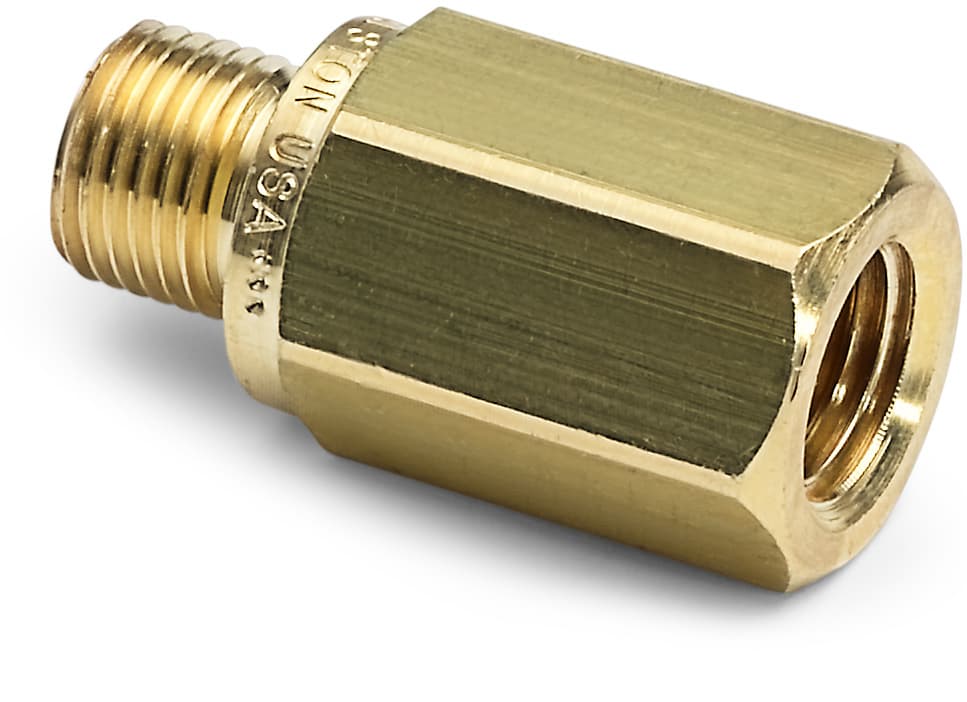

QTHA-2FB0 5,000 psi / 345 bar / 34 MPa 1/4" Female NPT (ASME B1.20.1) Male Quick-test Brass
QTHA-2FB1 3,000 psi / 207 bar / 21 MPa 1/4" Female NPT (ASME B1.20.1) Male Quick-test Brass
QTHA-2FS0 5,000 psi / 345 bar / 34 MPa 1/4" Female NPT (ASME B1.20.1) Male Quick-test Stainless Steel
QTHA-2FS1 3,000 psi / 207 bar / 21 MPa 1/4" Female NPT (ASME B1.20.1) Male Quick-test Stainless Steel
QTHA-3FB0 5,000 psi / 345 bar / 34 MPa 3/8" Female NPT (ASME B1.20.1) Male Quick-test Brass
QTHA-3FB1 3,000 psi / 207 bar / 21 MPa 3/8" Female NPT (ASME B1.20.1) Male Quick-test Brass
QTHA-3FS0 5,000 psi / 345 bar / 34 MPa 3/8" Female NPT (ASME B1.20.1) Male Quick-test Stainless Steel
QTHA-3FS1 5,000 psi / 345 bar / 34 MPa 3/8" Female NPT (ASME B1.20.1) Male Quick-test Stainless Steel
QTHA-4FB0 5,000 psi / 345 bar / 34 MPa 1/2" Female NPT (ASME B1.20.1) Male Quick-test Brass
QTHA-4FS0 5,000 psi / 345 bar / 34 MPa 1/2" Female NPT (ASME B1.20.1) Male Quick-test Stainless Steel
QTHA-6FB0 5,000 psi / 345 bar / 34 MPa 3/4" Female NPT (ASME B1.20.1) Male Quick-test Brass
