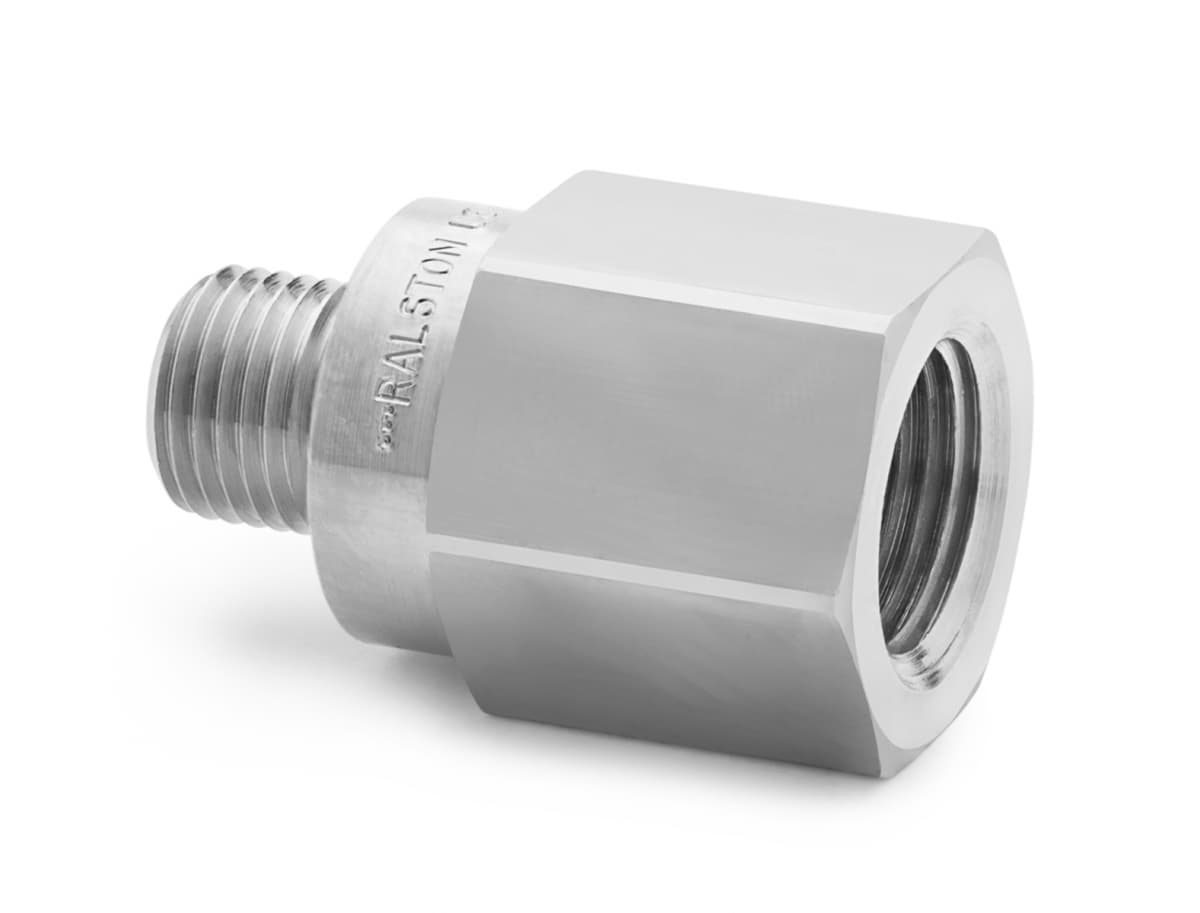

Part Number: QTHA-3FS1

3/8" female NPT x male Quick-test, with check-valve, S.S.

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Connect a Quick-test hose to a pressure gauge or any device with a male NPT connection using thread sealant and a wrench

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	3.27 oz / 93 grams
Length	1.32 in / 34 mm
Width	0.94 in / 24 mm
Height	0.94 in / 24 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	15/16 In / 24 mm
Wrench Size	24 mm / 15/16 in
End 1 Connector	3/8" Female NPT (ASME B1.20.1)
End 1 Direction	Left
End 2 Connector	Male Quick-test
End 2 Direction	Left
