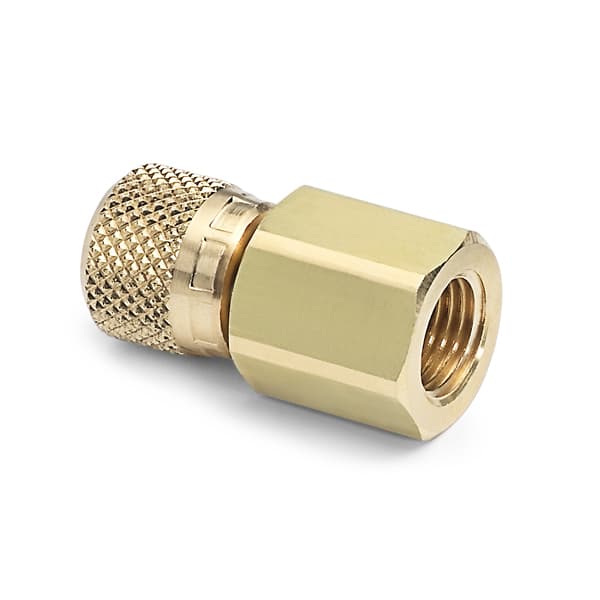

Part Number: QTHA-1FBA

1/8" female NPT x female Quick-test, no check-valve, brass

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Connect a pressure gauge with a 1/8" Male NPT bottom connection to a Ralston hand pump or pressure source

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	1.39 oz / 39 grams
Length	1.3 in / 34 mm
Width	0.7 in / 18 mm
Height	0.7 in / 18 mm
Country of origin	USA
Materials	Brass
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	5/8 In / 16 mm
Wrench Size	16 mm / 5/8 in
End 1 Connector	1/8" Female NPT (ASME B1.20.1)
End 1 Direction	Left
End 2 Connector	Female Quick-test
End 2 Direction	Left
