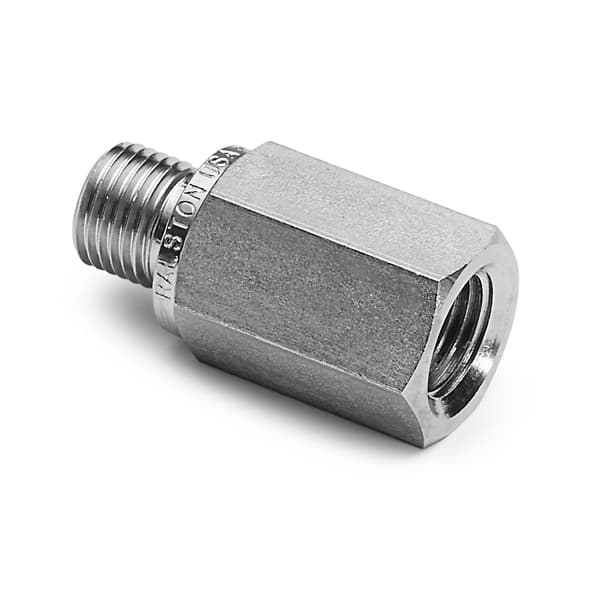

Part Number: XTHA-1FS0
1/8" female NPT x male Quick-test XT Adapter, S.S.
Connect to a pressure gauge, transmitter or pressure switch in the field
Specifications
| Weight | 1.14 oz / 32 grams |
|---|---|
| Length | 1.21 in / 31 mm |
| Width | 0.71 in / 19 mm |
| Height | 0.71 in / 19 mm |
| Country of origin | USA |
| Materials | Stainless Steel |
| Max Operating Temperature | 400 °F / 205 °C |
| Max Pressure | 10000 PSI / 700 bar / 70 MPa |
| Min Operating Temperature | -15 °F / -26 °C |
| Seal Materials | Teflon, Viton |
| Wrench Size | 5/8 In / 16 mm |
| Wrench Size | 16 mm / 5/8 in |
| End 1 Connector | 1/8" Female NPT (ASME B1.20.1) |
| End 1 Direction | Left |
| End 2 Connector | Male Quick-test XT |
| End 2 Direction | Left |
