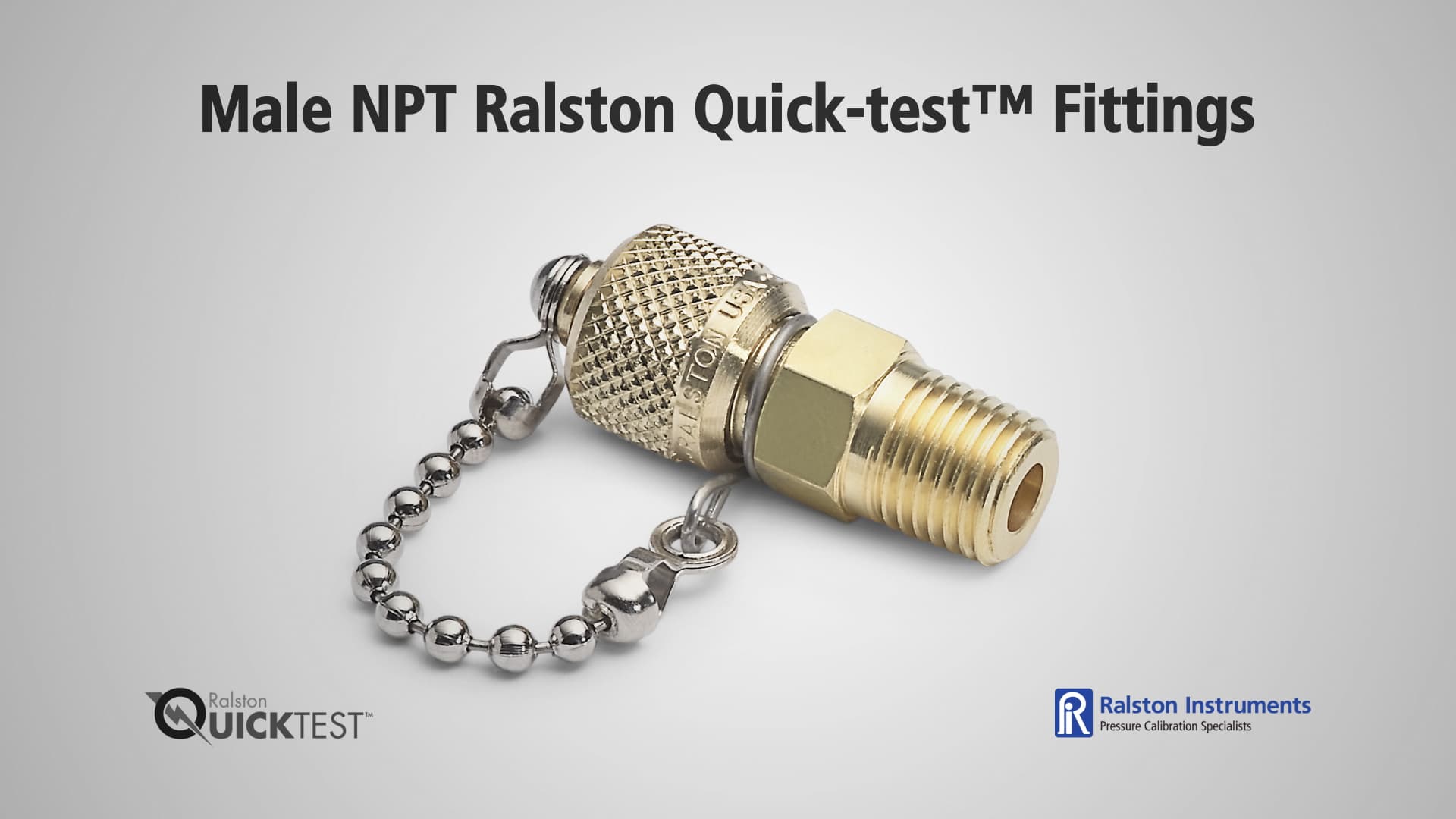

NPT Male Quick-test Fittings

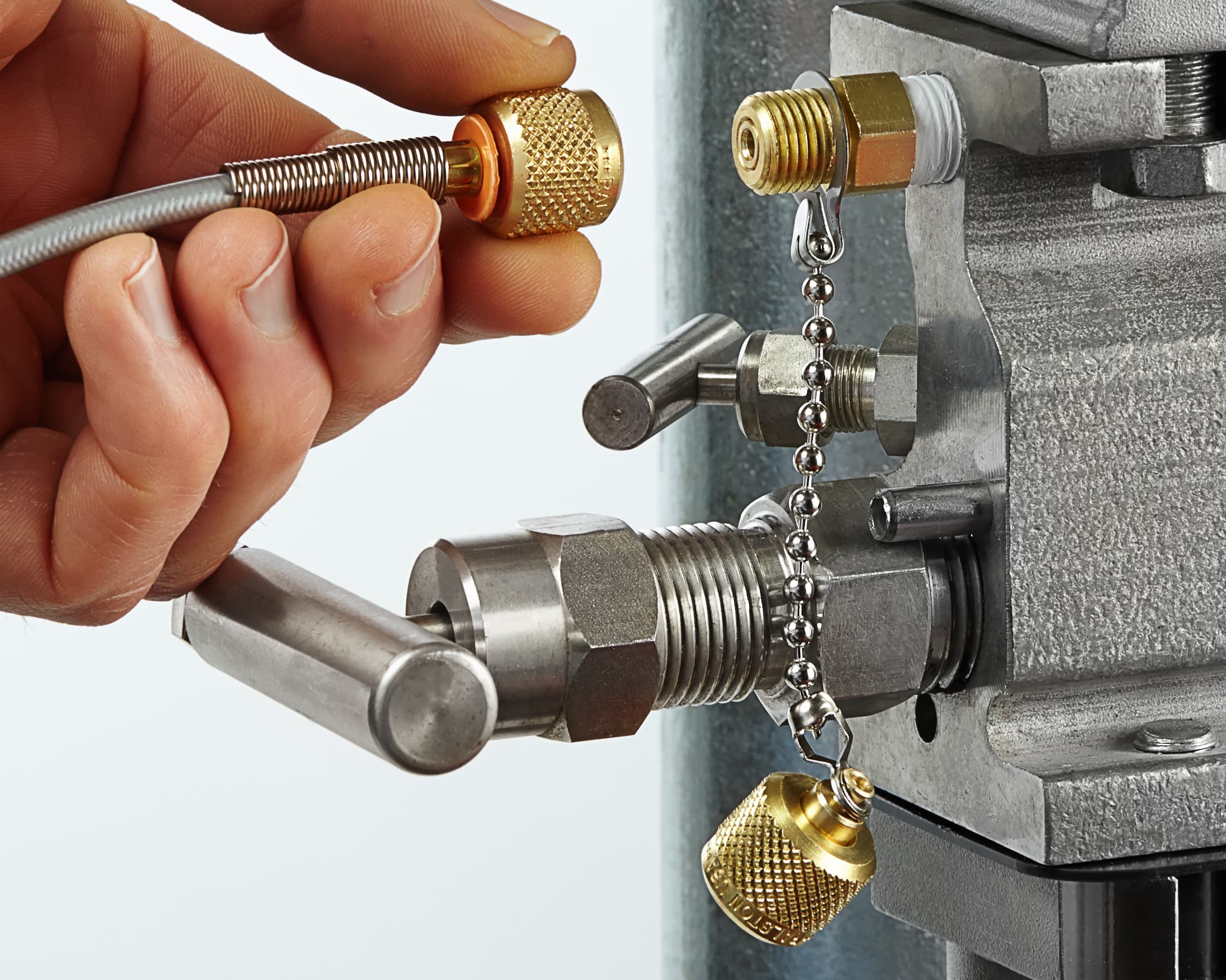

A removable cap provides easy access to connect a Quick-test hose to the process for calibration purposes and is easily sealed bubble-tight again when calibration is complete

  • Connect to pressure transmitters, EFMs, Flow Computers and other NPT devices under test using thread sealant for a permanent connection
  • A Cap and chain makes calibration easy and quick by connecting and disconnecting a hose without a wrench or thread sealant
  • Made in USA

NPT Male Quick-test Fitting Models

Model Max Pressure Connection Connection Materials
QTFT-0.5MB0 5,000 psi / 345 bar / 34 MPa 1/16" Male NPT (ASME B1.20.1) Male Quick-test Brass
QTFT-1MB0 5,000 psi / 345 bar / 34 MPa 1/8" Male NPT (ASME B1.20.1) Male Quick-test Brass
QTFT-1MB1 3,000 psi / 207 bar / 21 MPa 1/8" Male NPT (ASME B1.20.1) Male Quick-test Brass
QTFT-1MS0 5,000 psi / 345 bar / 34 MPa 1/8" Male NPT (ASME B1.20.1) Male Quick-test Stainless Steel
QTFT-1MS1 3,000 psi / 207 bar / 21 MPa 1/8" Male NPT (ASME B1.20.1) Male Quick-test Stainless Steel

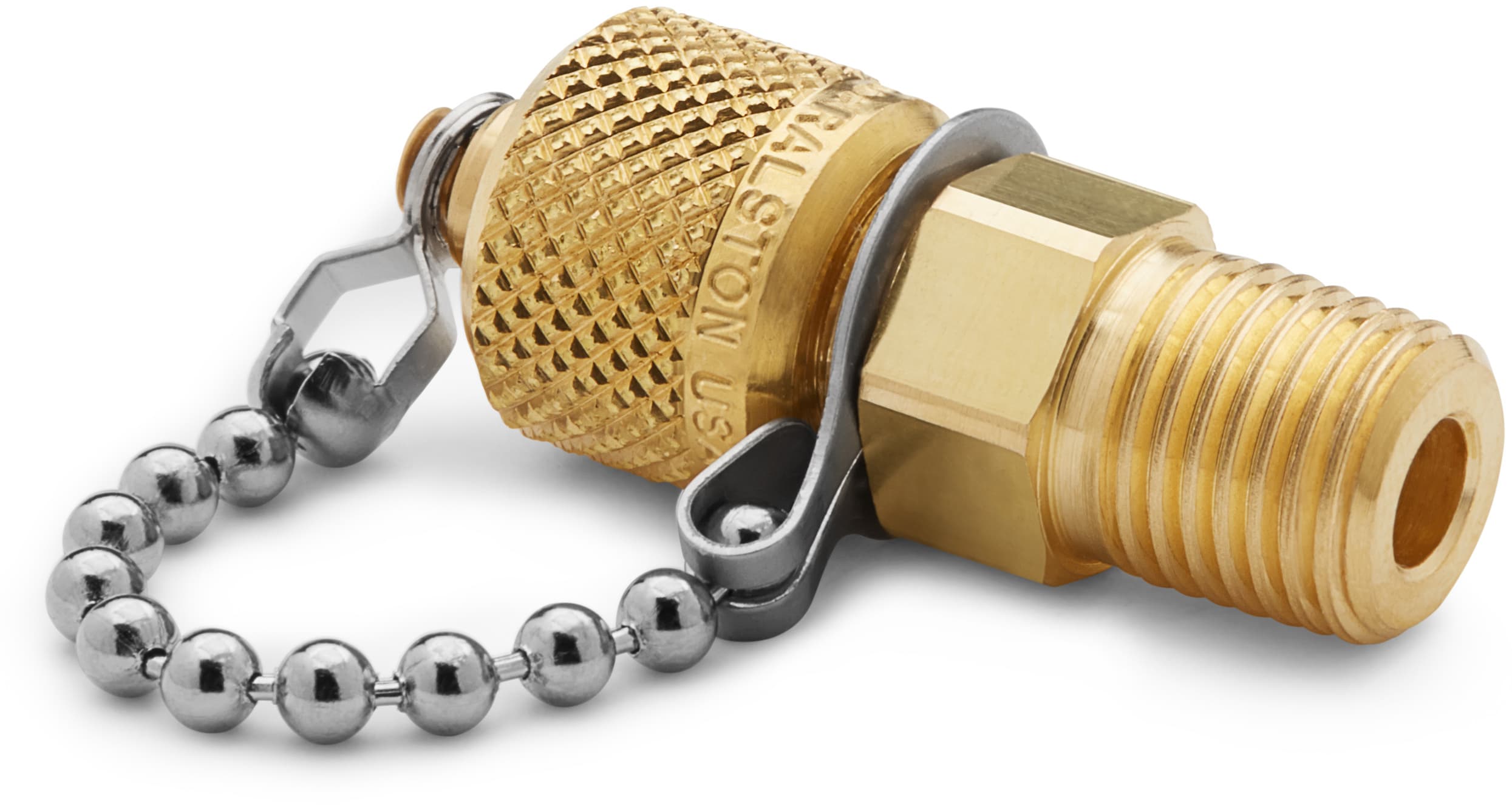

QTFT-2MB0 5,000 psi / 345 bar / 34 MPa 1/4" Male NPT (ASME B1.20.1) Male Quick-test Brass
QTFT-2MB1 3,000 psi / 207 bar / 21 MPa 1/4" Male NPT (ASME B1.20.1) Male Quick-test Brass
QTFT-2MS0 5,000 psi / 345 bar / 34 MPa 1/4" Male NPT (ASME B1.20.1) Male Quick-test Stainless Steel
QTFT-2MS1 3,000 psi / 207 bar / 21 MPa 1/4" Male NPT (ASME B1.20.1) Male Quick-test Stainless Steel
QTFT-3MB0 5,000 psi / 345 bar / 34 MPa 3/8" Male NPT (ASME B1.20.1) Male Quick-test Brass
QTFT-3MB1 3,000 psi / 207 bar / 21 MPa 3/8" Male NPT (ASME B1.20.1) Male Quick-test Brass
QTFT-3MS0 5,000 psi / 345 bar / 34 MPa 3/8" Male NPT (ASME B1.20.1) Male Quick-test Stainless Steel
QTFT-3MS1 3,000 psi / 207 bar / 21 MPa 3/8" Male NPT (ASME B1.20.1) Male Quick-test Stainless Steel
QTFT-4MB0 5,000 psi / 345 bar / 34 MPa 1/2" Male NPT (ASME B1.20.1) Male Quick-test Brass
QTFT-4MB1 3,000 psi / 207 bar / 21 MPa 1/2" Male NPT (ASME B1.20.1) Male Quick-test Brass
QTFT-4MS0 5,000 psi / 345 bar / 34 MPa 1/2" Male NPT (ASME B1.20.1) Male Quick-test Stainless Steel
QTFT-4MS1 3,000 psi / 207 bar / 21 MPa 1/2" Male NPT (ASME B1.20.1) Male Quick-test Stainless Steel
QTFT-6MB0 5,000 psi / 345 bar / 34 MPa 3/4" Male NPT (ASME B1.20.1) Male Quick-test Brass
QTFT-6MB1 3,000 psi / 207 bar / 21 MPa 3/4" Male NPT (ASME B1.20.1) Male Quick-test Brass
