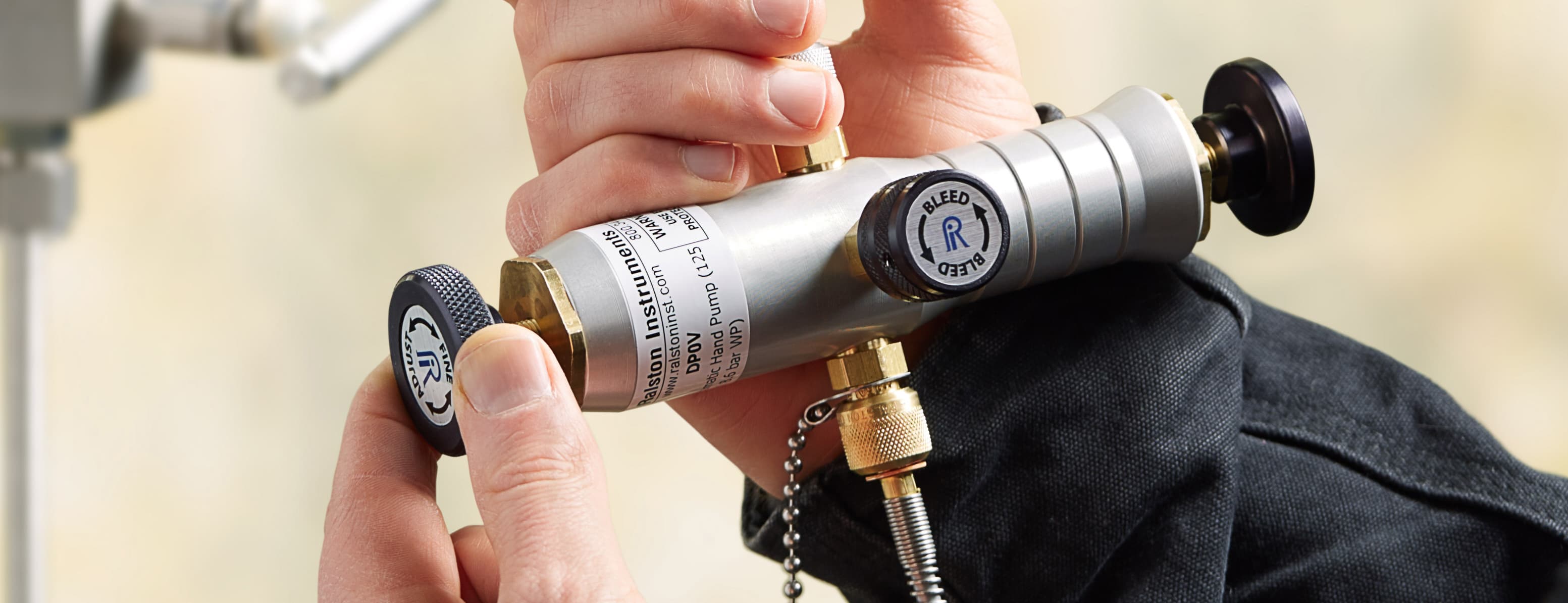

Pneumatic Cylinder Hand Pumps

Precise Low Pressure Calibration

Economical solution for calibration of low pressure differential transmitters. Simple direct-acting pump action with fine adjustment piston makes an easy and precise pressure setting.

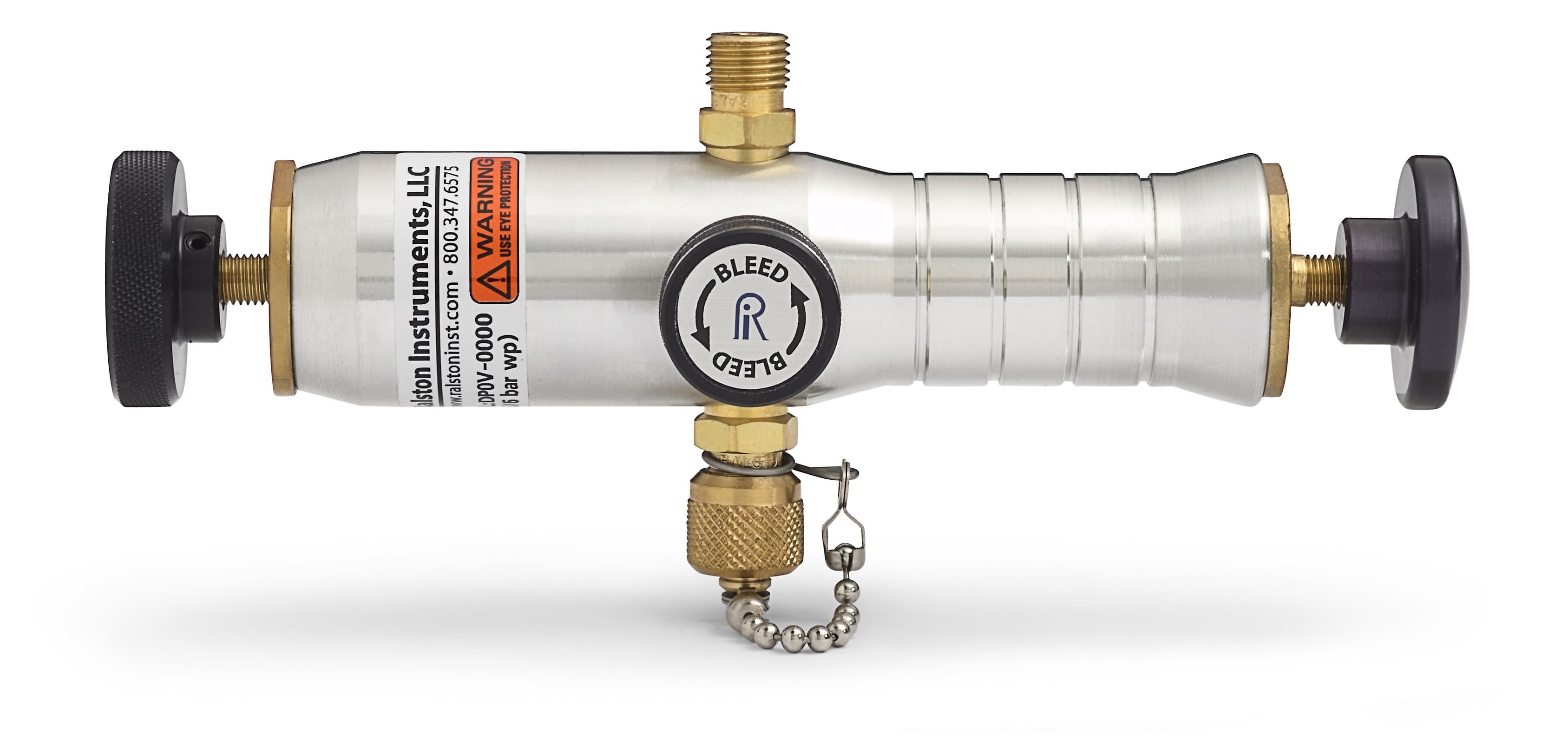

Pneumatic Cylinder Hand Pumps

The ideal solution for very precise low-pressure calibration or differential pressure testing using an external pressure calibrator as the reference

Model Max Pressure Reference Connection Pressure Reference Process Connection
DP0V-0000 125 PSI / 9 bar / 900 kPa None None 1/4" Male NPT

Pneumatic Cylinder Hand Pumps with Gauge Connection

Perform very precise low pressure calibration or differential pressure calibration using an attached gauge or calibrator (gauge and calibrator not included)

Model Max Pressure Reference Connection Pressure Reference Process Connection
DP0V-1MBA 125 PSI / 9 bar / 900 kPa 1/8" Male NPT None 1/4" Male NPT
DP0V-2MBA 125 PSI / 9 bar / 900 kPa 1/4" Male NPT None 1/4" Male NPT
DP0V-2FBA 125 PSI / 9 bar / 900 kPa 1/4" Female NPT None 1/4" Male NPT
DP0V-2FBA-RG 125 PSI / 9 bar / 900 kPa 1/4" Female BSPP (G1/4) None 1/4" Female BSPP (G1/4)
DP0V-3FBA-RG 125 PSI / 9 bar / 900 kPa 3/8" Female BSPP (G3/8) None 1/4" Female BSPP (G1/4)
DP0V-4FBA-RG 125 PSI / 9 bar / 900 kPa 1/2" Female BSPP (G1/2) None 1/4" Female BSPP (G1/4)

Pneumatic Cylinder Hand Pump Calibration Kits with Ralston FieldLab

Pump and pressure gauge combination includes everything needed to perform accurate, precise low pressure calibrations

Model Max Pressure Pressure Reference Process Connection
DP0V-15PSIG-FL 125 PSI / 9 bar / 900 kPa Pressure FieldLab, 15 psi / 1 bar / 100 kPa 1/4" Male NPT
DP0V-30PSIG-FL 30 PSI / 3 bar / 300 kPa Pressure FieldLab, 30 psi / 2 bar / 200 kPa 1/4" Male NPT
DP0V-100PSIG-FL 125 PSI / 9 bar / 900 kPa Pressure FieldLab, 100 psi / 7 bar / 700 kPa 1/4" Male NPT

Pneumatic Cylinder Hand Pump Calibration Kits with Digital Gauge

Pump and pressure gauge combination includes everything needed to perform accurate, precise low pressure calibrations

Model Max Pressure Reference Connection Pressure Reference Process Connection
DP0V-15PSIG-D 125 PSI / 9 bar / 900 kPa 1/4" Female NPT Digital pressure gauge, 15 PSIG Pressure 1/4" Male NPT
DP0V-30PSIG-D 125 PSI / 9 bar / 900 kPa 1/4" Female NPT Digital pressure gauge, 30 PSIG Pressure 1/4" Male NPT
DP0V-100PSIG-D 125 PSI / 9 bar / 900 kPa 1/4" Female NPT Digital pressure gauge, 100 PSIG Pressure 1/4" Male NPT
