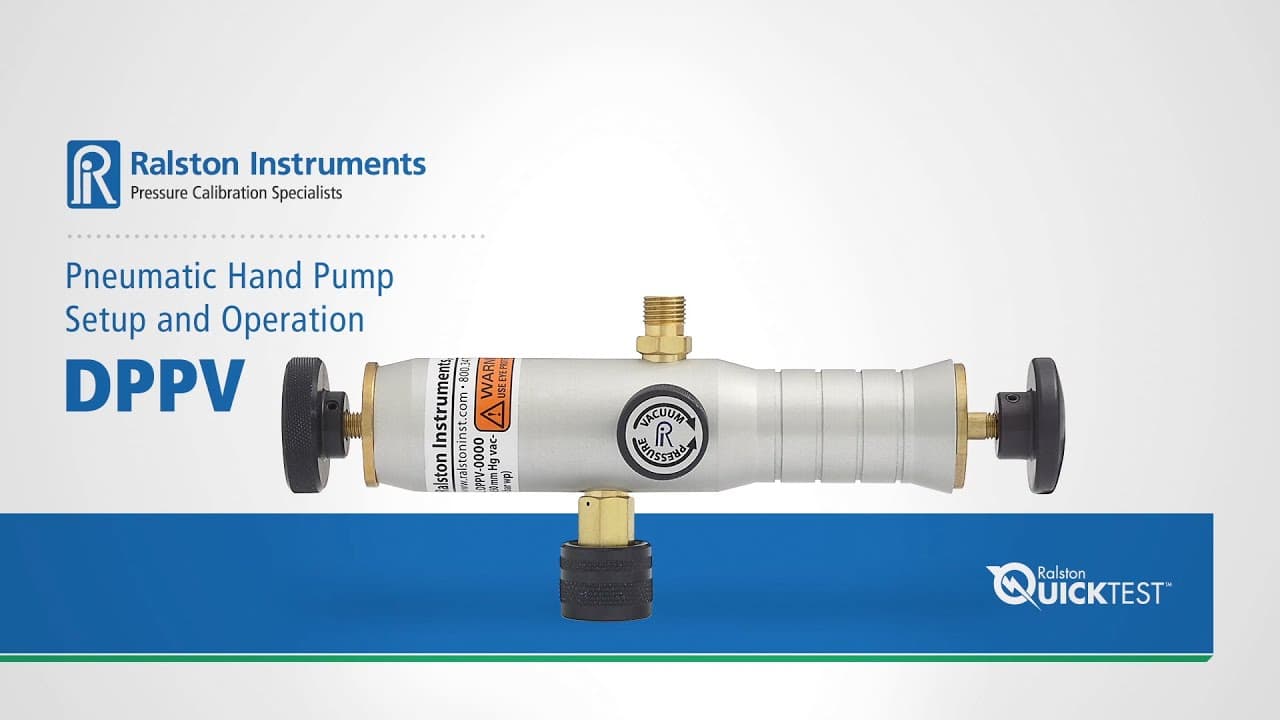

Pneumatic Pressure/Vacuum Hand Pump Support

Ideal solution for either differential pressure or vacuum calibration using precision test gauge or pressure calibrator as the pressure reference. Not for use in Oxygen systems.

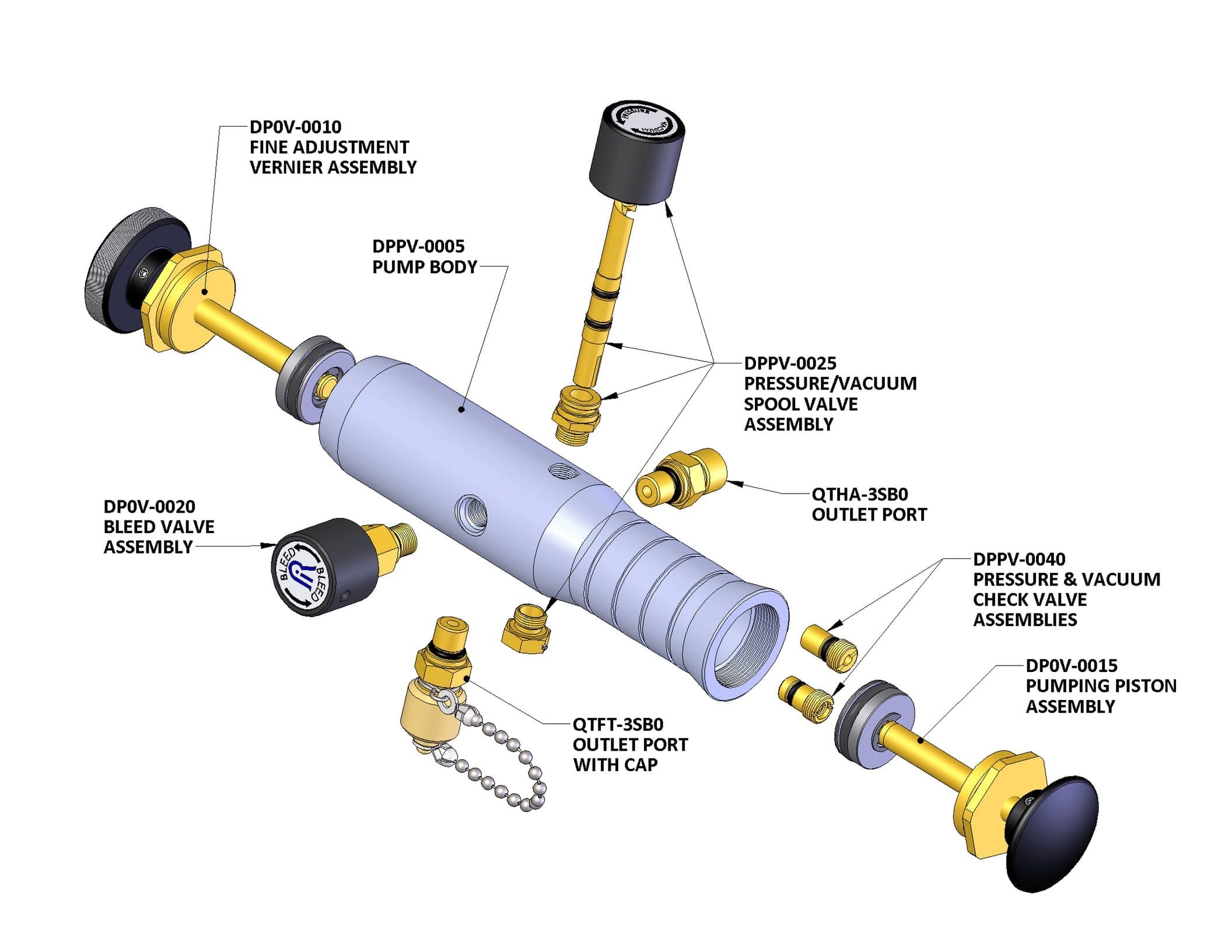

DPPV Replacement Parts

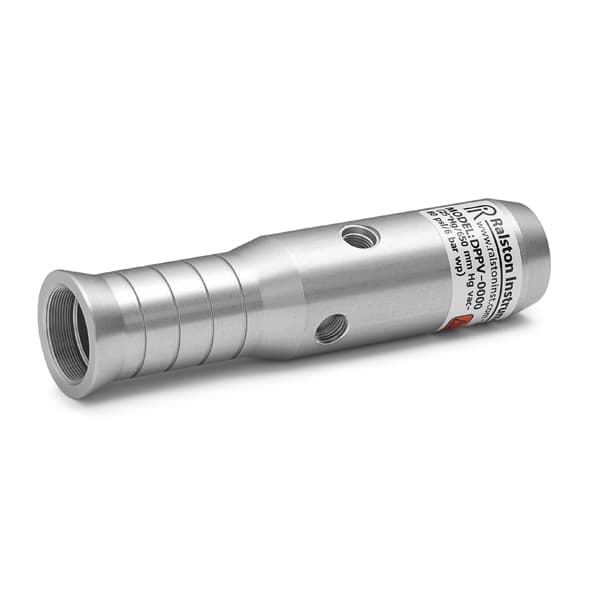

DPPV pump body, aluminum

DPPV-0005

Silver aluminum body helps reduce pressure change due to the heat of the sun or your hand

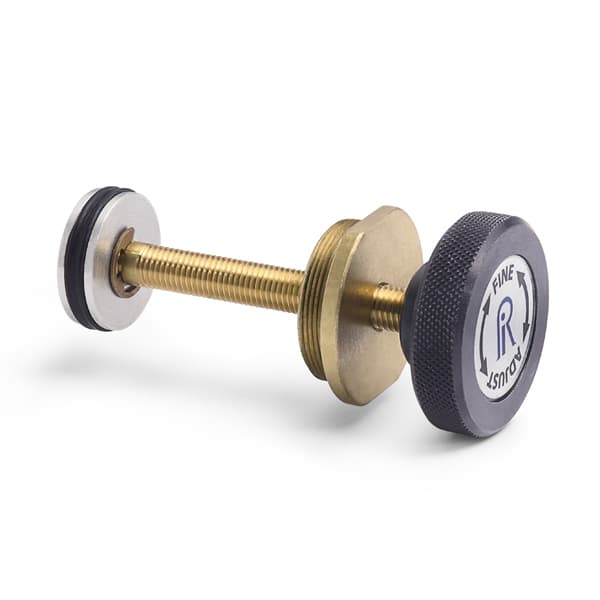

DP0V, DV0V, DPPV fine adjustment vernier assembly

DP0V-0010

Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers

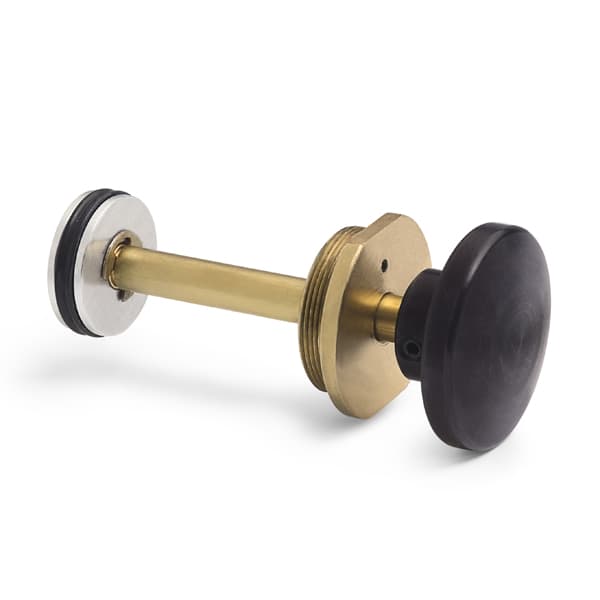

DP0V, DV0V, DPPV pumping piston assembly

DP0V-0015

Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers

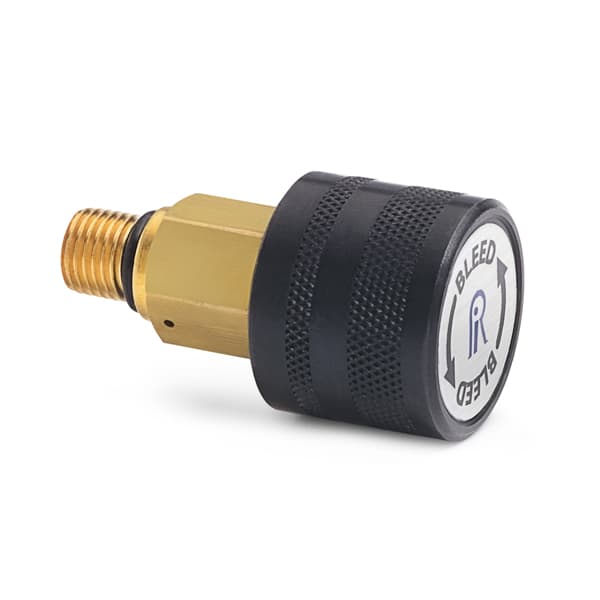

APGV, AP0V, DP0V, DV0V, DPPV, QTCM bleed valve assembly, brass

DP0V-0020

Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers

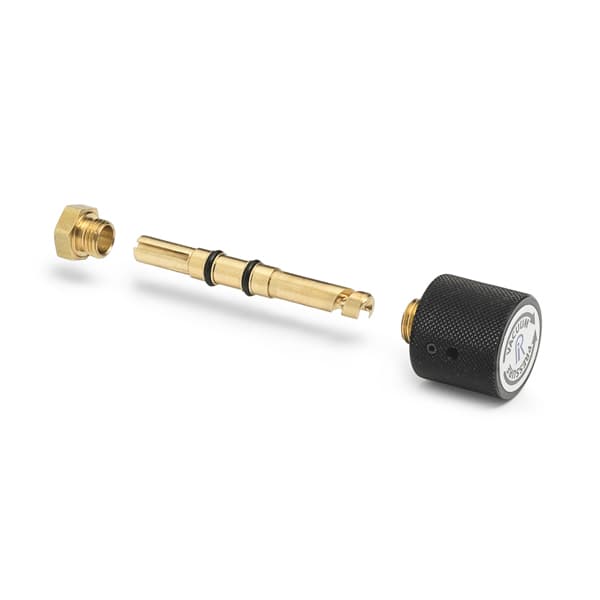

DPPV Pressure / vacuum spool valve assembly, brass

DPPV-0025

Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers

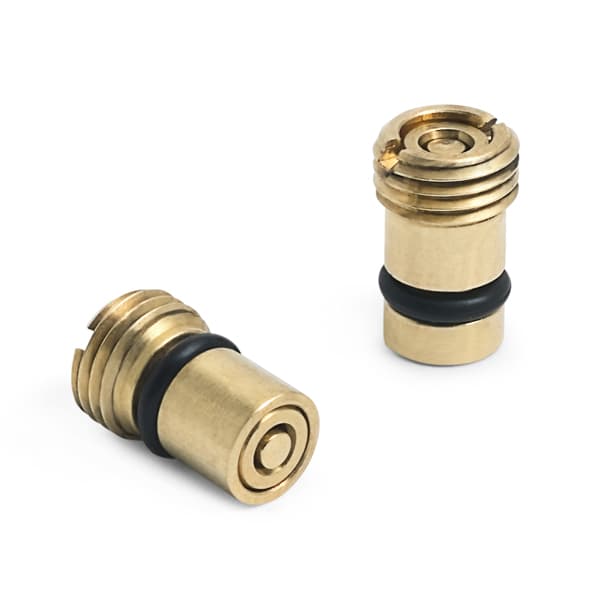

(1) DPPV pressure check valve assembly, (1) DPPV vacuum check valve assembly, brass

DPPV-0040

Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers

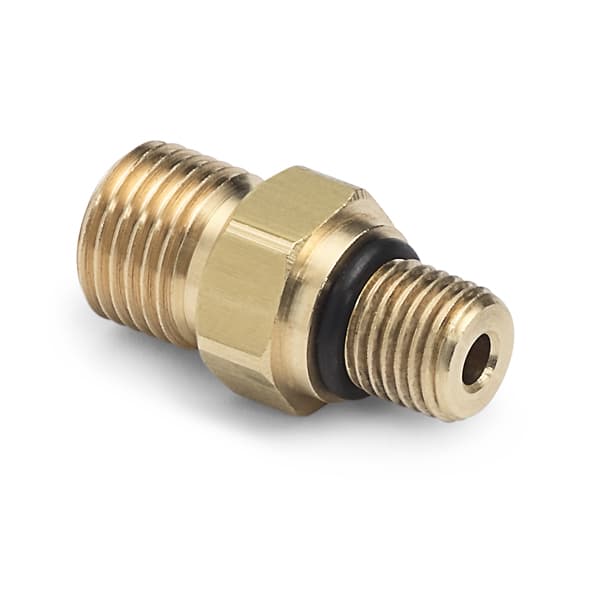

3/8-24 Male SAE X Male Quick-test outlet connection, brass

QTHA-3SB0

3/8-24 Male SAE X Male Quick-test outlet connection, brass

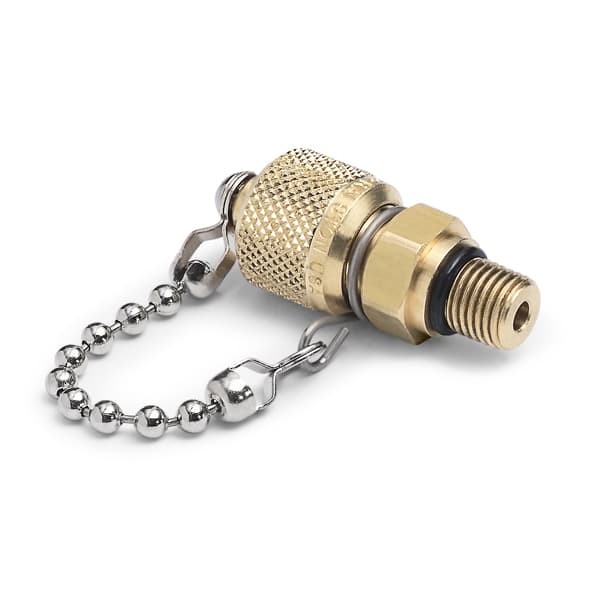

3/8-24 Male SAE X Male Quick-test outlet connection with cap and chain, brass

QTFT-3SB0

3/8-24 Male SAE X Male Quick-test outlet connection with cap and chain, brass

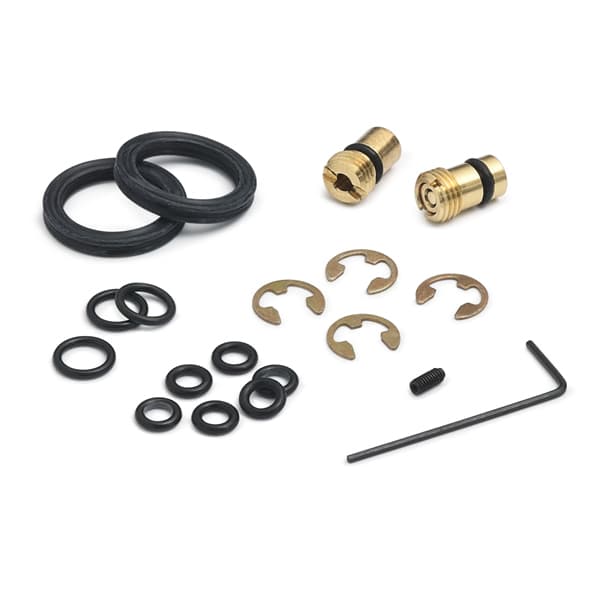

DPPV pumps repair kit, includes (1) pressure and (1) vacuum check valve

DPPV-REPK

Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers
