QTHR
Quick-test Hoses with Durable Hose Reel Kits

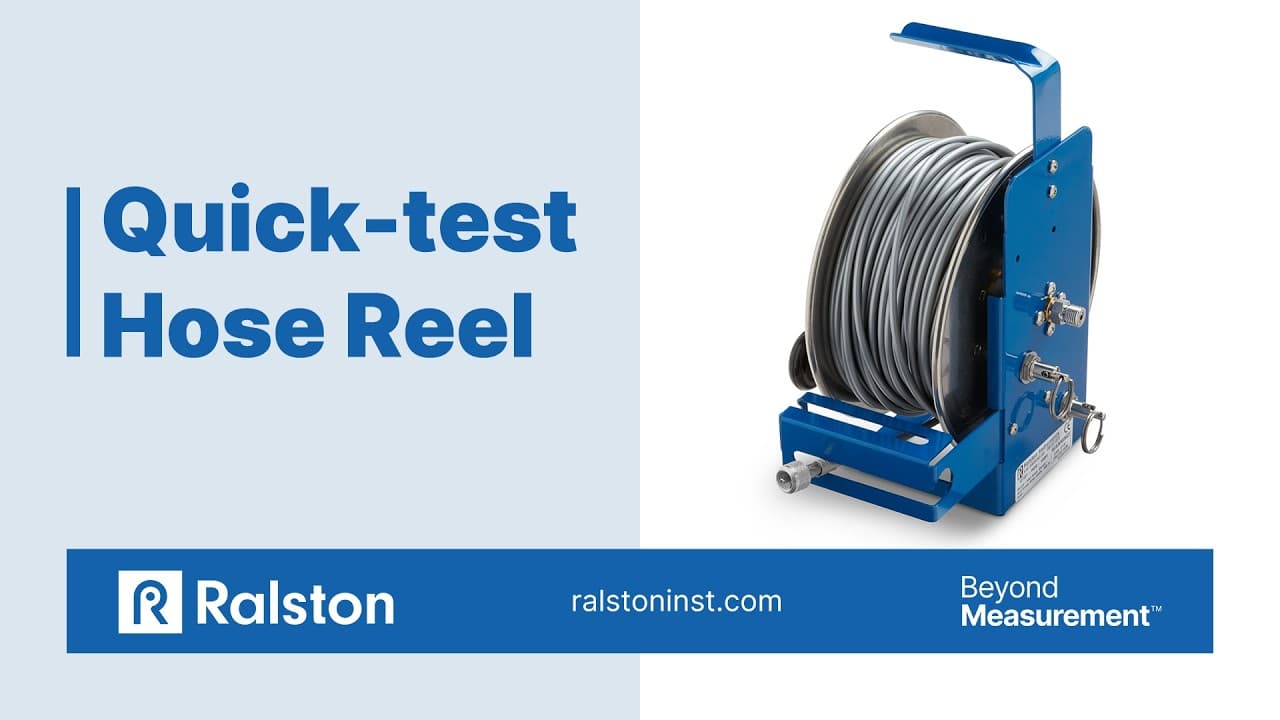

See the Hose Reel in Action
Go the Distance

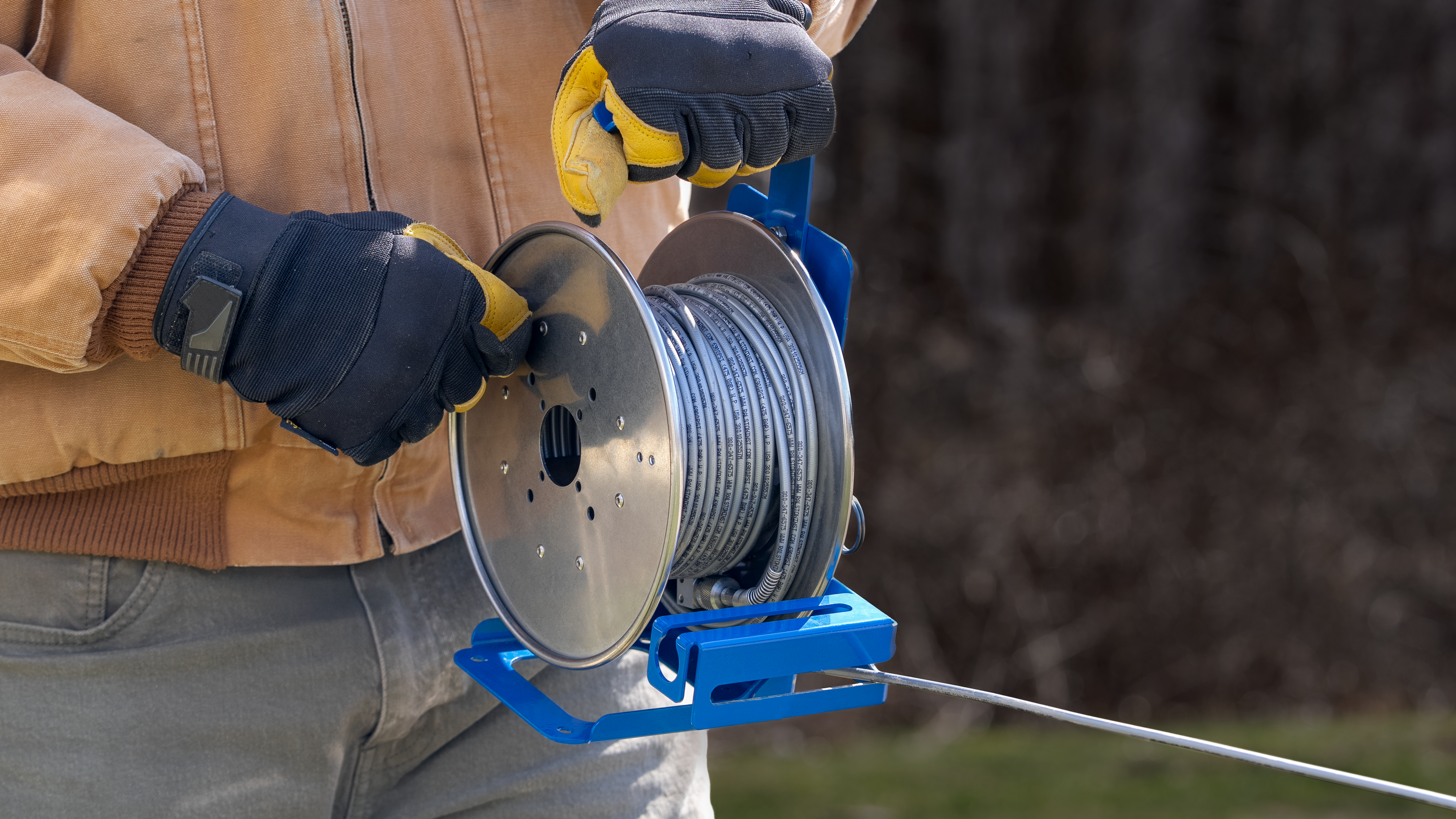

Run tests from farther away and manage your Quick-test hoses more efficiently with a heavy duty hose reel that helps keep your hoses organized and ready to use.

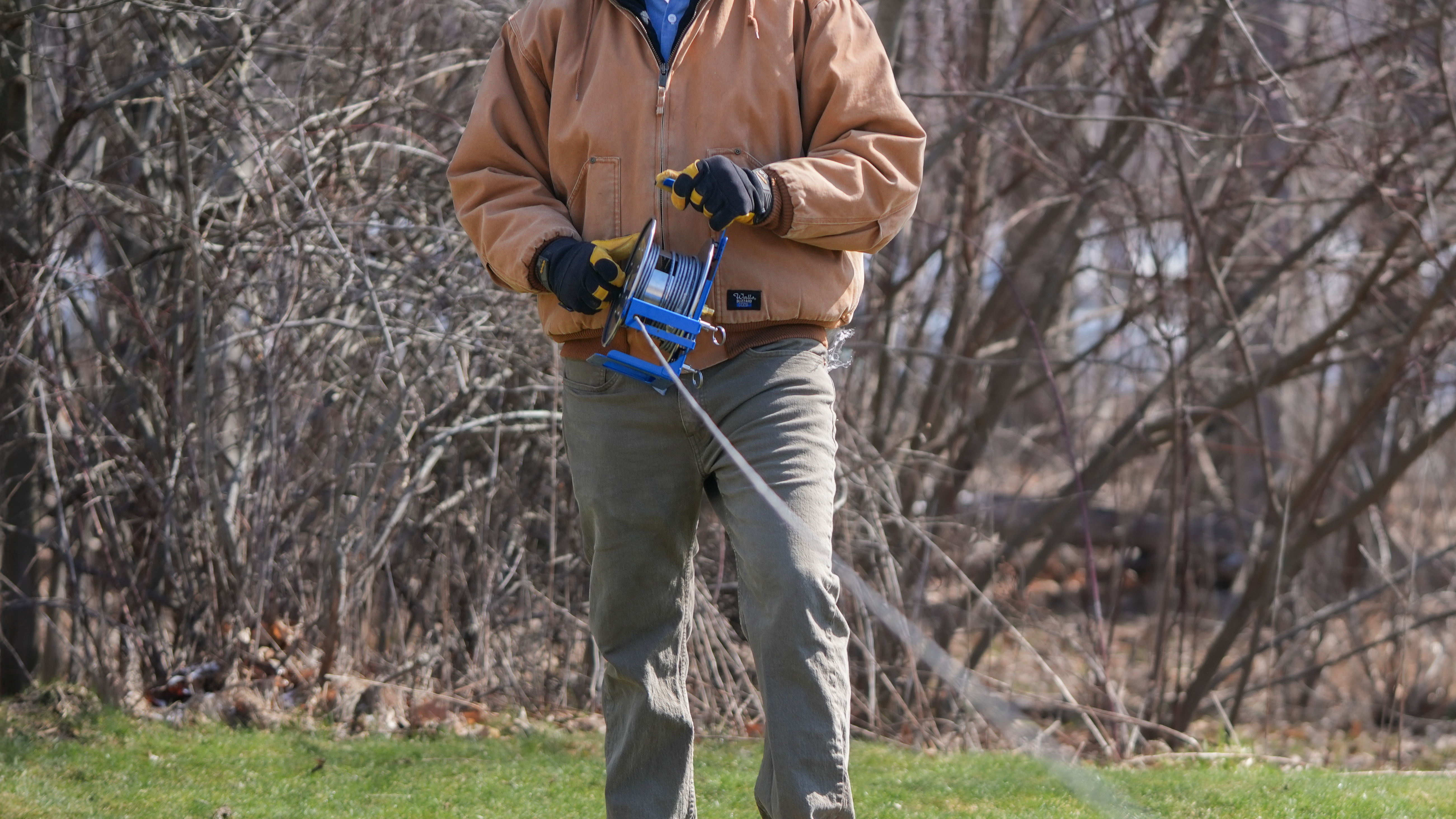

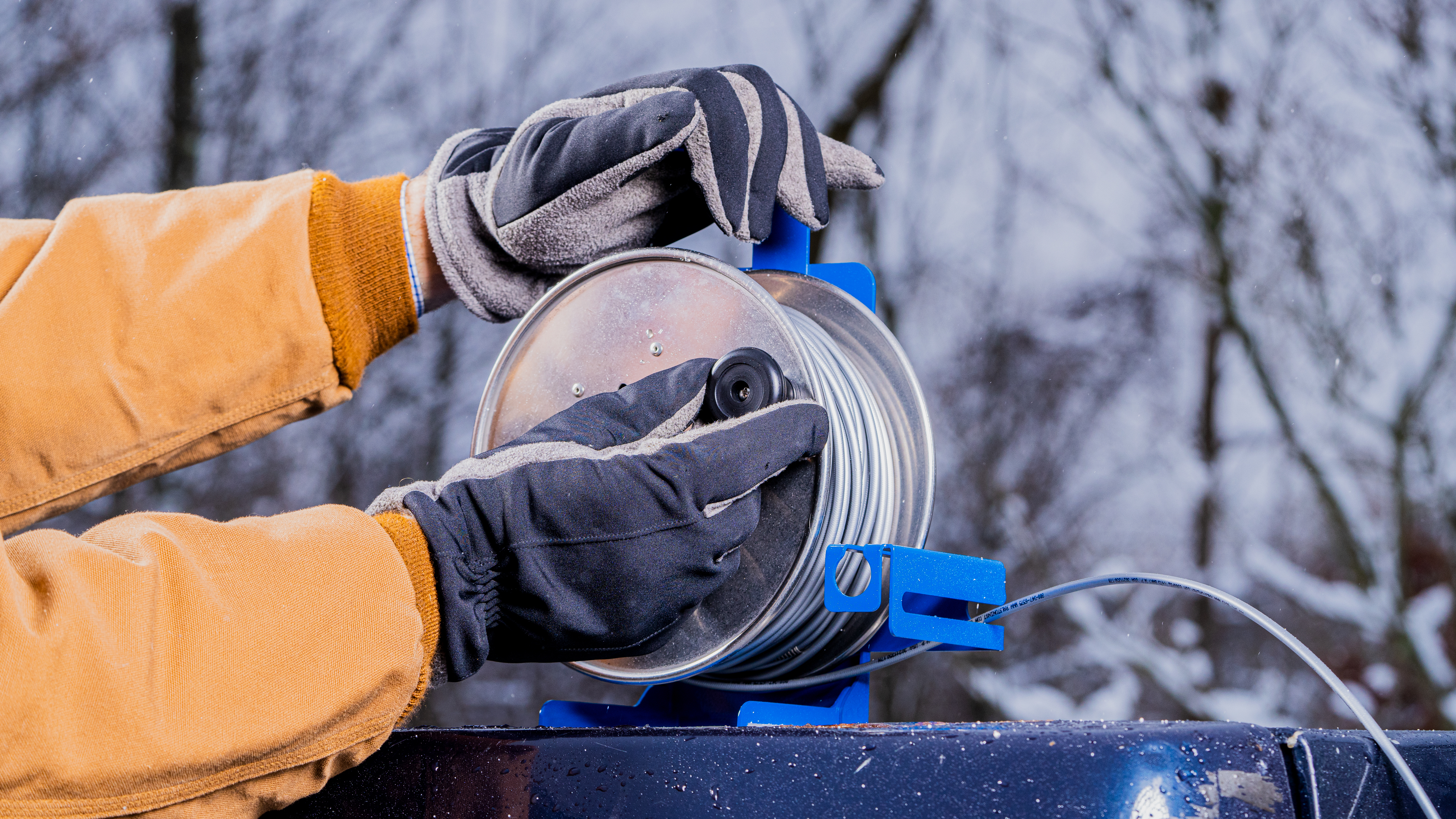

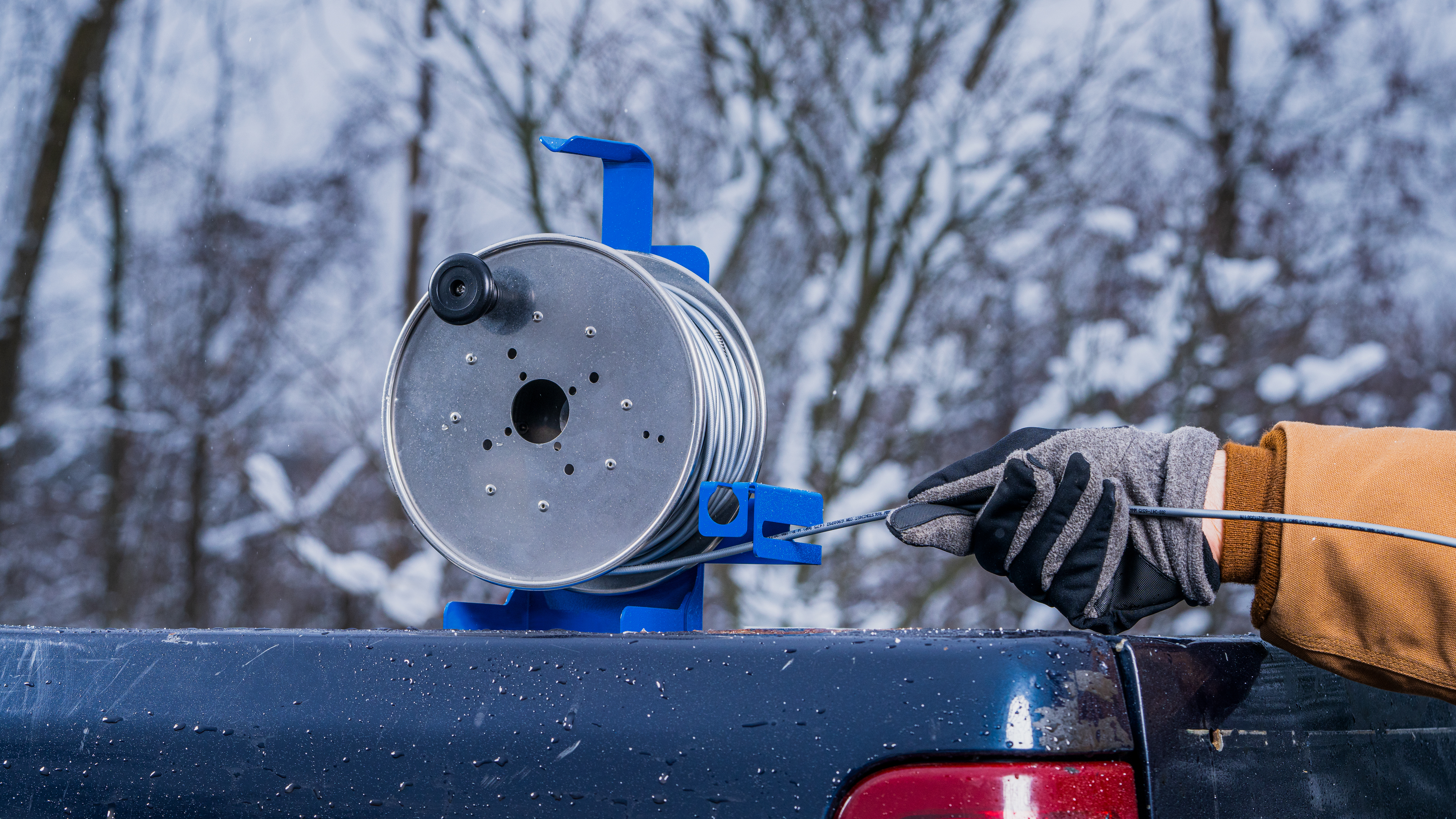

Secure it to your truck for easy access or connect it at the gas source and carry it to the test site. Either way it’ll provide years of reliable performance in tough testing conditions.
User-Friendly Features
- Convenient handle for easy transport
- Sturdy crank for smooth winding and unwinding
- Drag mechanism that prevents the hose from unspooling too quickly
- Locking pin for transport or when not in use
- Easy-to-mount base plate for quick installation on walls or trucks
Rugged Dependability
- Powder-coated steel frame holds up in all weather conditions
- Can be mounted to a truck or wall
- Includes our low volume, high pressure Quick-test hoses for leak-free connections without a wrench and thread tape
- Hose stays pressurized while spooled and can be extended or retracted under pressure
- Performs at working pressures up to 5,000 psi.
Part of the Ralston Quick-test™ System of safe, stable, leak-free connections without a wrench.
QTHR Hose Reel Models
Models available in imperial and metric length Quick-test hoses, with your choice of brass or stainless steel connections.
| Model | Hose Length |
|---|---|
| QTHR-0000 | |
| QTHR-QT-50ft | 50 ft / 15.24 m |
| QTHR-QS-50ft | 50 ft / 15.24 m |
| QTHR-QT-100ft | 100 ft / 30.48m |
| QTHR-QS-100ft | 100 ft / 30.48m |
| QTHR-QT-10m | 10 m / 32.80 ft |
| QTHR-QS-10m | 10 m / 32.80 ft |
| QTHR-QT-15m | 15 m / 49.21 ft |
| QTHR-QS-15m | 15 m / 49.21 ft |
| QTHR-QT-20m | 20 m / 65.61 ft |
| QTHR-QS-20m | 20 m / 65.61 ft |
| QTHR-QT-30m | 30 m / 98.42 ft |
| QTHR-QS-30m | 30 m / 98.42 ft |
