Part Number: XTFT-PLGS

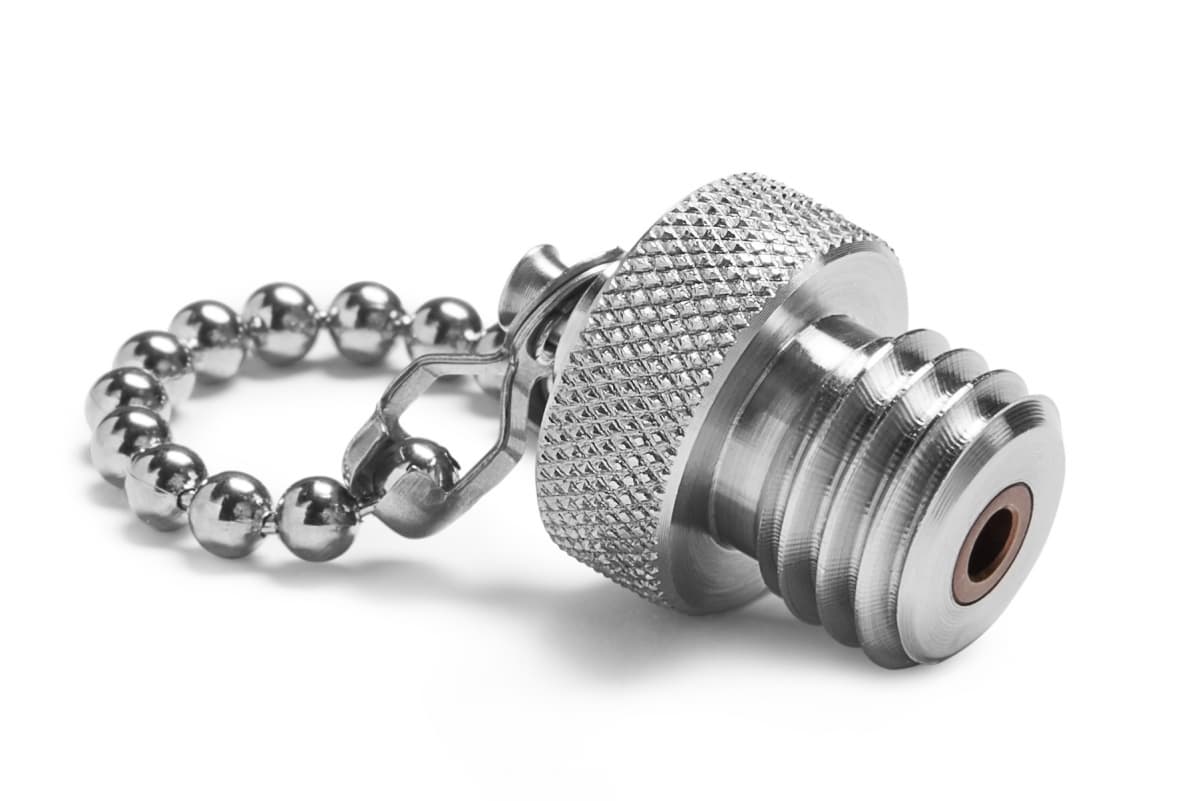

Quick-test XT Hose plug, and chain only, S.S.
Plug the end of a Quick-test XT hose to prevent fluid leakage
Specifications
| Weight | 1.07 oz / 30 grams |
|---|---|
| Length | 0.99 in / 26 mm |
| Width | 0.76 in / 20 mm |
| Height | 0.76 in / 20 mm |
| Country of origin | USA |
| Dimensions A | 0 In / 0.00 mm |
| Dimensions B | 0 In / 0.00 mm |
| Materials | Stainless Steel |
| Max Operating Temperature | 140 °F / 60 °C |
| Max Pressure | 10000 PSI / 700 bar / 70 MPa |
| Min Operating Temperature | 0 °F / -18 °C |
| Seal Materials | Teflon, Viton |
| End 1 Connector | Male Quick-test XT |
| End 1 Direction | Left |
