Part Number: XTXT-HOS-8ft

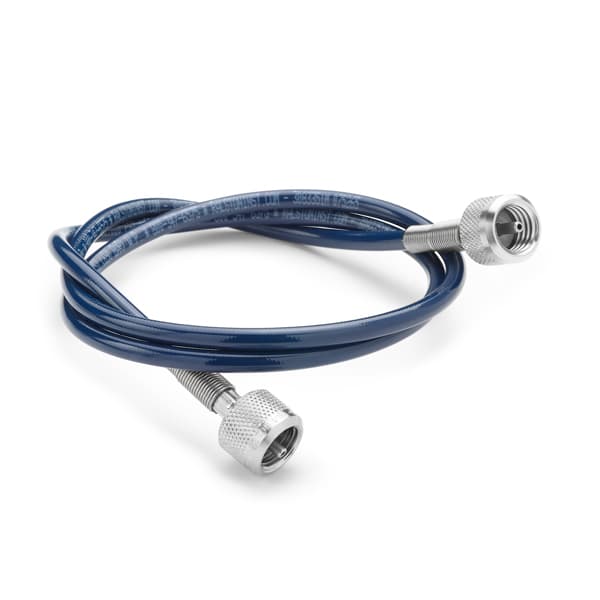

Quick-test XT 10,000 psi hose, S.S. hose ends, 8ft long
10,000 psi (689 bar) working pressure Microbore hoses that provide a very quick, low volume, high pressure way of connecting to any pressure instrumentation, hand pump, calibration source or device under test
Request a Quote
To receive pricing, request a quote and a Ralston Distributor will respond.
Specifications
| Weight | 4.51 oz / 130 grams |
|---|---|
| Width | 0.75 in / 20 mm |
| Height | 0.75 in / 20 mm |
| Burst Pressure | 40000 PSI / 2760 bar / 275 MPa |
| Color | Blue |
| Country of origin | USA |
| Fluid Media | Water,Petroleum Based Oil,Air,Inert Gas |
| Inner Diameter | 0.08 In / 3.00 mm |
| Length | 8 ft / 3.00 m |
| Materials | Reinforced Polyamide, Stainless Steel |
| Max Operating Temperature | 140 °F / 60 °C |
| Max Pressure | 10000 PSI / 700 bar / 70 MPa |
| Media Compatibility | Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water |
| Min Operating Temperature | -40 °F / -40 °C |
| Minimum Bend Radius | 1 In / 26 mm |
| Outer Diameter | 0.24 In / 7.00 mm |
| Type | XT |
| Hose End 1 | Female Quick-test XT, stainless steel |
| Hose End 2 | Female Quick-test XT, stainless steel |
