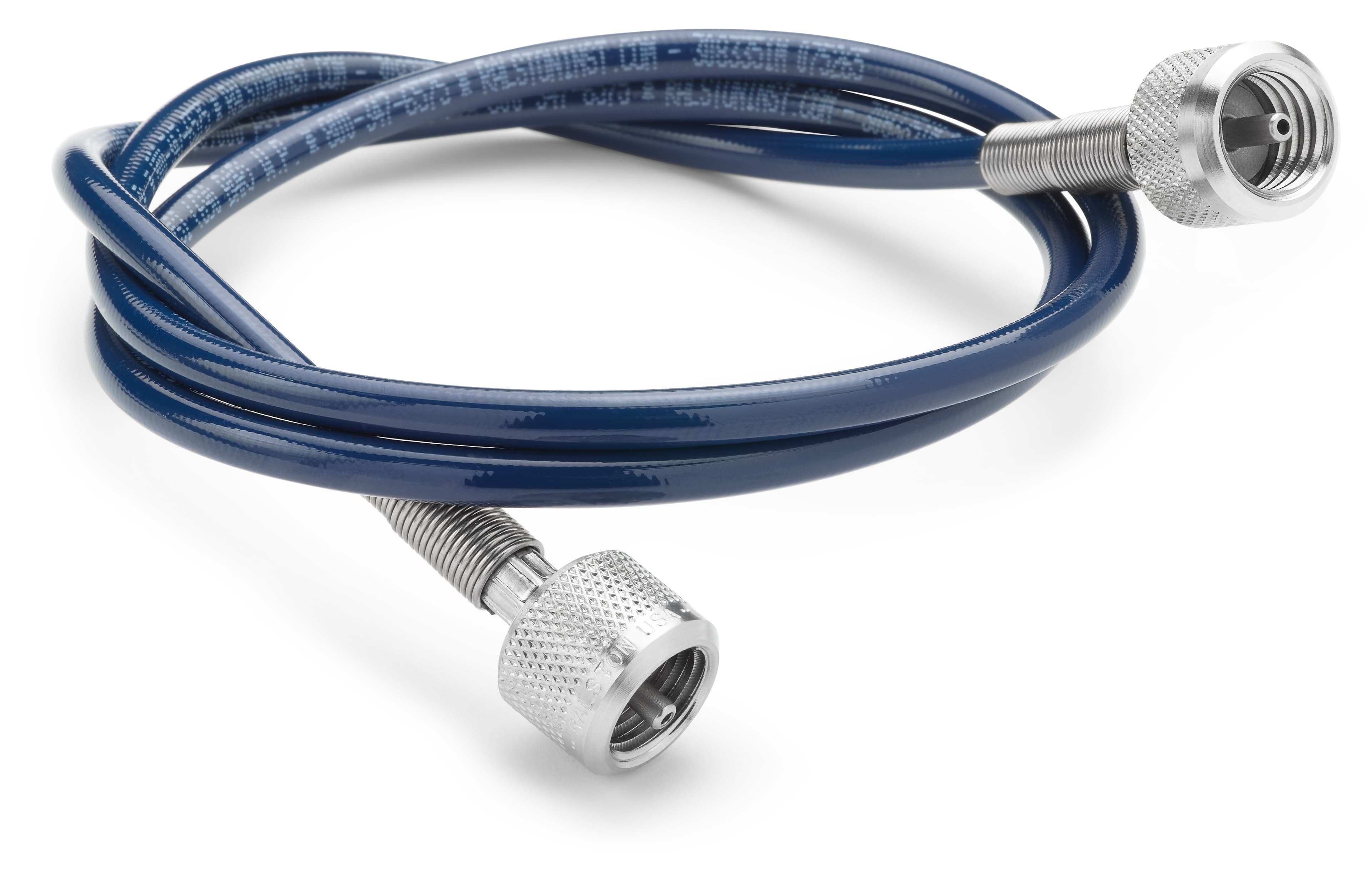

Ralston Quick-test XT Hoses

10,000 psi (689 bar) working pressure Microbore hoses that provide a very quick, low volume, high pressure way of connecting to any pressure instrumentation, hand pump, calibration source or device under test

  • Low volume reduces the pumping effort or compressed gas usage in pressure calibration

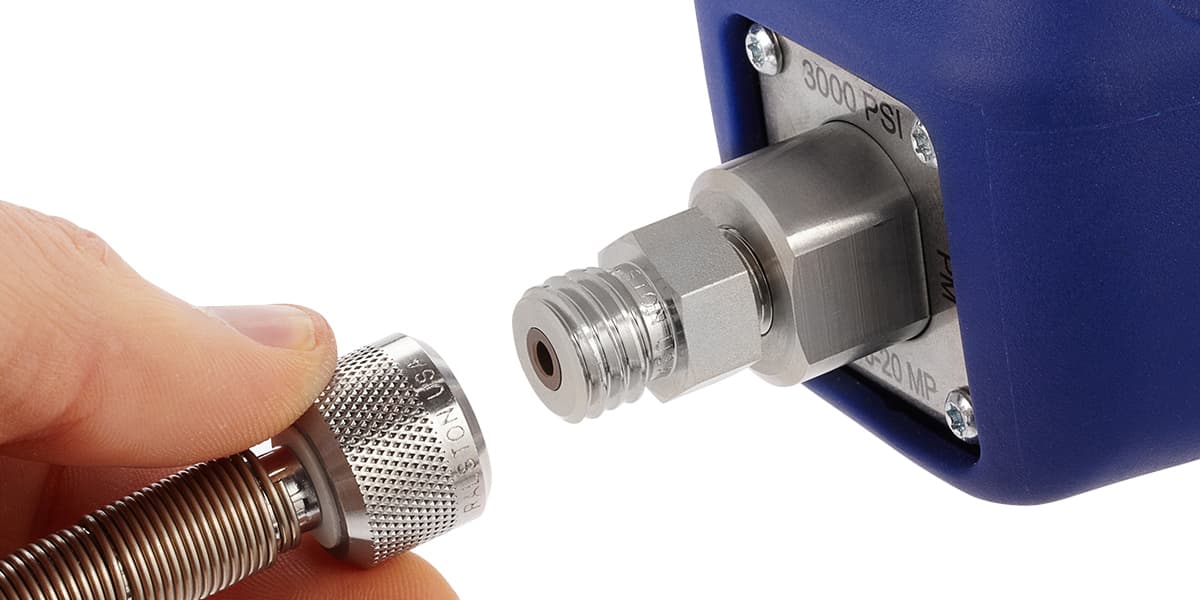

  • No thread sealant required – connect to adapters without wrenches, thread sealant or thread tape
  • Bubble tight connections to 10000 psi (689 bar) with no moving parts reduces maintenance to almost zero
  • Hose is hard to break and very flexible
  • Adapt from hose to virtually any device under test with only one connection
  • A corrosion resistant strain-relief on each hose end reduces wear and dramatically increases hose life
  • Hose is not recommended for Helium or Argon applications
  • Hose is pin-pricked for use in Natural Gas applications
  • Quick-test XT hoses are NOT compatible with QTHA adapters. Please use XTHA adapters
  • Made in USA

Ralston Quick-test XT Hoses (Feet)

Model Hose End 1 Hose End 2 Outer Diameter Inner Diameter Length Maximum Working Pressure
XTXT-HOS-2ft Female Quick-test XT, stainless steel Female Quick-test XT, stainless steel 0.24 in / 0.61 cm 0.08 in / 0.20 cm 2 ft / 60.96 cm 10,000 psi / 689 bar / 69 MPa
XTXT-HOS-3ft Female Quick-test XT, stainless steel Female Quick-test XT, stainless steel 0.24 in / 0.61 cm 0.08 in / 0.20 cm 3 ft / 91.44 cm 10,000 psi / 689 bar / 69 MPa
XTXT-HOS-5ft Female Quick-test XT, stainless steel Female Quick-test XT, stainless steel 0.24 in / 0.61 cm 0.08 in / 0.20 cm 5 ft / 1.52 m 10,000 psi / 689 bar / 69 MPa
XTXT-HOS-6ft Female Quick-test XT, stainless steel Female Quick-test XT, stainless steel 0.24 in / 0.61 cm 0.08 in / 0.20 cm 6 ft / 1.83 m 10,000 psi / 689 bar / 69 MPa
XTXT-HOS-8ft Female Quick-test XT, stainless steel Female Quick-test XT, stainless steel 0.24 in / 0.61 cm 0.08 in / 0.20 cm 8 ft / 2.44 m 10,000 psi / 689 bar / 69 MPa
XTXT-HOS-10ft Female Quick-test XT, stainless steel Female Quick-test XT, stainless steel 0.24 in / 0.61 cm 0.08 in / 0.20 cm 10 ft / 3.05 m 10,000 psi / 689 bar / 69 MPa
XTXT-HOS-20ft Female Quick-test XT, stainless steel Female Quick-test XT, stainless steel 0.24 in / 0.61 cm 0.08 in / 0.20 cm 20 ft / 6.10 m 10,000 psi / 689 bar / 69 MPa
XTXT-HOS-50ft Female Quick-test XT, stainless steel Female Quick-test XT, stainless steel 0.24 in / 0.61 cm 0.08 in / 0.20 cm 50 ft / 15.24 m 10,000 psi / 689 bar / 69 MPa
XTXT-HOS-100ft Female Quick-test XT, stainless steel Female Quick-test XT, stainless steel 0.24 in / 0.61 cm 0.08 in / 0.20 cm 100 ft / 30.48 m 10,000 psi / 689 bar / 69 MPa

Ralston Quick-test XT Hoses (Meters)

Model Hose End 1 Hose End 2 Outer Diameter Inner Diameter Length Maximum Working Pressure
XTXT-HOS-1m Female Quick-test XT, stainless steel Female Quick-test XT, stainless steel 0.24 in / 0.61 cm 0.08 in / 0.20 cm 3 ft 3 in / 100.00 cm 10,000 psi / 689 bar / 69 MPa
XTXT-HOS-1.5m Female Quick-test XT, stainless steel Female Quick-test XT, stainless steel 0.24 in / 0.61 cm 0.08 in / 0.20 cm 4 ft 11 in / 1.50 m 10,000 psi / 689 bar / 69 MPa
XTXT-HOS-2m Female Quick-test XT, stainless steel Female Quick-test XT, stainless steel 0.24 in / 0.61 cm 0.08 in / 0.20 cm 6 ft 6 in / 2.00 m 10,000 psi / 689 bar / 69 MPa
XTXT-HOS-5m Female Quick-test XT, stainless steel Female Quick-test XT, stainless steel 0.24 in / 0.61 cm 0.08 in / 0.20 cm 16 ft 4 in / 5.00 m 10,000 psi / 689 bar / 69 MPa
XTXT-HOS-10m Female Quick-test XT, stainless steel Female Quick-test XT, stainless steel 0.24 in / 0.61 cm 0.08 in / 0.20 cm 32 ft 9 in / 10.00 m 10,000 psi / 689 bar / 69 MPa
