Sanitary Pressure Gauge

  • Features
  • Accessories
  • Models
  • Software
  • Support

Reference-grade accuracy in a durable, hand-held gauge

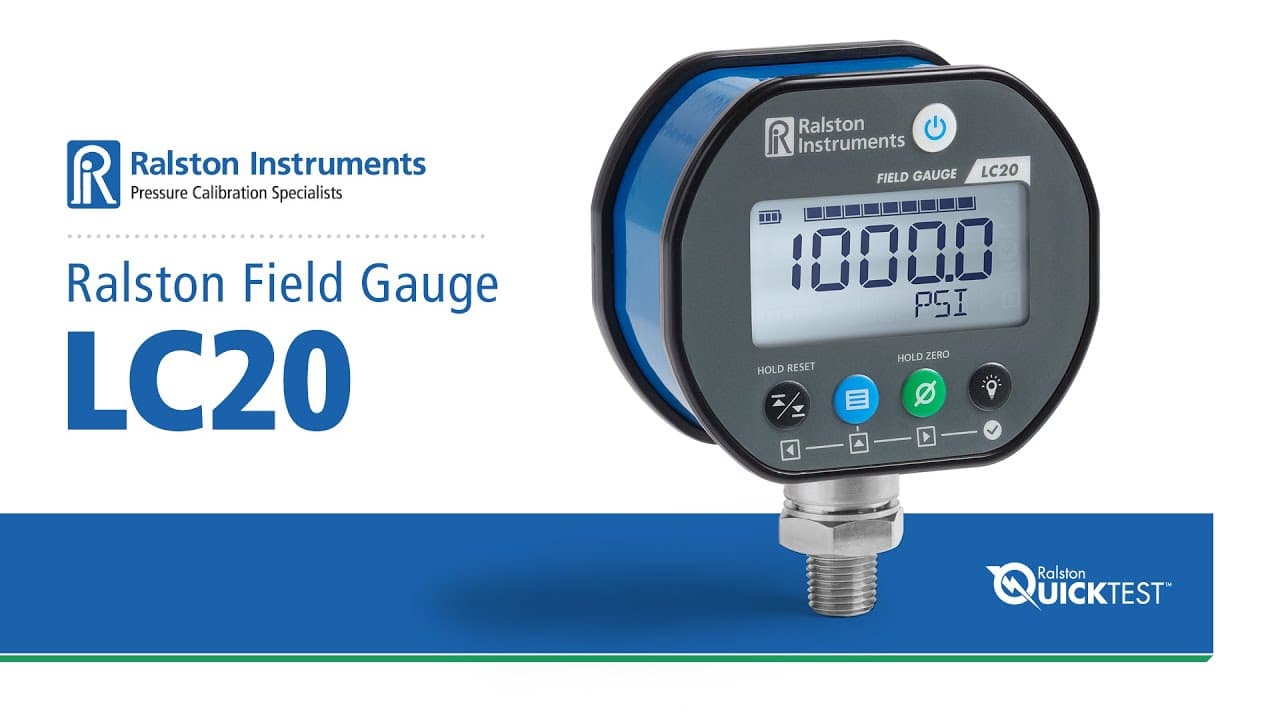

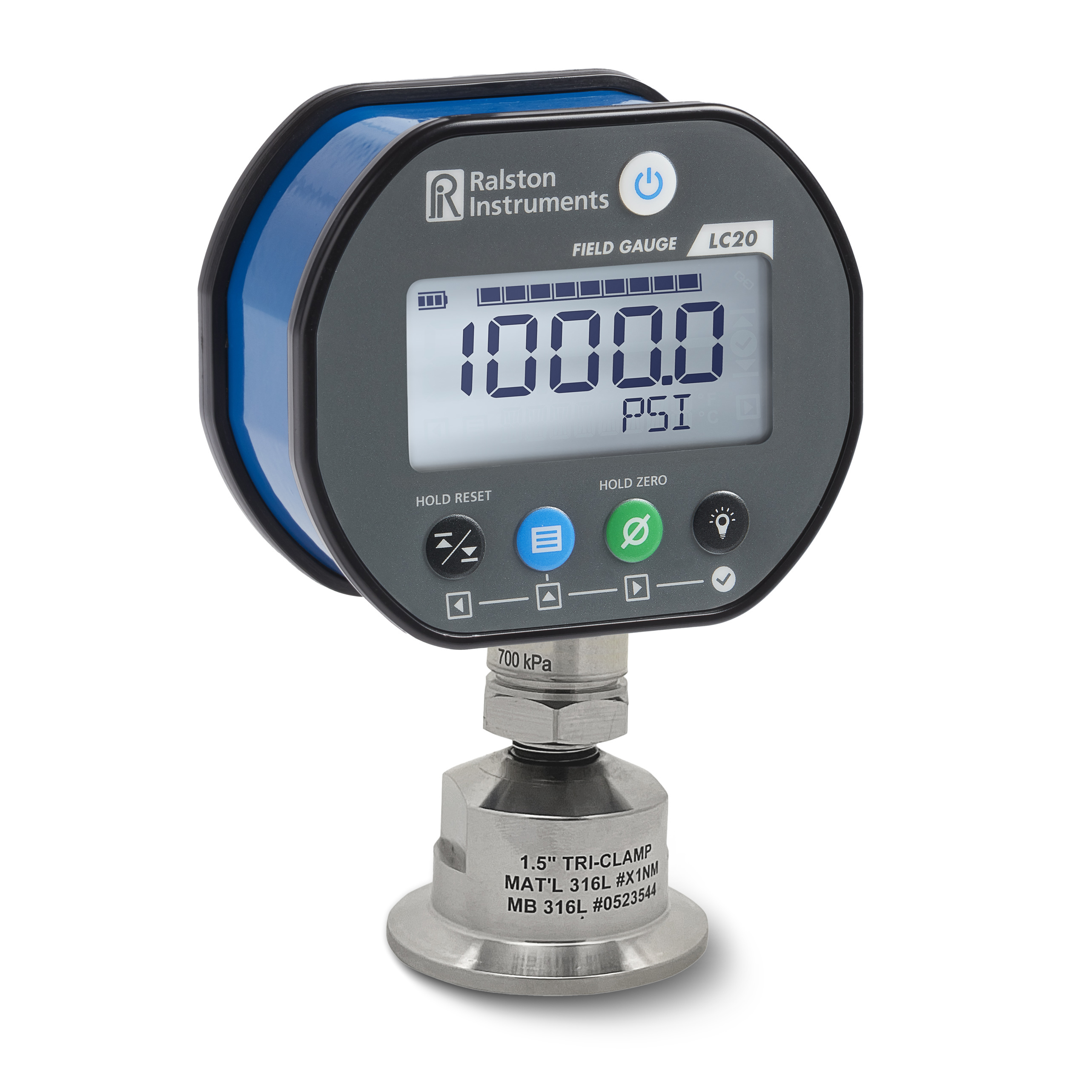

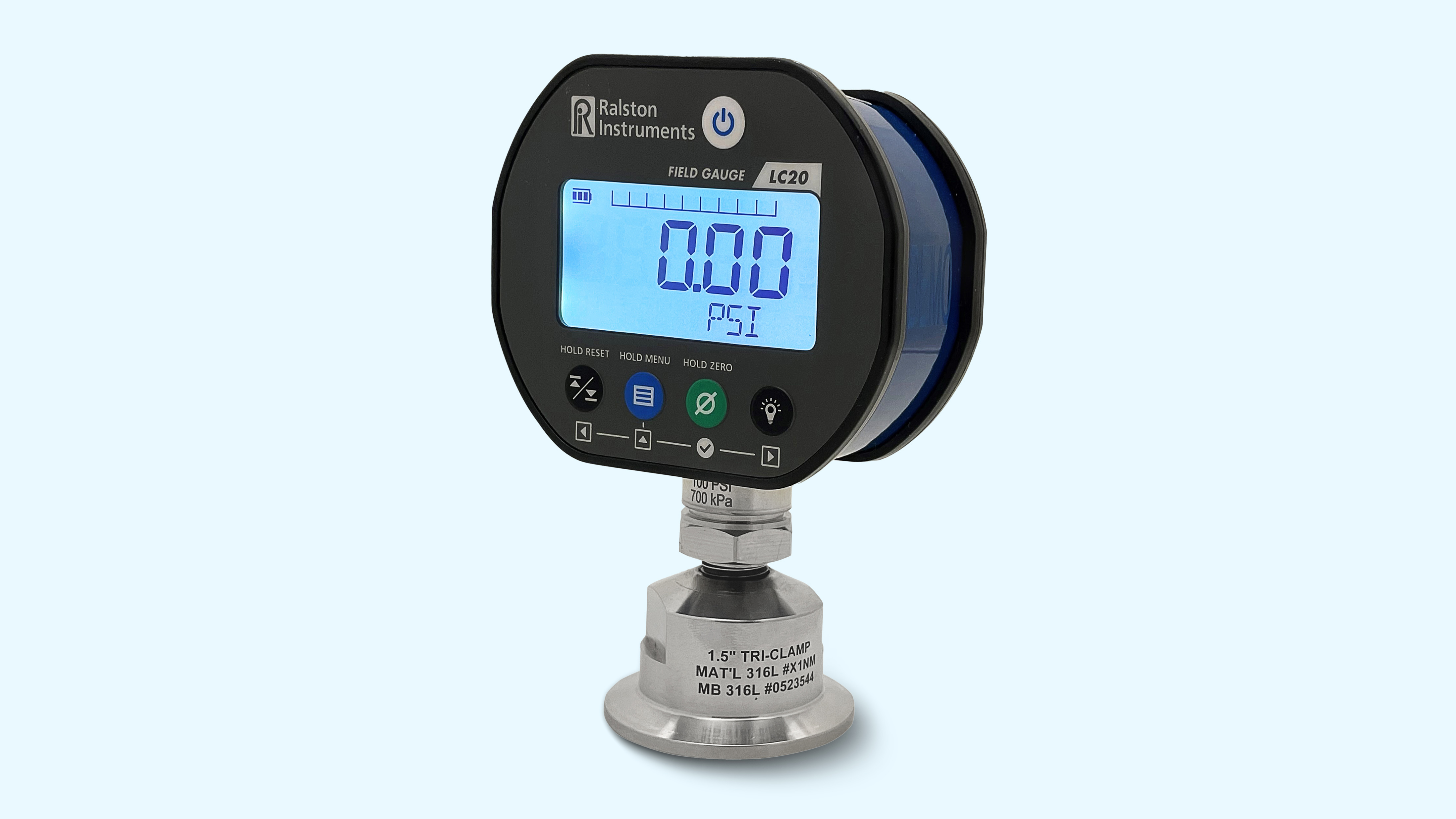

LC20 Digital Sanitary Pressure Gauge

ModelsGet a Quote

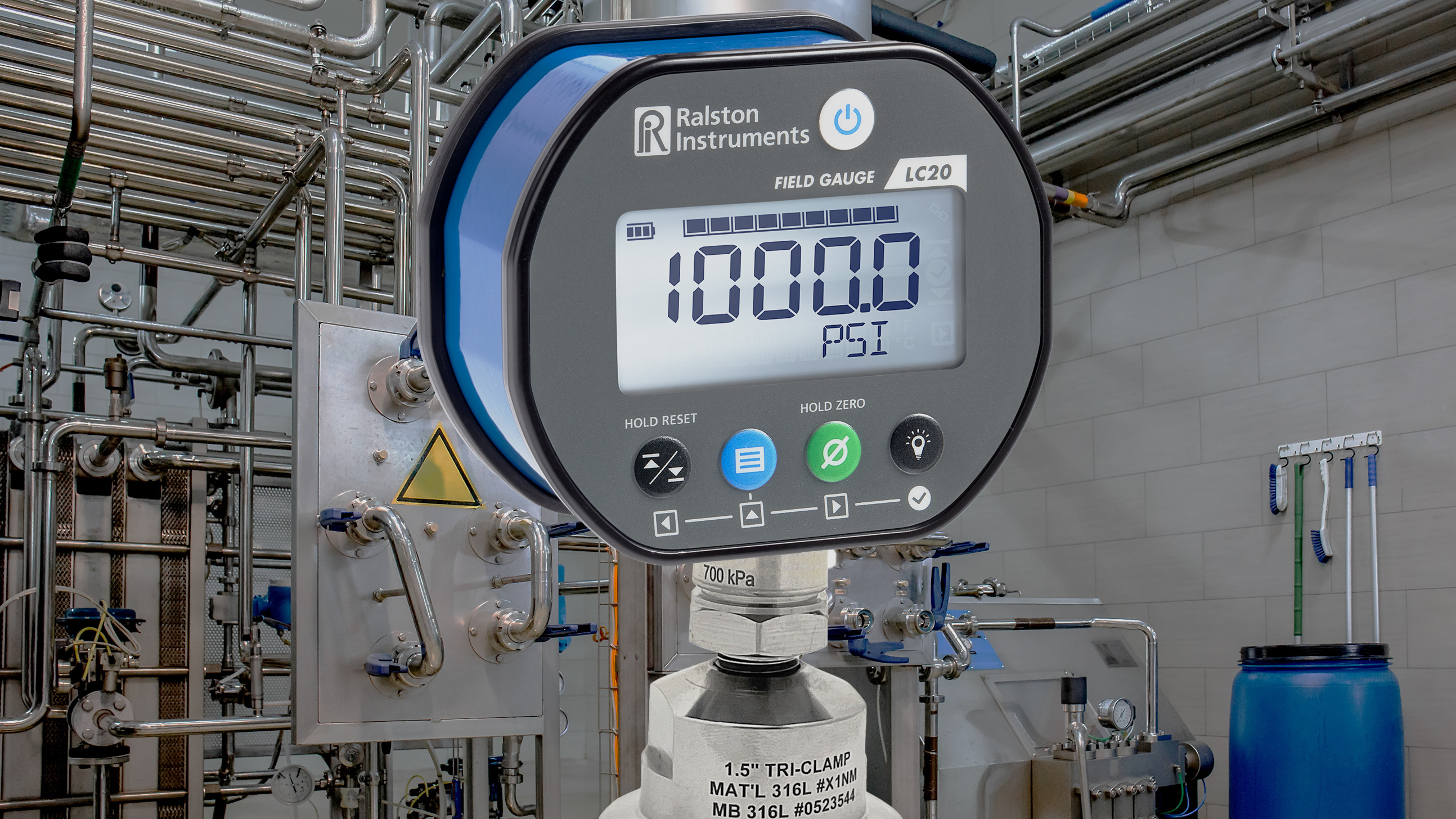

The digital LC20 Diaphragm Pressure Gauge with sanitary tri-clamp is ideal for applications that require regular pressure measurements and monitoring with strict adherence to contamination prevention and product purity laws and regulations. With an IP67 rating, LC20 sanitary pressure gauges were designed to tolerate vibrations, pulsations, and harsh chemicals, and include 3-A certified sanitary tri-clamp seals that prevent contamination and allow the gauges to be steamed or cleaned in place.

LC20 Digital Sanitary Pressure Gauge Certifications

  • LC Gauge ETL Authorization to Mark
  • LC Gauge EC Declaration of Conformity
  • LC Gauge IEC / IECEE CB Test Certificate (61010-1)
  • Ralston LC20 ACMA Declaration of Conformity (Australia)
  • Ralston PED Declaration of Conformity
  • REACH Declaration of Conformity
  • RoHS Certificate of Compliance
Loading...

Contamination Prevention

  • 3-A certified sanitary tri-clamp diaphragm seals
  • Clean or steam in place (CIP/SIP)
  • 316L SS body and diaphragm
  • 18-24 RA wetted surface finish
  • High temperature pipe sealant and tamper-proof inspection seal used on all threaded joints

Accuracy and Convenience

  • ± 0.1% full scale accuracy (ASME B40.100 Grade 4A/ISO Class 0.1)
  • Quick, reliable Zero function
  • Wireless option
  • Convenient High / Low readings maintained with quick reset
  • Large, backlit display
  • 15 engineering units
  • 8 pressure ranges from 5 psi / 35 kPa to 1,000 psi / 7 Mpa
  • Option to add custom engineering units using the included FieldLab Desktop PC software
  • Option to data log using included FieldLab Desktop PC software

Applications

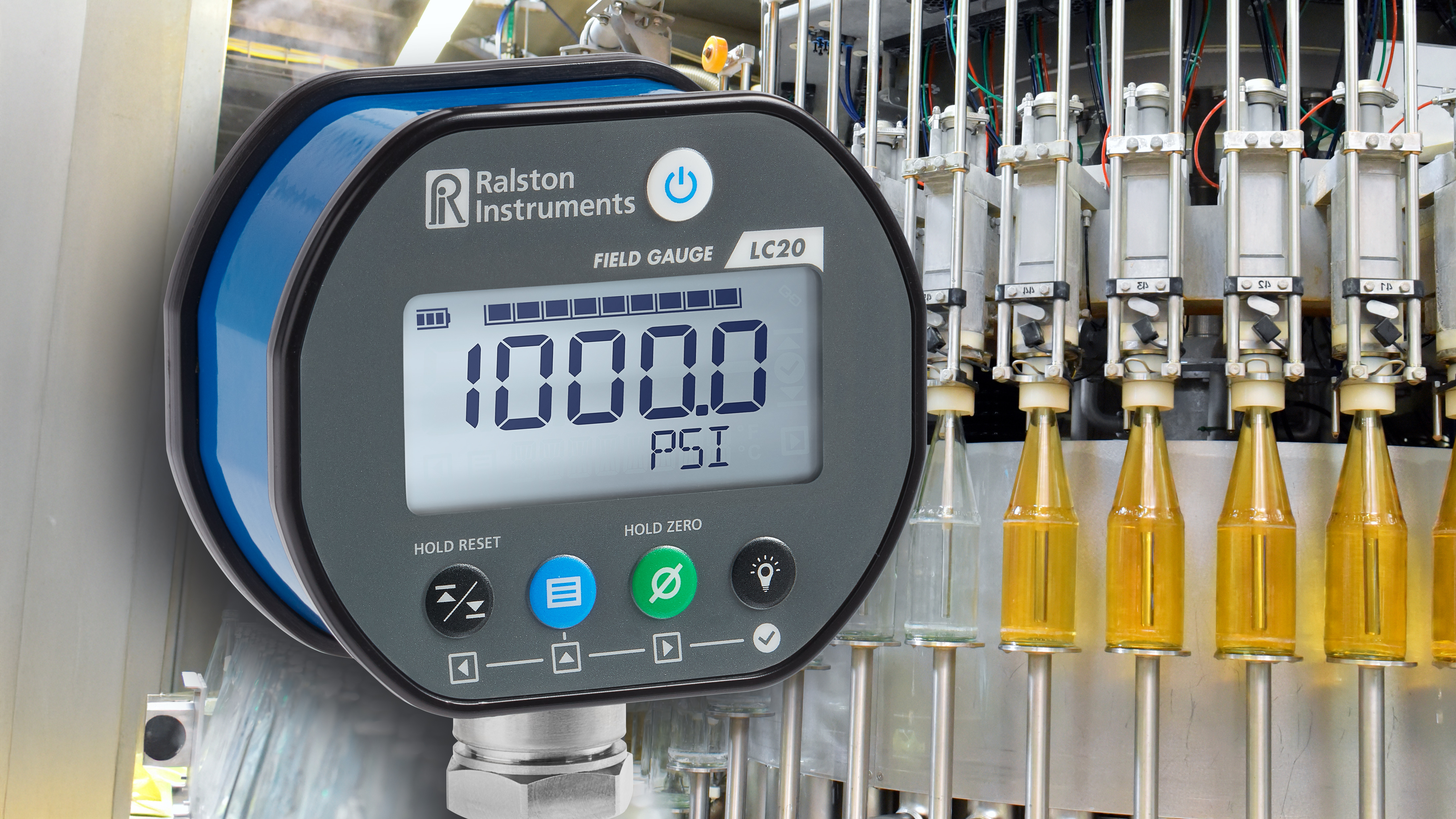

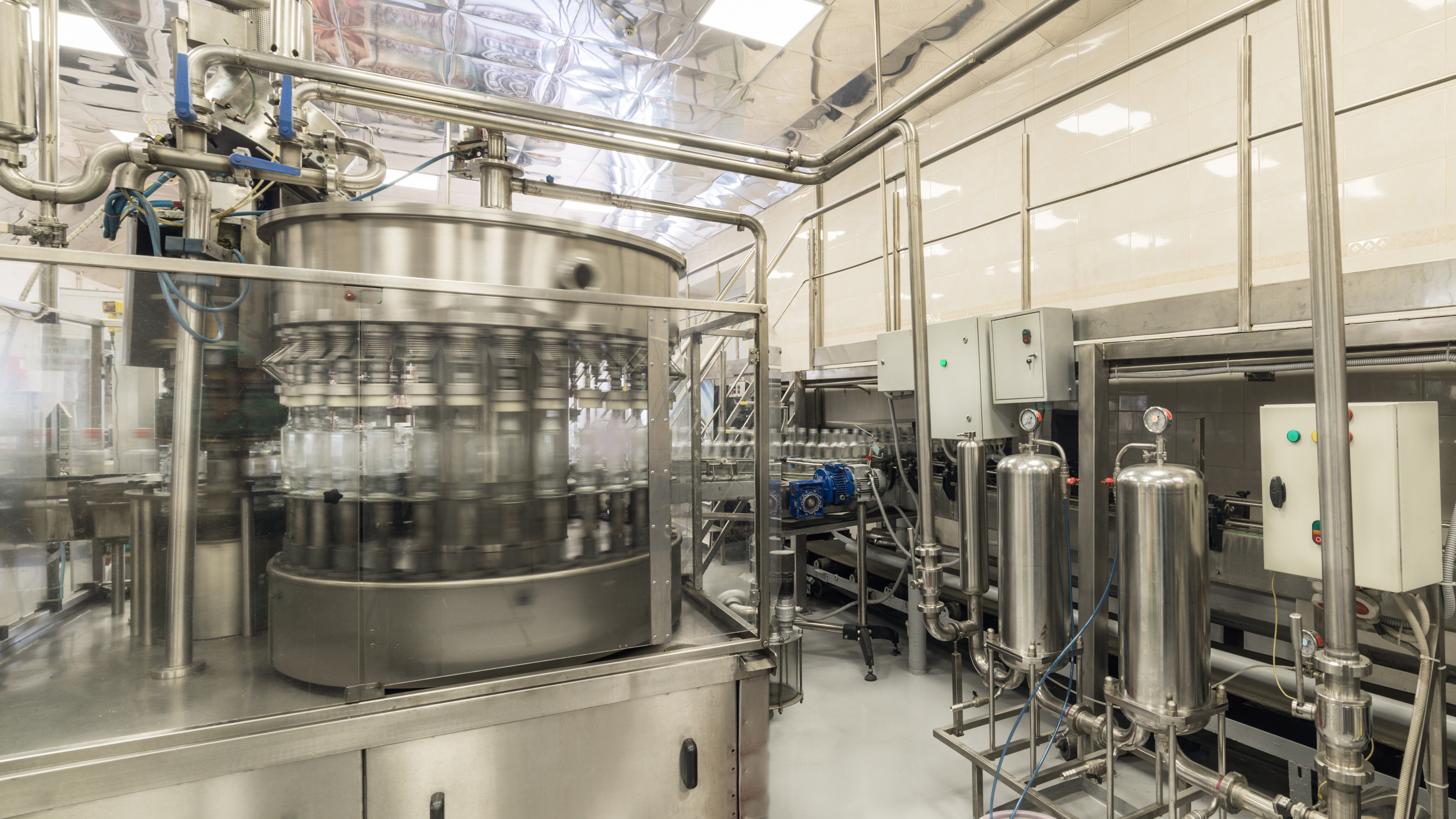

Designed to maintain accuracy around harsh environments created near homogenizers, separators, pumps, and heat exchangers, the LC20 Diaphragm Gauge is ideal for use in the food & beverage, pharmaceutical and biotechnology industries. They’re built to tolerate wide temperature and humidity changes and processes that require hot caustic cleaning solutions and acid rinses.

Ready to Find the Right Calibration Solution?

We’ll help you find the right solution for your application, whether you’re working in the field or a lab.
