Valved Fittings

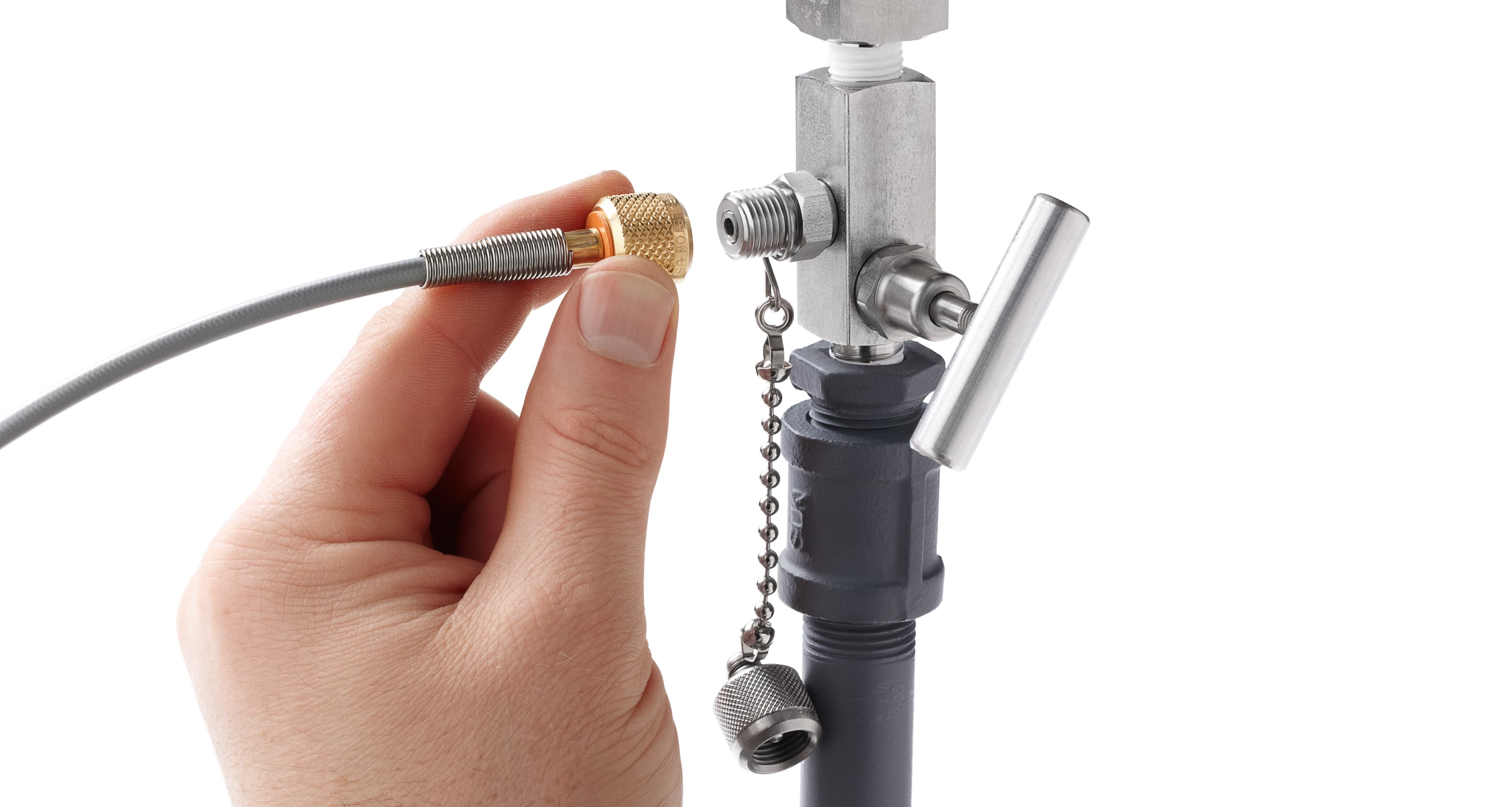

Install between a pressure gauge and the process and isolate the process from the gauge to perform a calibration of the gauge. After completing the calibration open the valve and place the gauge on-line, all without blowing down the system.

  • * Use whenever there is a gauge that needs frequent calibration or verification

Valved Fitting Models

Model Max Pressure Max Vacuum Materials Seal Materials End 1 Connector End 2 Connector End 3 Connector
QTVF-000B 3000 PSI / 205 bar / 21 MPa 0 InHg / 0.0 kPa Brass Buna-N, Delrin, Teflon 1/4" Male NPT (ASME B1.20.1) 1/4" Female NPT (ASME B1.20.1) Male Quick-test
QTVF-000B-2F-2F 3000 PSI / 205 bar / 21 MPa   Brass Buna-N, Delrin, Teflon 1/4" Female NPT (ASME B1.20.1) 1/4" Female NPT (ASME B1.20.1) Male Quick-test
QTVF-000B-2F-2M 5000 PSI / 345 bar / 35 MPa   Brass Buna-N, Delrin, Teflon 1/4" Female NPT (ASME B1.20.1) 1/4" Male NPT (ASME B1.20.1)

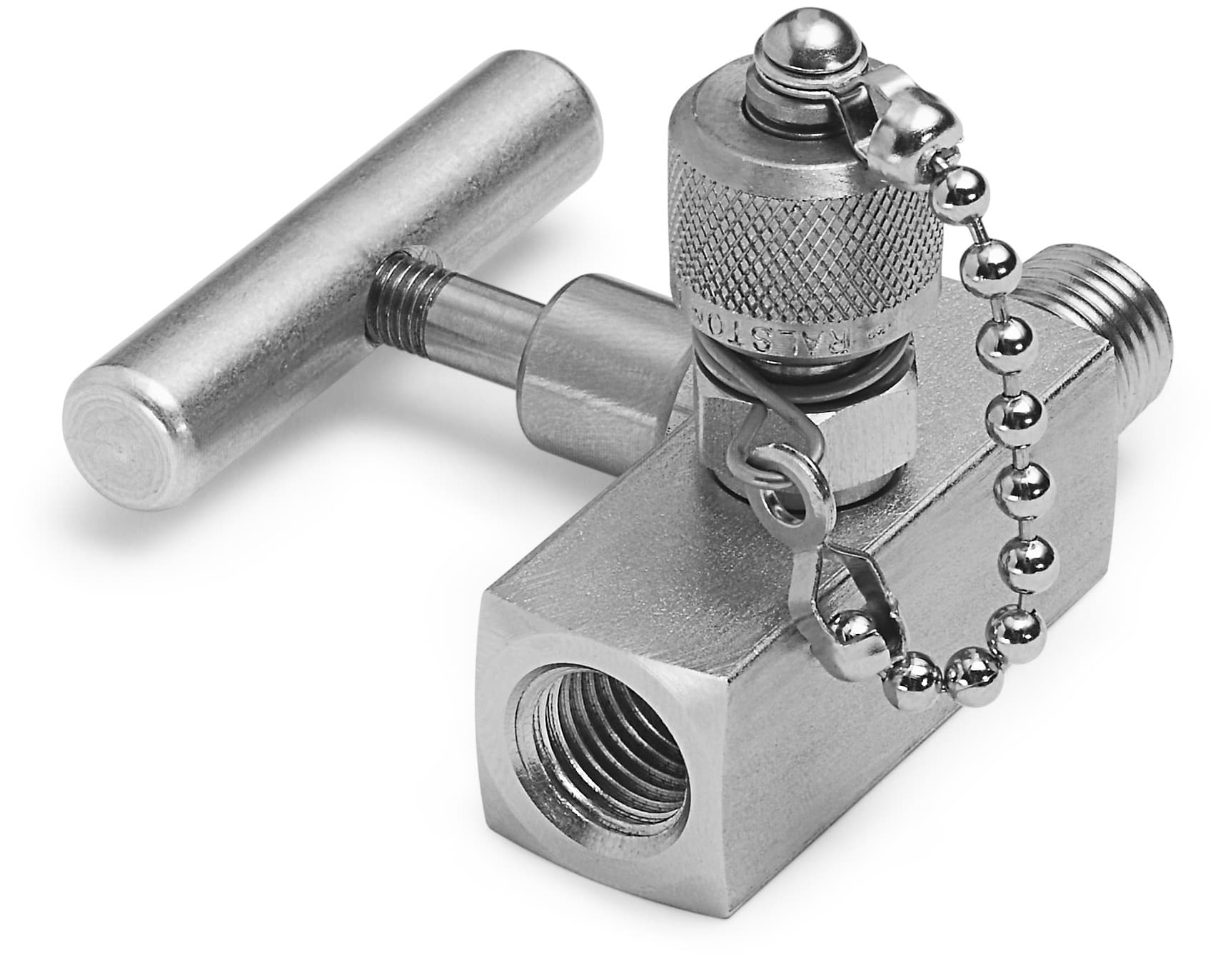

QTVF-000S 3000 PSI / 205 bar / 21 MPa 0 InHg / 0.0 kPa Stainless Steel Buna-N, Delrin, Teflon 1/4" Male NPT (ASME B1.20.1) 1/4" Female NPT (ASME B1.20.1) Male Quick-test
QTVF-000S-2F-2F 3000 PSI / 205 bar / 21 MPa   Stainless Steel Buna-N, Delrin, Teflon 1/4" Female NPT (ASME B1.20.1) 1/4" Female NPT (ASME B1.20.1) Male Quick-test
