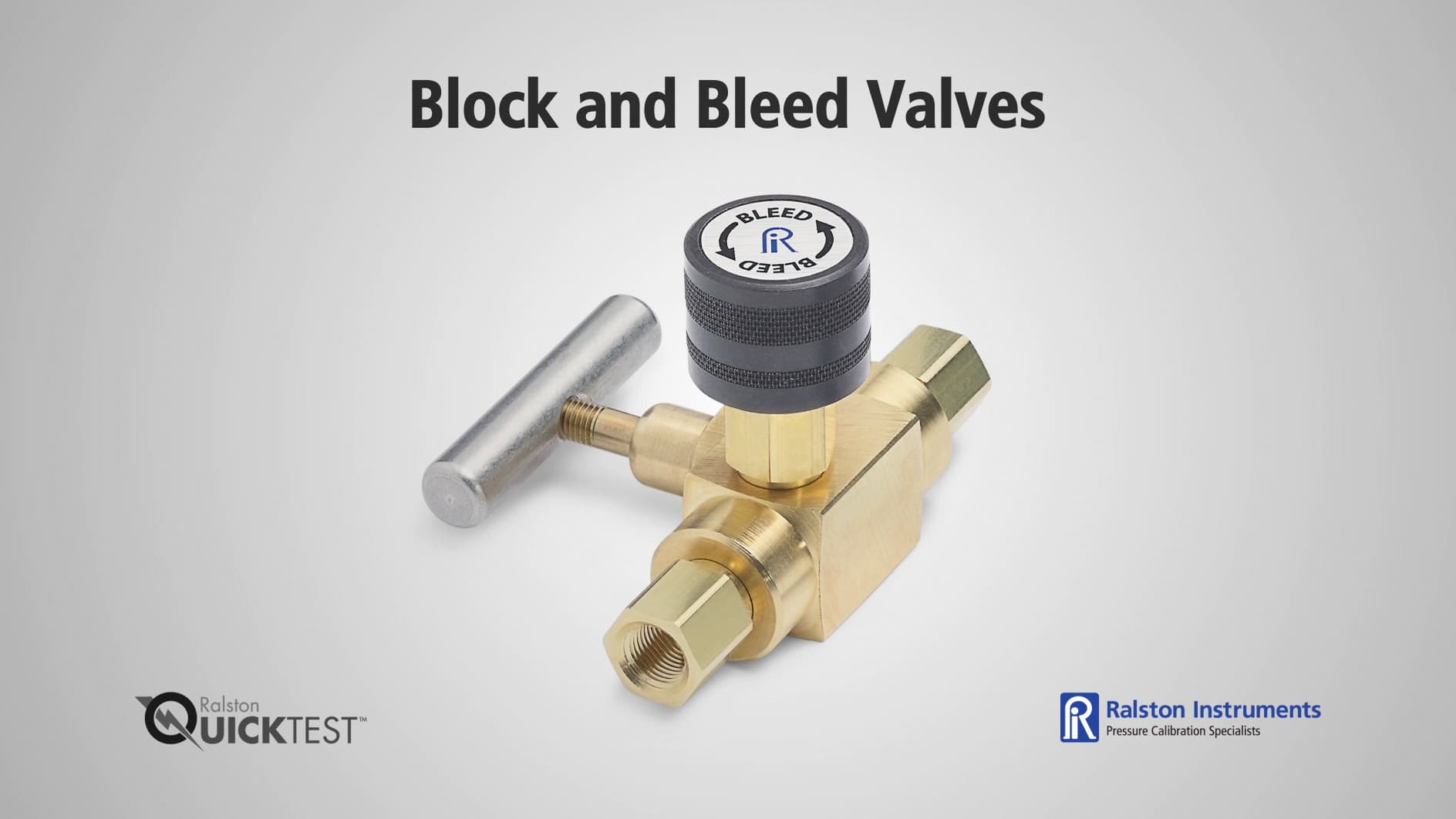

Block and Bleed Valves

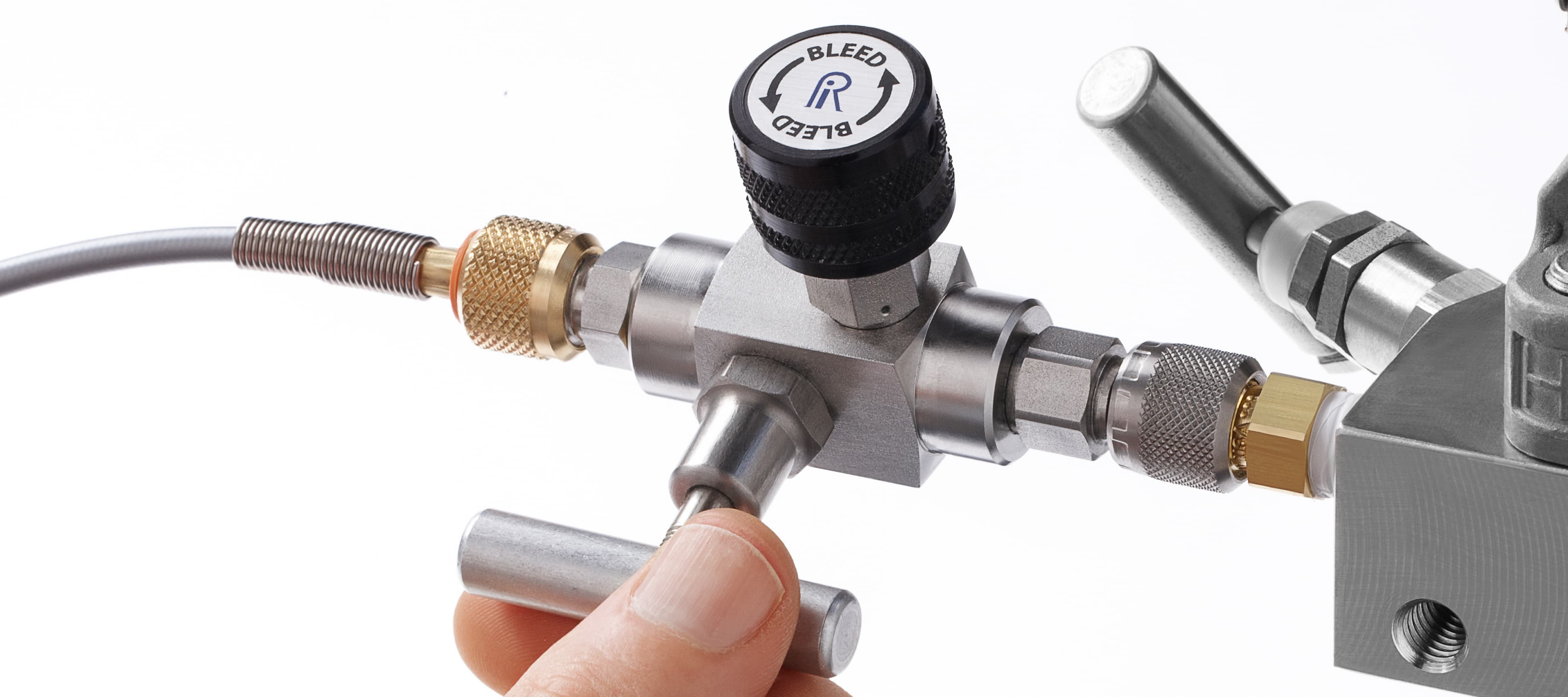

Keep a calibration system pressurized with a fluid or gas while venting the pressure from the device being calibrated

Block and Bleed Valves

Model Max Pressure Materials Seal Materials End 1 Connector End 2 Connector
QTHA-BLB0-HH 3000 PSI / 205 bar / 21 MPa Brass Buna-N, Delrin, Teflon Male Quick-test Male Quick-test
QTHA-BLB0-HC 3000 PSI / 205 bar / 21 MPa Brass Buna-N, Delrin, Teflon Male Quick-test Female Quick-test
QTHA-BLB0-1F-1F 3000 PSI / 205 bar / 21 MPa Brass Buna-N, Delrin, Teflon 1/8" Female NPT (ASME B1.20.1) 1/8" Female NPT (ASME B1.20.1)

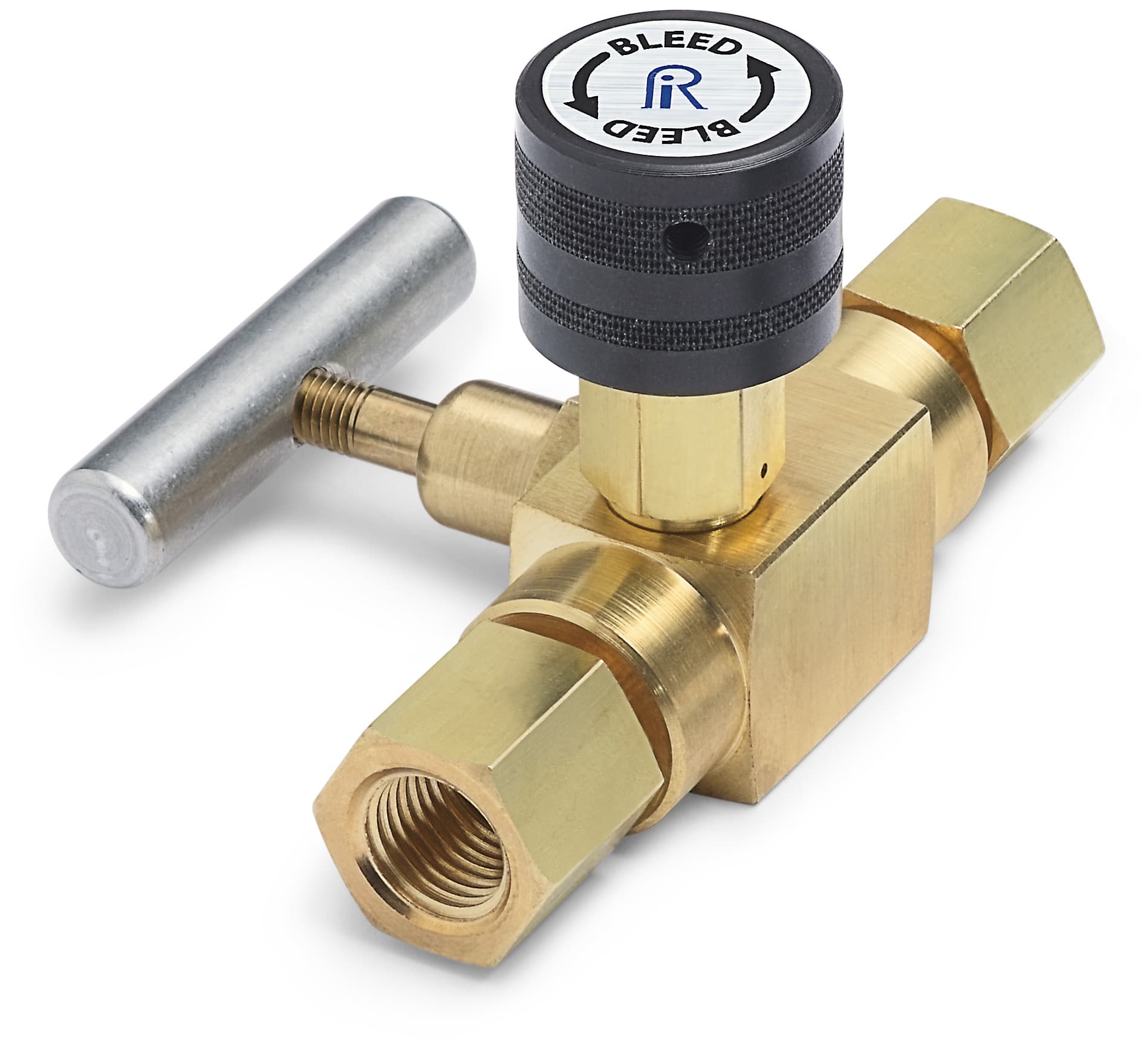

QTHA-BLB0-2F-2F 3000 PSI / 205 bar / 21 MPa Brass Buna-N, Delrin, Teflon 1/4" Female NPT (ASME B1.20.1) 1/4" Female NPT (ASME B1.20.1)
QTHA-BLS0-HH 5000 PSI / 345 bar / 35 MPa Stainless Steel Buna-N, Delrin Male Quick-test Male Quick-test
QTHA-BLS0-HC 5000 PSI / 345 bar / 35 MPa Stainless Steel Buna-N Male Quick-test Female Quick-test
QTHA-BLS0-2F-2F 5000 PSI / 345 bar / 35 MPa Stainless Steel Buna-N, Delrin, Teflon 1/4" Female NPT (ASME B1.20.1) 1/4" Female NPT (ASME B1.20.1)
Looking for product pricing and availability?
Contact us for a quote and we'll be in touch.
Get a Quote
