Part Number: XTHA-2MS0-RS

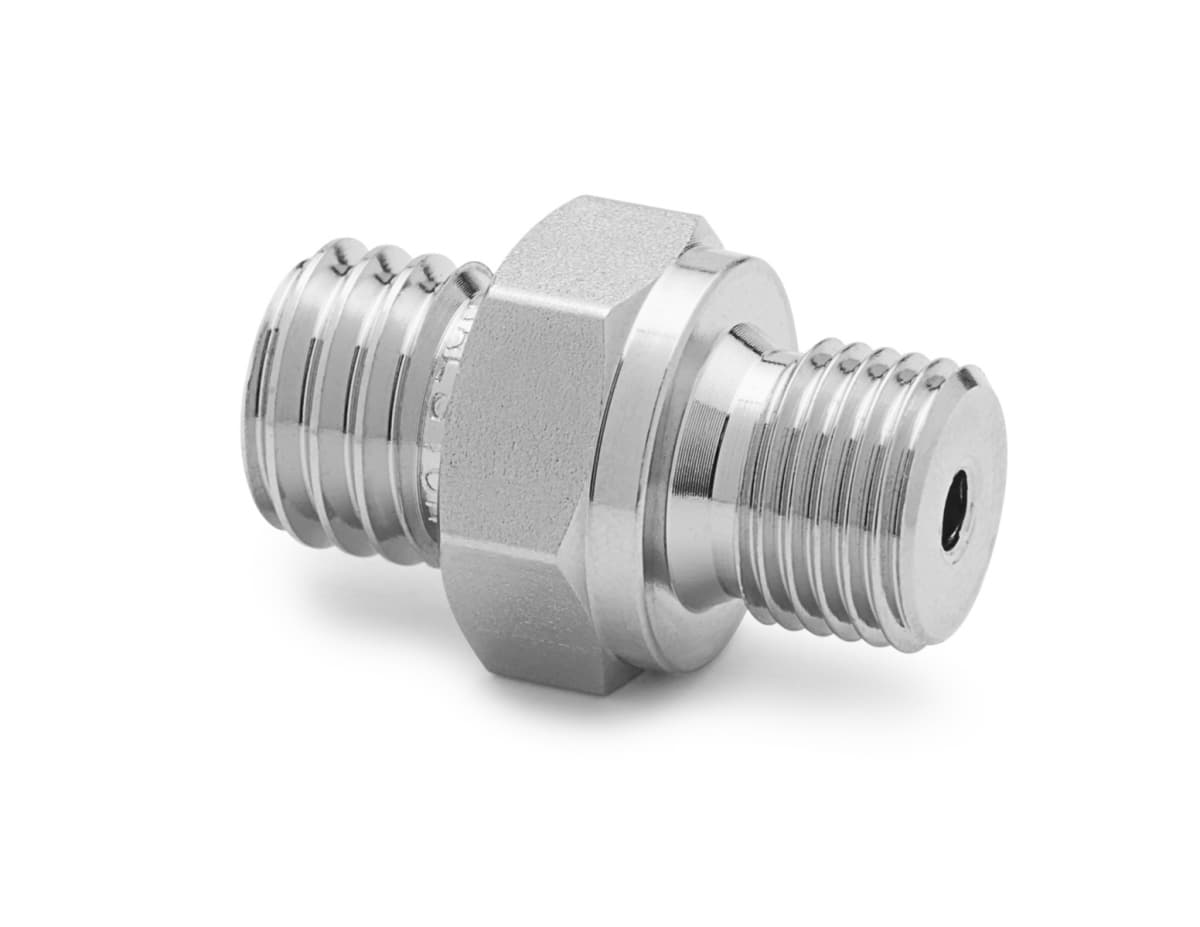

G 1/4" male BSPP (ISO 228/1) x male Quick-test XT, no check-valve, S.S.

Name: Ralston Instruments
Address: Ralston Instruments P.O. Box 340 Novelty, Ohio 44072 United States, P.O. Box 340 Novelty, Ohio 44072 United States, Ohio, 44072, United States
Telephone: 4405641480
Price range: $

Connect to hand pumps with BSPP connections or other BSPP connections to 10,000 psi

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote

Download Datasheet Need help? Contact Us

Specifications

Weight	1.44 oz / 41 grams
Length	1.35 in / 35 mm
Width	0.86 in / 22 mm
Height	0.86 in / 22 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	10000 PSI / 700 bar / 70 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Teflon, Viton
Wrench Size	3/4 In / 20 mm
Wrench Size	19 mm / 23/32 in
End 1 Connector	G 1/4 Male BSPP (ISO 228)
End 1 Direction	Left
End 2 Connector	Male Quick-test XT
End 2 Direction	Left
