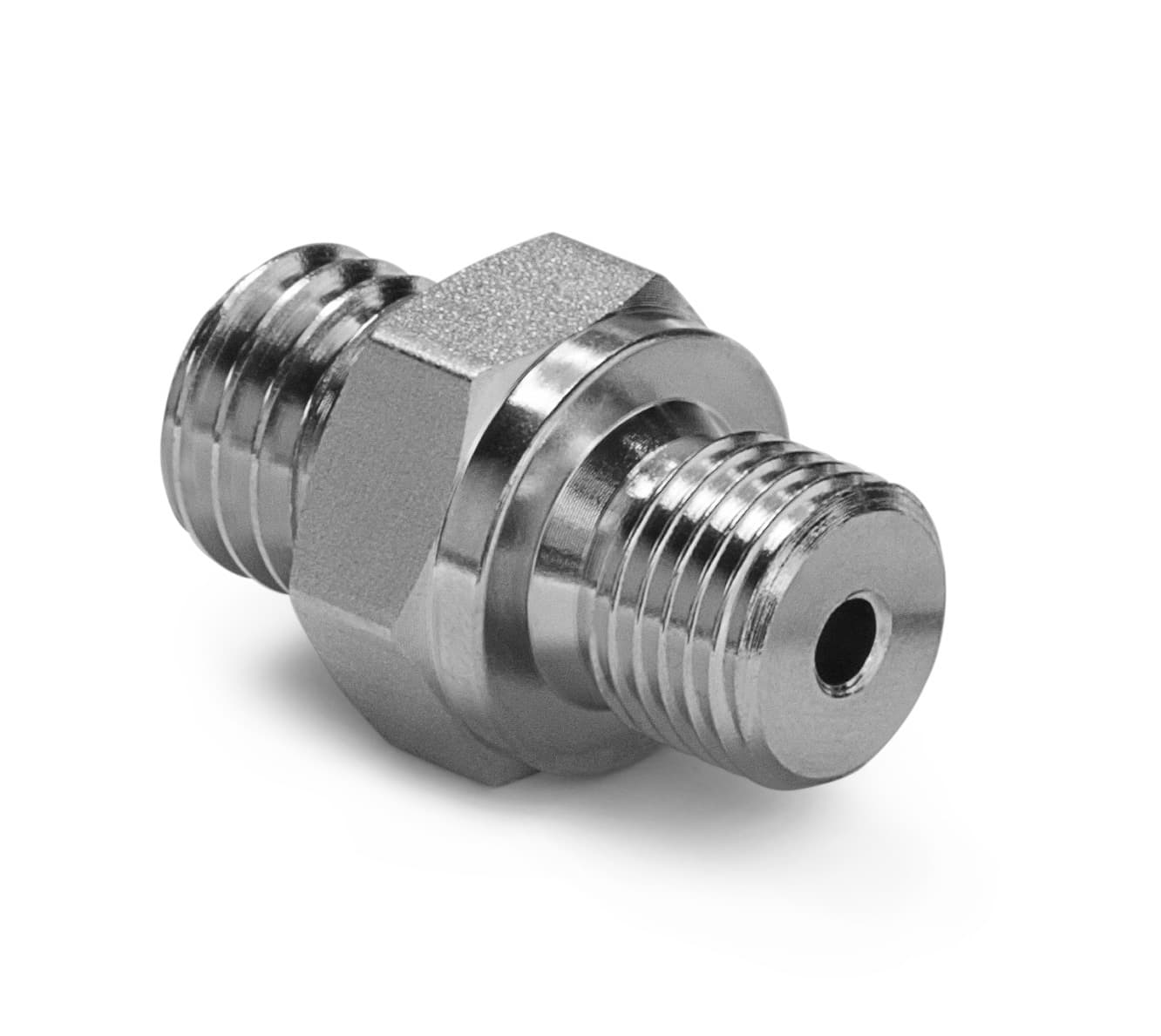

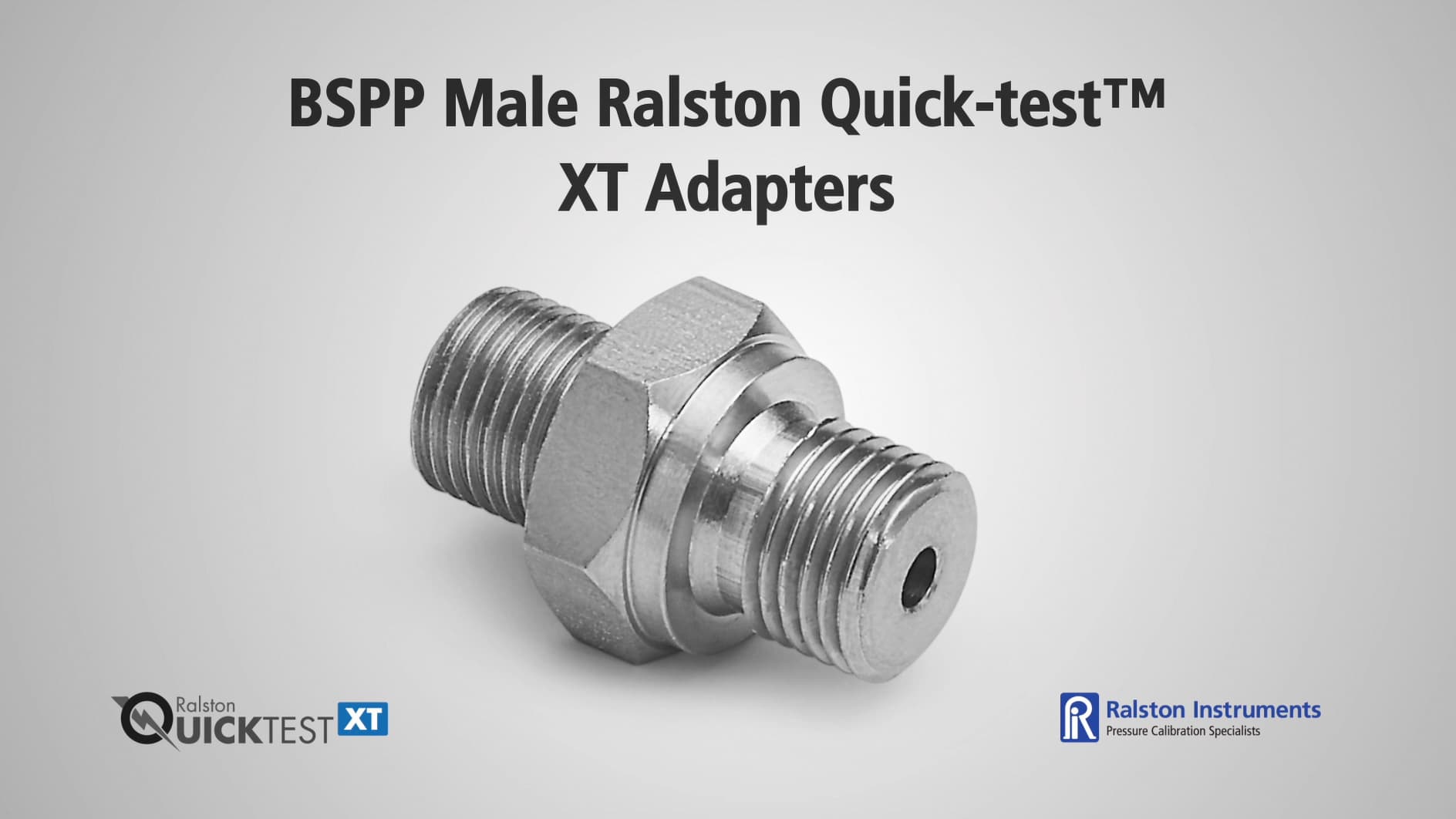

BSPP Male (RS) Quick-test XT Adapters

XTHA-2MS0-RS

Connect Female BSPP (ISO 228/1) parallel thread to Quick-test XT 10,000 psi hose for temporary installation

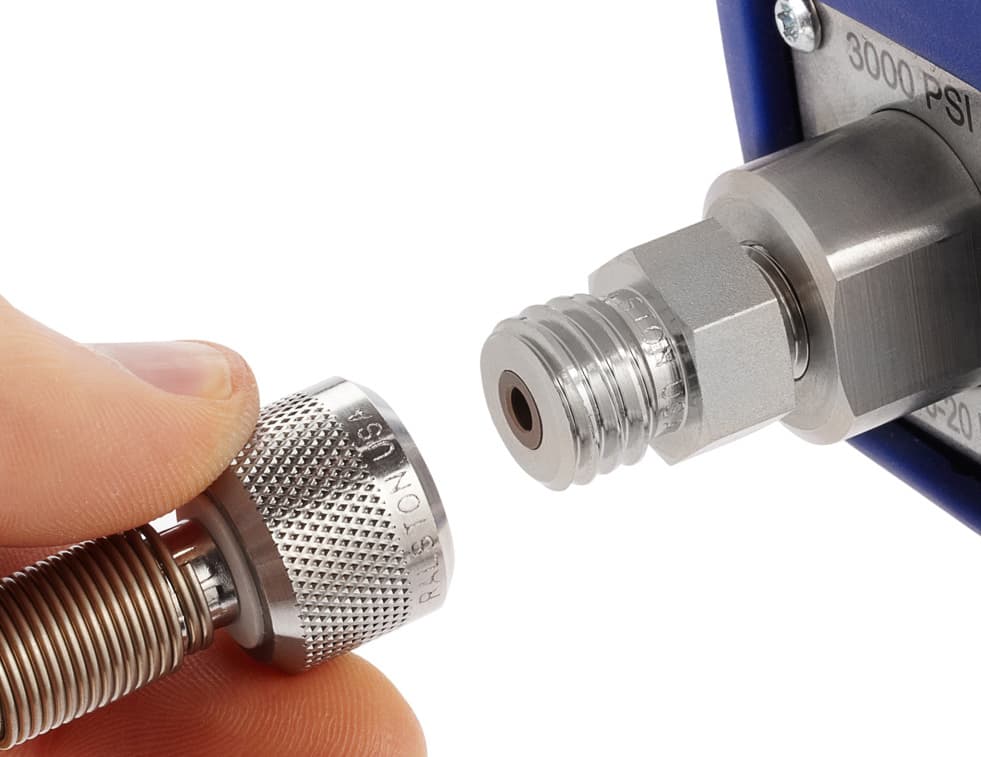

  • Connect Quick-test hoses to any Female BSPP device such as Druck, SI, Fluke or other hand pumps or pressure calibrators
  • Pressure tight seal is made on a bonded seal ring
  • Note that these are not compatible with QT or QS hoses. Please use Quick-test XT hoses
  • Made in USA
Model Max Pressure Connection Connection Quick-connect Has Check Valve Cap and Chain Bulkhead Materials
XTHA-2MS0-RS 10000 PSI / 700 bar / 70 MPa G 1/4 Male BSPP (ISO 228) Male Quick-test XT No No No No Stainless Steel
XTHA-3MS0-RS 10000 PSI / 700 bar / 70 MPa G 3/8 Male BSPP (ISO 228) Male Quick-test XT No No No No Stainless Steel
