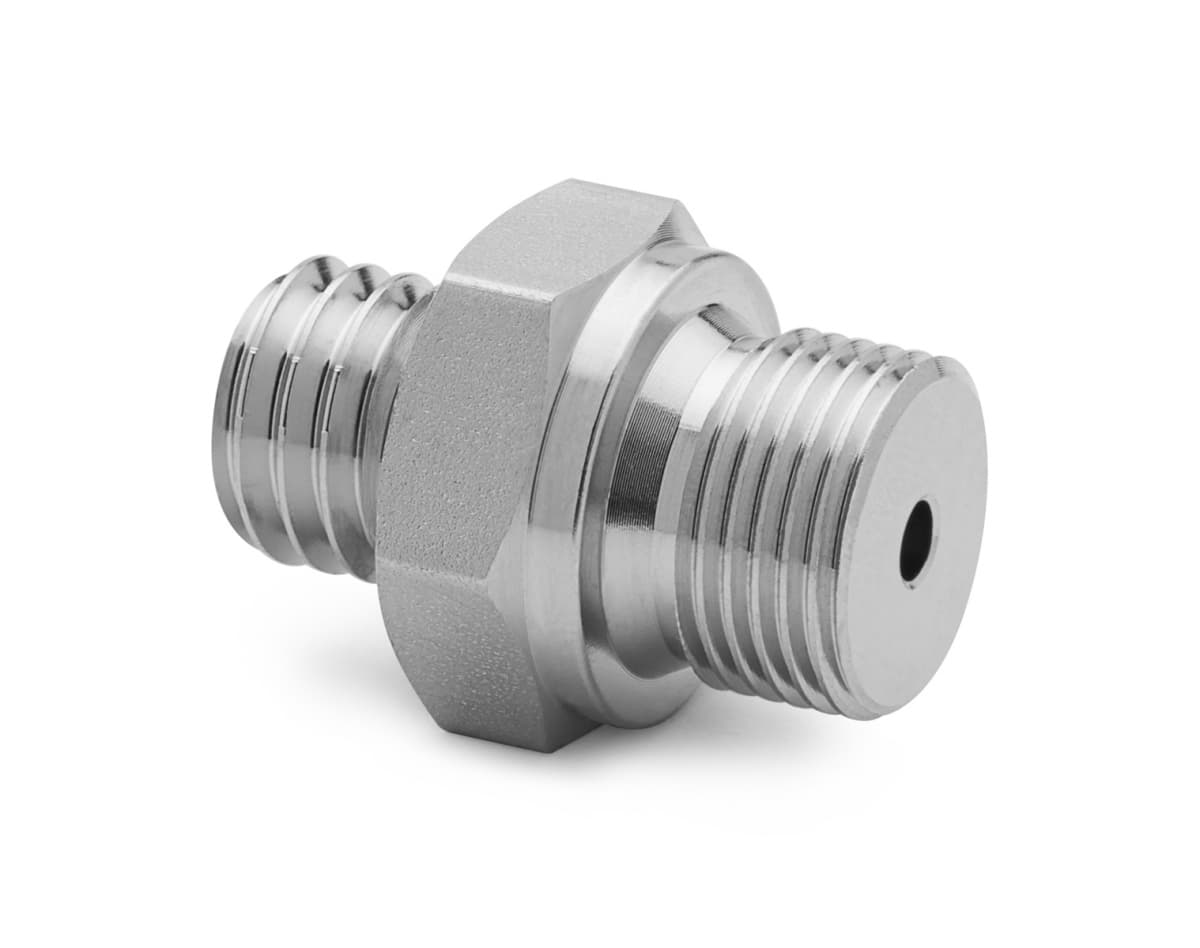

Part Number: XTHA-3MS0-RS

G 3/8" male BSPP (ISO 228/1) x male Quick-test, no check-valve, S.S.

Connect Female BSPP (ISO 228/1) parallel thread to Quick-test XT 10,000 psi hose for temporary installation

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Get a Quote
Download DatasheetNeed help? Contact Us

Specifications

Weight1.97 oz / 56 grams
Length1.36 in / 35 mm
Width0.99 in / 26 mm
Height0.99 in / 26 mm
Country of originUSA
MaterialsStainless Steel
Max Operating Temperature225 °F / 105 °C
Max Pressure10000 PSI / 700 bar / 70 MPa
Min Operating Temperature0 °F / -18 °C
Seal MaterialsTeflon, Viton
Wrench Size7/8 In / 23 mm
Wrench Size23 mm / 7/8 in
End 1 Connector
G 3/8 Male BSPP (ISO 228)
End 1 DirectionLeft
End 2 Connector
Male Quick-test XT
End 2 DirectionLeft
