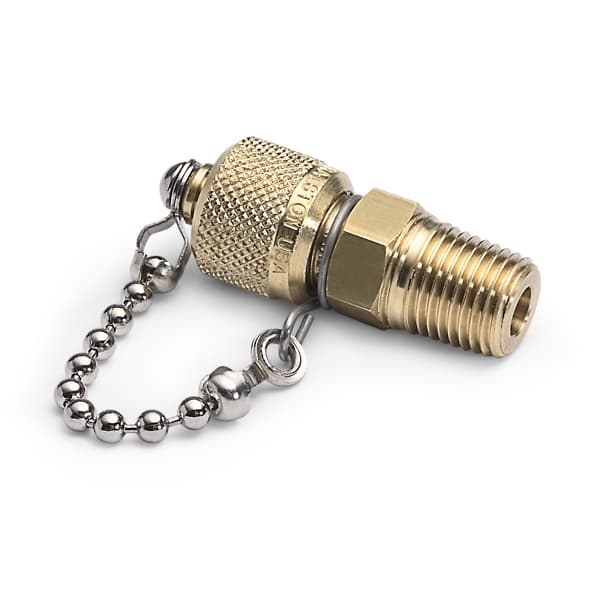

Part Number: QTFT-2MB0-RT
1/4" male BSPT (ISO 7/1) x male Quick-test, no check-valve, with cap and chain, brass
Connects Female BSPT (ISO 7/1) taper pipe thread to Quick-test hose using thread sealant and a wrench
Specifications
| Weight | 1.94 oz / 55 grams |
|---|---|
| Length | 1.85 in / 47 mm |
| Width | 0.71 in / 19 mm |
| Height | 0.71 in / 19 mm |
| Country of origin | USA |
| Materials | Brass |
| Max Operating Temperature | 225 °F / 105 °C |
| Max Pressure | 5000 PSI / 350 bar / 35 MPa |
| Max Vacuum | 0 InHg / 0.0 kPa |
| Seal Materials | Buna-N |
| Wrench Size | 9/16 In / 15 mm |
| Wrench Size | 15 mm / 9/16 in |
| End 1 Connector | Male Quick-test |
| End 1 Cap and Chain | Yes |
| End 1 Direction | Left |
| End 2 Connector | 1/4" Male BSPT (ISO 7) |
