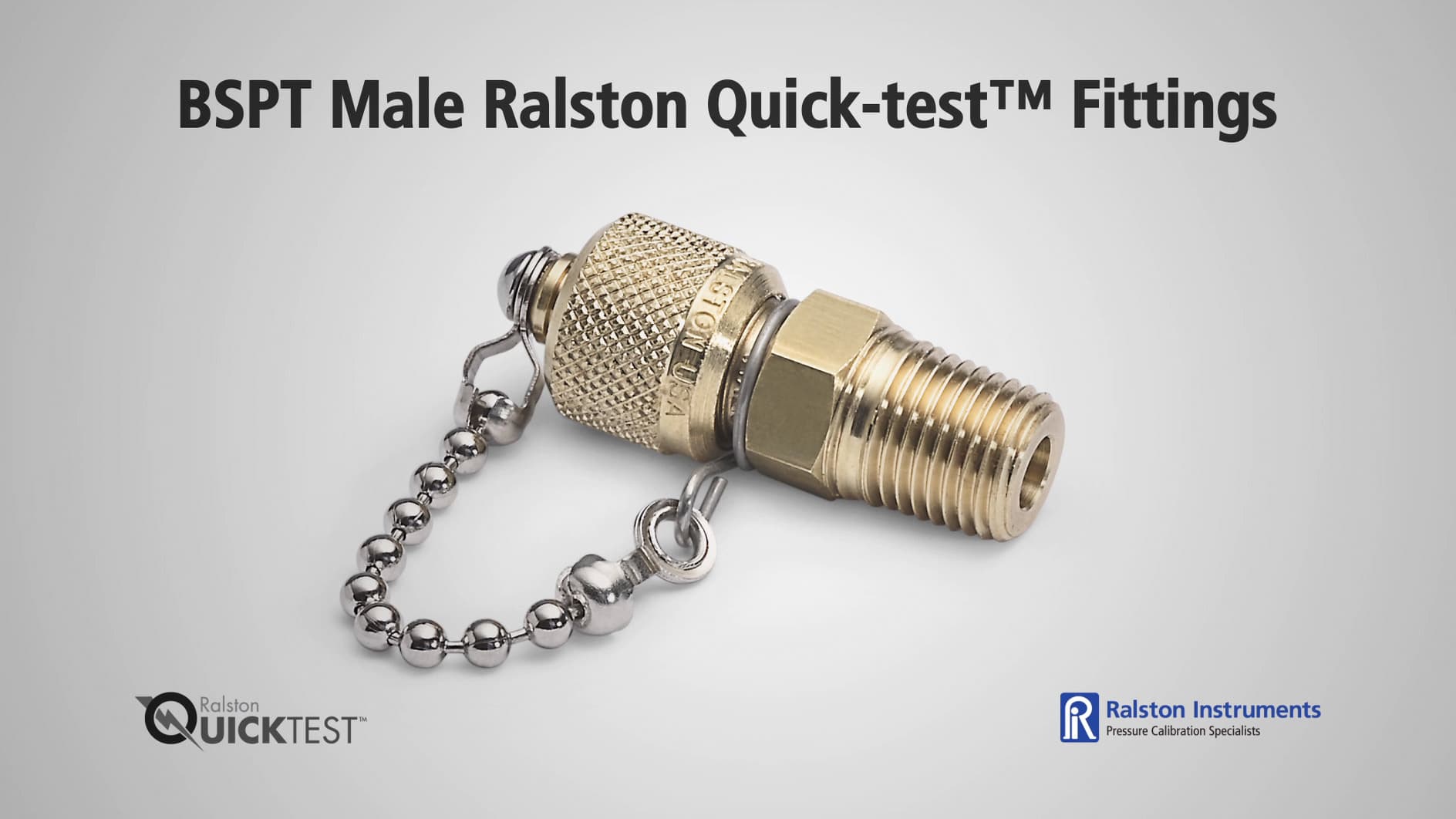

BSPT Male (RT) Quick-test Fittings

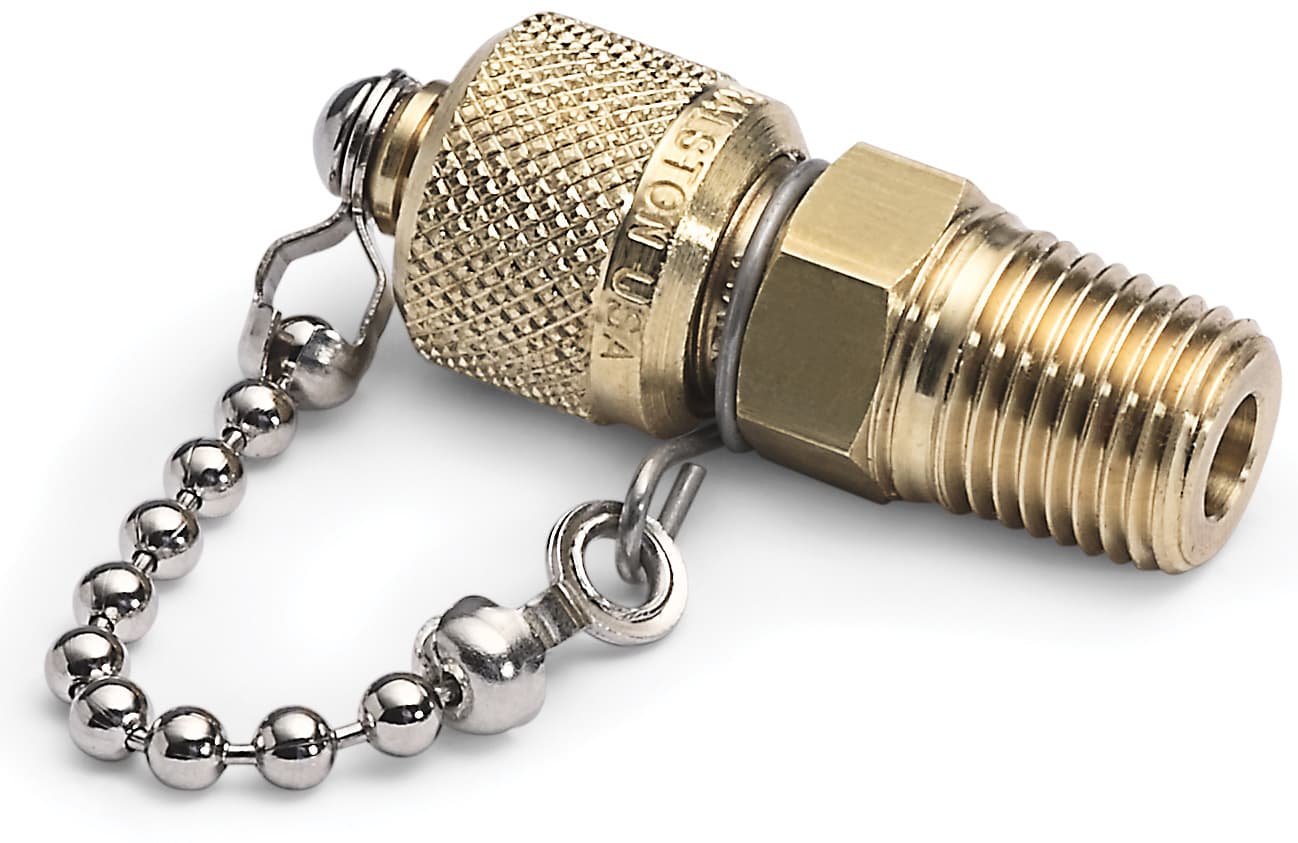

QTFT-2MB0-RT

Connects Female BSPT (ISO 7/1) taper pipe thread to Quick-test hose using thread sealant and a wrench

  • Ideal for connecting to female BSPT connections
  • Note that this is NOT an NPT adapter and is not compatible with NPT connections

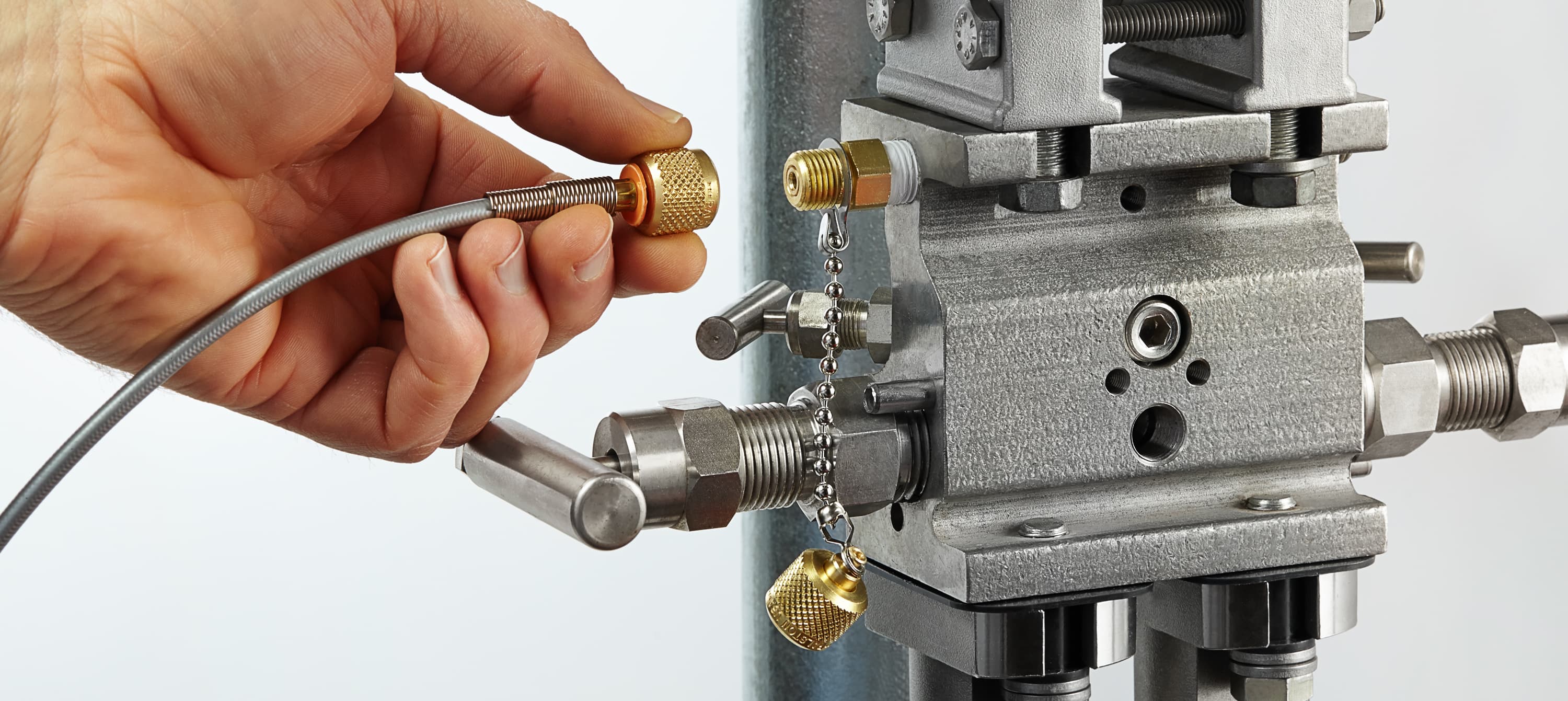

  • A removable cap provides easy access connect a Quick-test hose to the process for calibration purposes and is easily sealed bubble-tight again when calibration is complete
  • Made in USA

BSPT Male (RT) Quick-test Fitting Models

Model Max Pressure Connection Connection Quick-connect Has Check Valve Cap and Chain Bulkhead Materials
QTFT-1MB0-RT 5000 PSI / 350 bar / 35 MPa Male Quick-test 1/8" Male BSPT (ISO 7) No No Yes No Brass
QTFT-1MB1-RT 3000 PSI / 200 bar / 20 MPa Male Quick-test 1/8" Male BSPT (ISO 7) No Yes Yes No Brass
QTFT-2MB0-RT 5000 PSI / 350 bar / 35 MPa Male Quick-test 1/4" Male BSPT (ISO 7) No No Yes No Brass
QTFT-2MB1-RT 3000 PSI / 200 bar / 20 MPa Male Quick-test 1/4" Male BSPT (ISO 7) No Yes Yes No Brass
