ControlPak Manual Pressure Controller Support

QTVC EN LC10 Volume Controller

The Ralston ControlPak is a manual pressure controller designed for precise control over an external compressed gas source, either in the field or in the lab.

ControlPak Replacement Parts

Assembly Replacement Parts

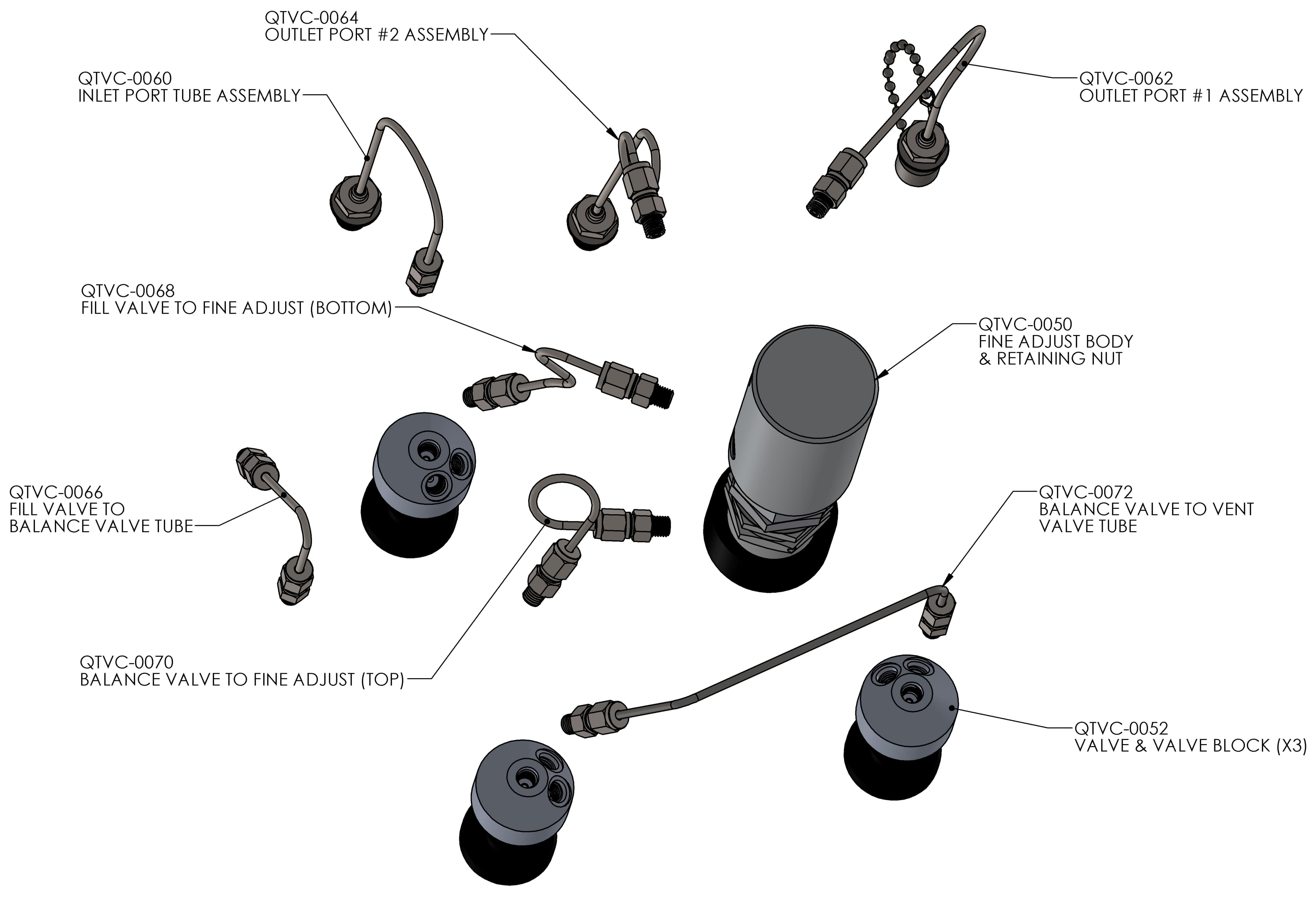

D 001316 REPLACEMENT PARTS

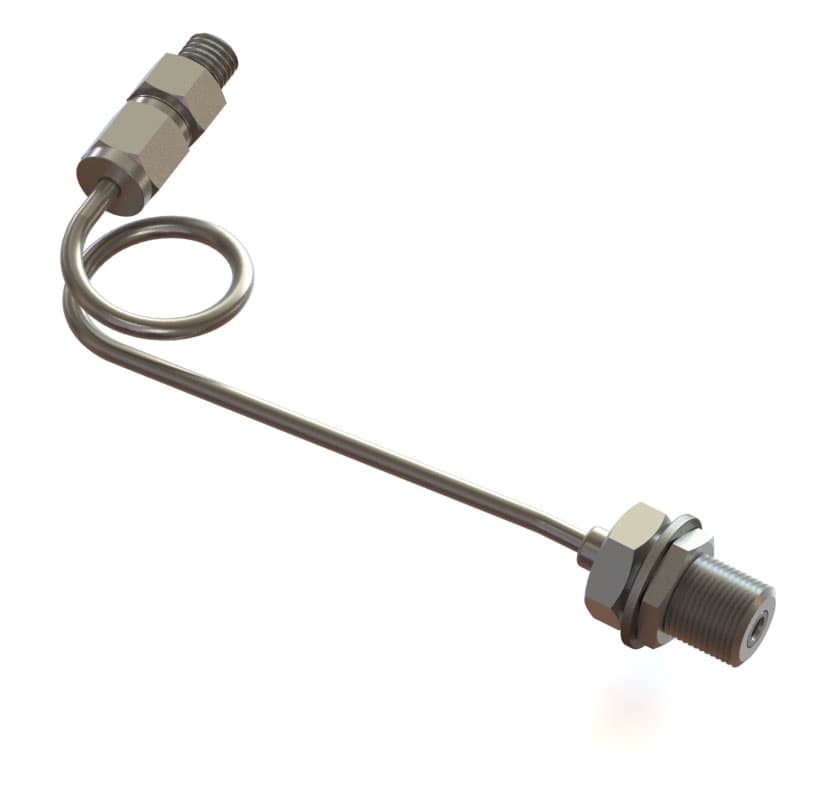

QTVC-EN Outlet port No. 2 tube assembly

QTVC-0064

QTVC-EN Outlet port No. 2 tube assembly

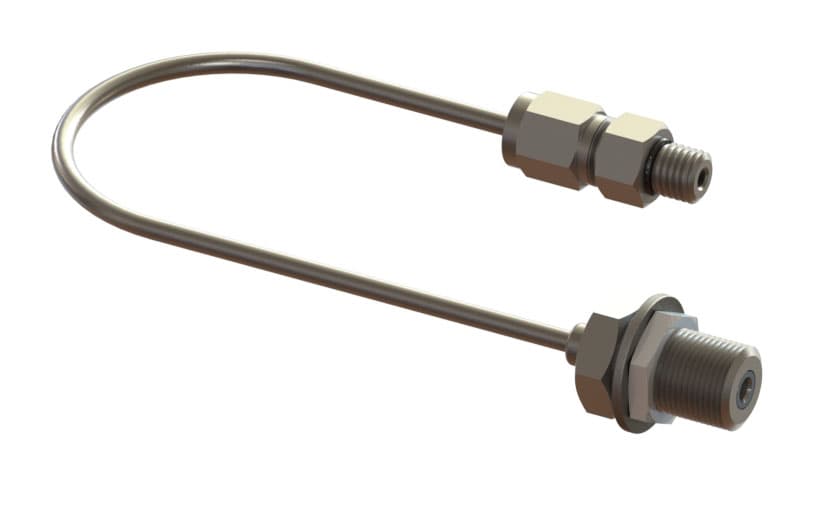

QTVC-EN inlet port tube assembly

QTVC-0060

QTVC-EN inlet port tube assembly

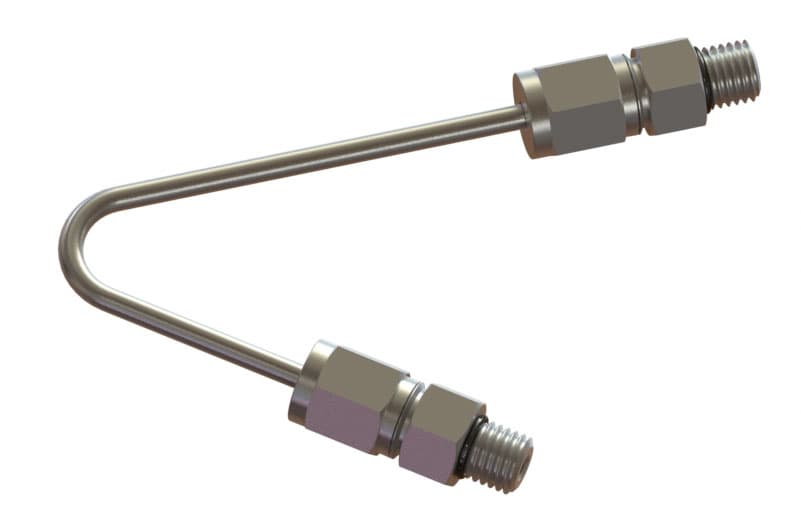

QTVC-EN fill valve to bottom of fine adjust tube assembly

QTVC-0068

QTVC-EN fill valve to bottom of fine adjust tube assembly

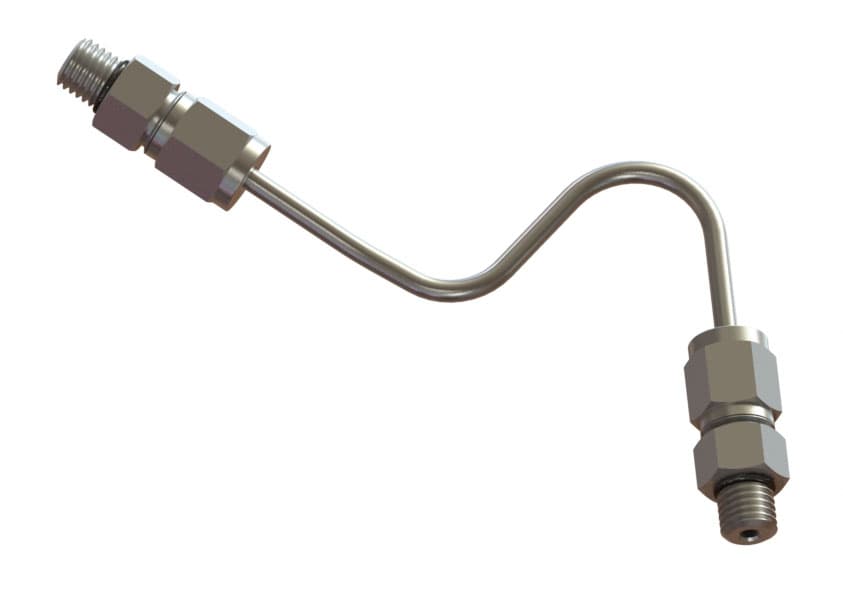

QTVC-EN fill valve to balance valve tube assembly

QTVC-0066

QTVC-EN fill valve to balance valve tube assembly

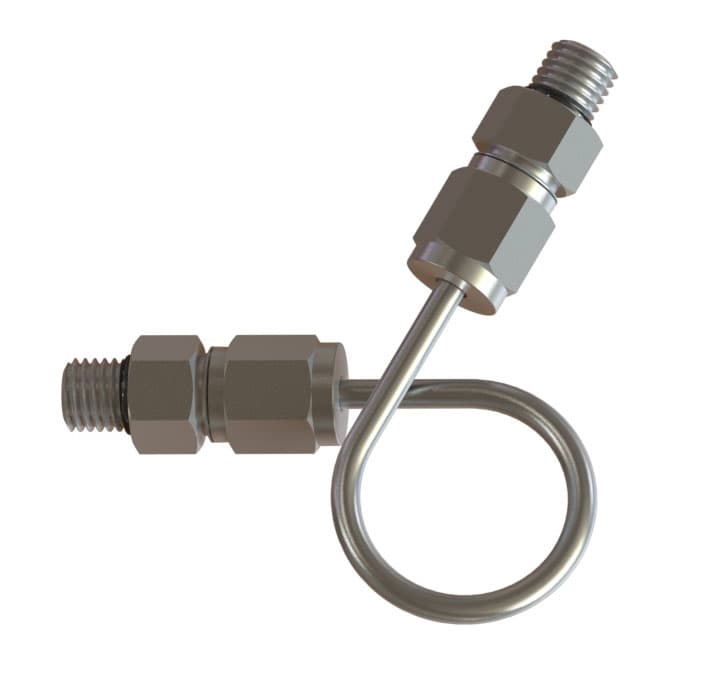

QTVC-EN balance valve to tope of fine adjust tube assembly

QTVC-0070

QTVC-EN balance valve to tope of fine adjust tube assembly

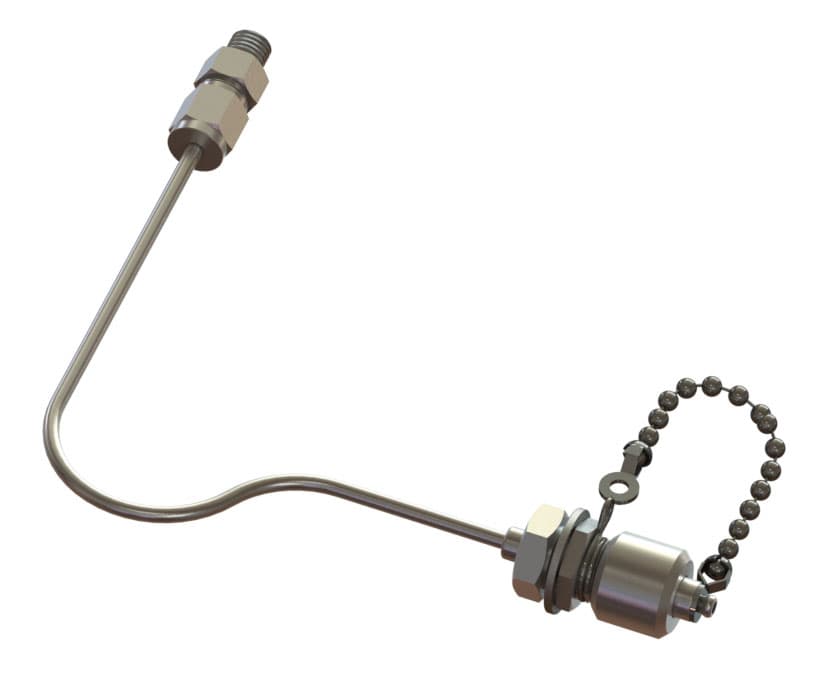

QTVC-EN Outlet port No. 1 tube assembly

QTVC-0062

QTVC-EN outlet port No. 1 tube assembly

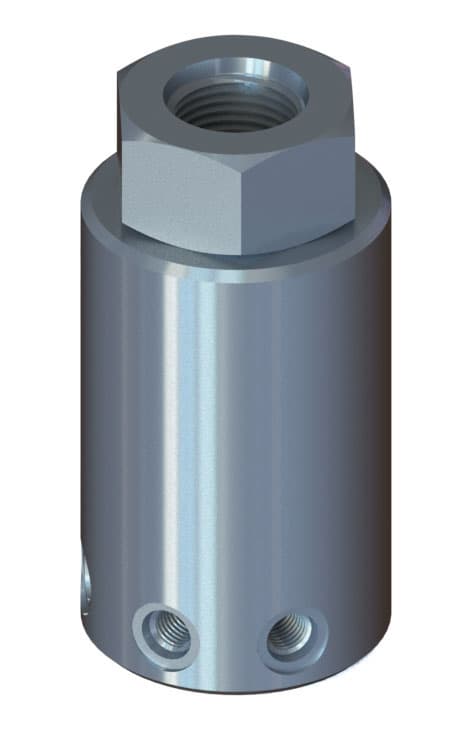

QTVC-EN fine adjust body only

QTVC-0050

QTVC-EN fine adjust body without connections

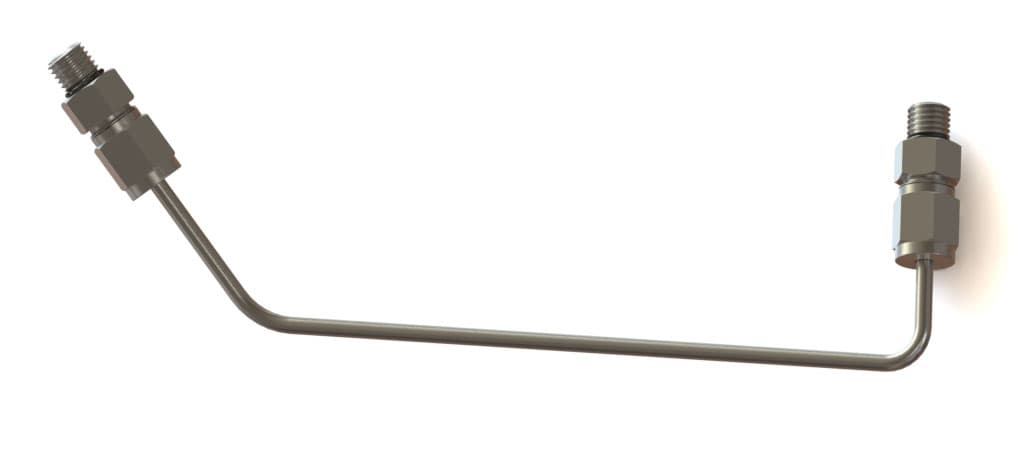

QTVC-EN balance valve to vent valve tube assembly

QTVC-0072

QTVC-EN balance valve to vent valve tube assembly

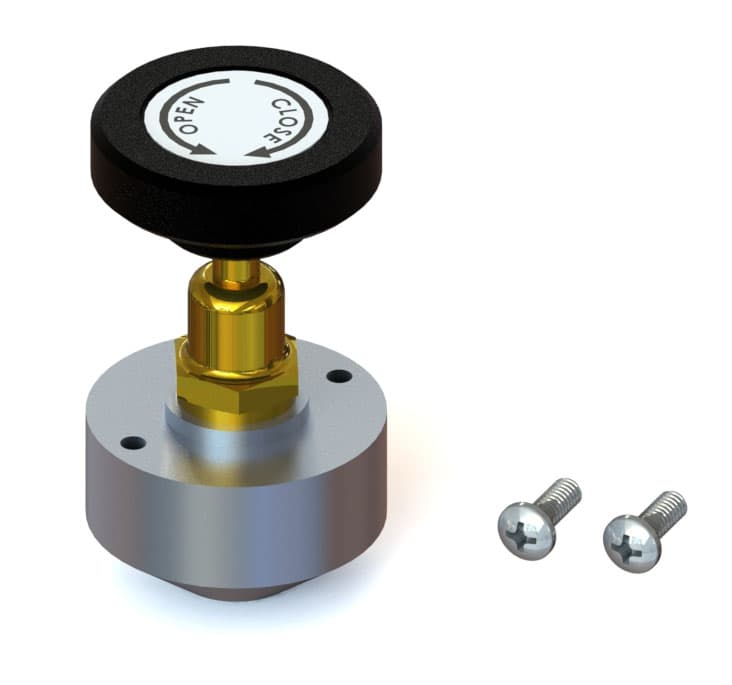

QTVC-EN valve and valve block assembly

QTVC-0052

QTVC-EN valve and valve block assembly

ControlPak QTVC-EN Replacement Parts

RI D 001316 REPLACEMENT PARTS
QTVC-EN accessory box and fasteners only

QTVC-0058

QTVC-EN accessory box with fasteners
QTVC-EN Outlet port No. 2 tube assembly

QTVC-0064

QTVC-EN Outlet port No. 2 tube assembly
QTVC-EN Outlet port No. 1 tube assembly

QTVC-0062

QTVC-EN outlet port No. 1 tube assembly
QTCM fill valve assembly, brass

QTCM-0021

Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers
QTVC-EN Control panel and fasteners

QTVC-0056

QTVC-EN control panel and fasteners
QTVC-EN case with panel ring

QTVC-0054

QTVC-EN case with panel ring
NPAK top portion of fine adjust assembly without piston (for #7)

NPAK-0020

Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers

Fine Adjust Replacement Parts

D 001817
NPAK top portion of fine adjust assembly without piston (for #7)

NPAK-0020

Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers
QTVC fine adjust piston only

QTVC-0018

Replacement parts for hand pumps, calibration manifolds, nitrogen sources and volume contollers
QTVC-EN fine adjust body only

QTVC-0050

QTVC-EN fine adjust body without connections
