DP Transmitter Quick-test XT Fittings

Connect a Quick-test hose directly to a DP transmitter using the bleeder port when the transmitter is not mounted on a 3 or 5 valve manifold or when the manifold is not easily accessible.

  • This unique fitting makes a metal to metal seat on the transmitter and a Quick-test XT hose can be attached on the other side
  • Connects through the bleeder screw port on a DP transmitter
  • Pressurize to 10,000 psi (700 bar)
  • Made in USA

DP Transmitter Quick-test XT Fitting Models

Model Max Pressure Connection Connection Quick-connect Cap and Chain Bulkhead Materials

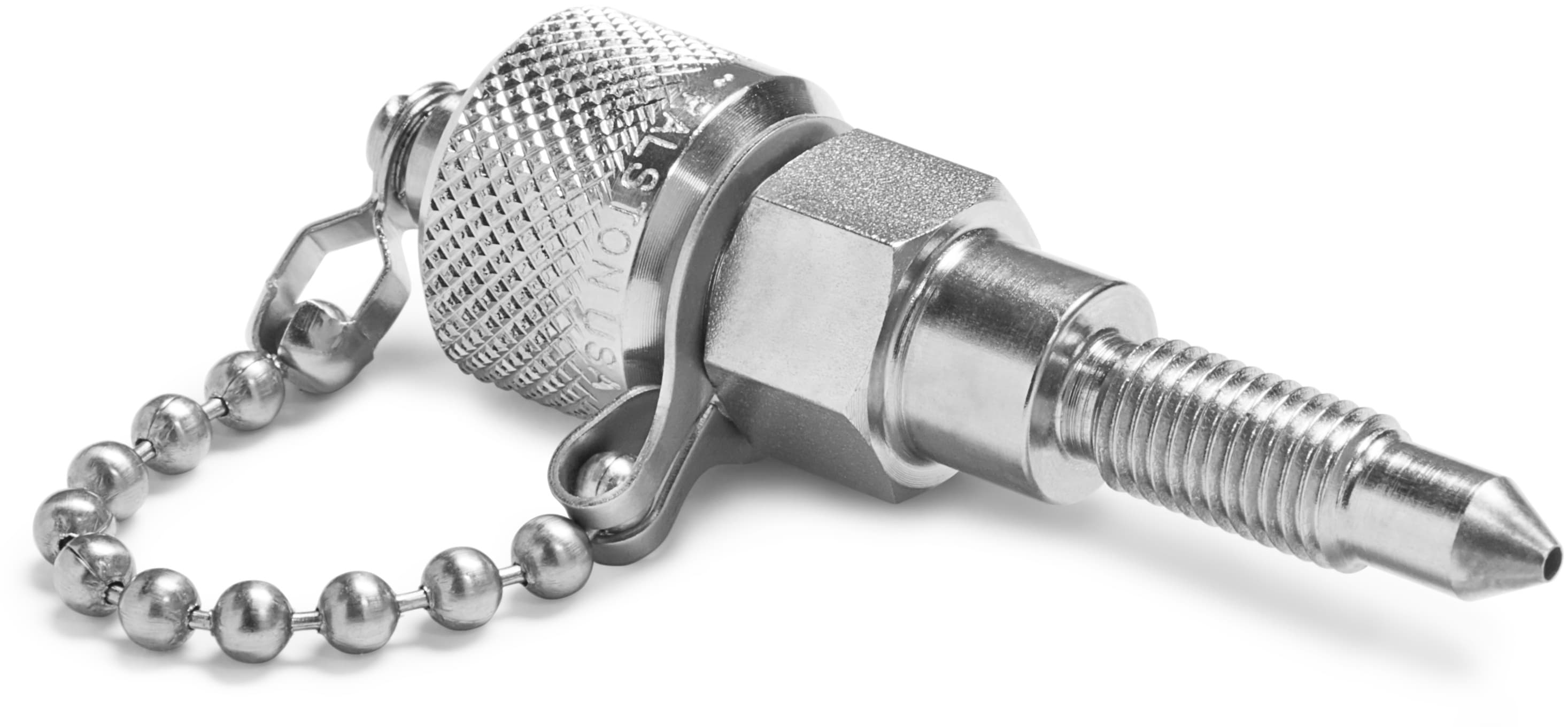

XTFT-FRS0 10,000 psi / 689 bar / 69 MPa 5/16-24 Male DP Transmitter/Gauge valve Male Quick-test XT No No No Stainless Steel
XTFT-HNS0 10,000 psi / 689 bar / 69 MPa 1/4-28 Male DP Transmitter/Gauge valve Male Quick-test XT No No No Stainless Steel
