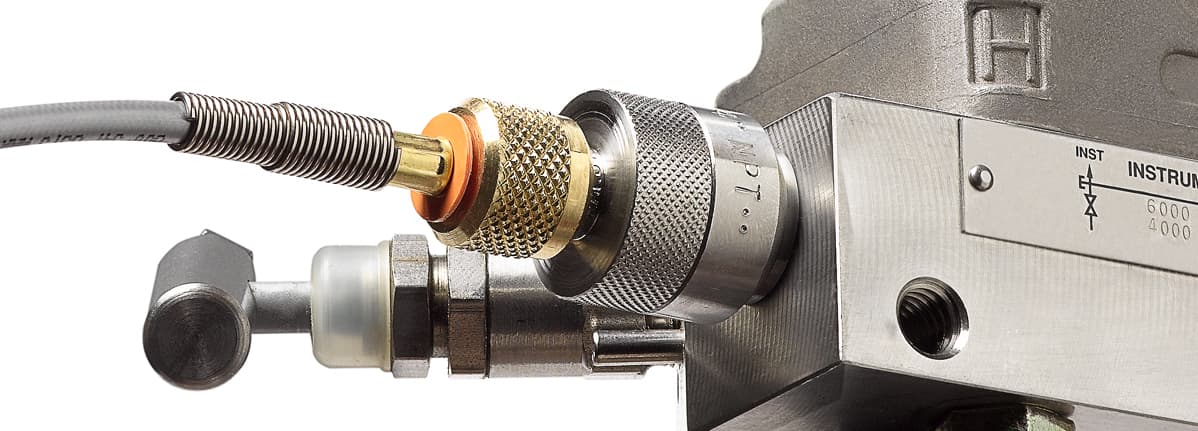

NPT Male Quick-connect Fittings

Make calibrating pressure transmitters a snap by eliminating the need for thread sealant or wrenches when connecting to any female NPT connection

  • A unique design allows connection to standard female NPT ports using a pressure-assisted o-ring seal
  • Pressure helps to seal the fitting better
  • A Cap and chain makes calibration easy and quick by connecting and disconnecting a hose without a wrench or thread sealant
  • Stainless steel construction
  • Made in USA

NPT Male Quick-connect Fitting Models

Model Max Pressure Connection Connection Materials
QTFT-1MS0-QD 5,000 psi / 345 bar / 34 MPa 1/8" Male NPT (ASME B1.20.1) Male Quick-test Stainless Steel
QTFT-2MS0-QD 5,000 psi / 345 bar / 34 MPa 1/4" Male NPT (ASME B1.20.1) Male Quick-test Stainless Steel
QTFT-3MS0-QD 5,000 psi / 345 bar / 34 MPa 3/8" Male NPT (ASME B1.20.1) Male Quick-test Stainless Steel
QTFT-4MS0-QD 5,000 psi / 345 bar / 34 MPa 1/2" Male NPT (ASME B1.20.1) Male Quick-test Stainless Steel
