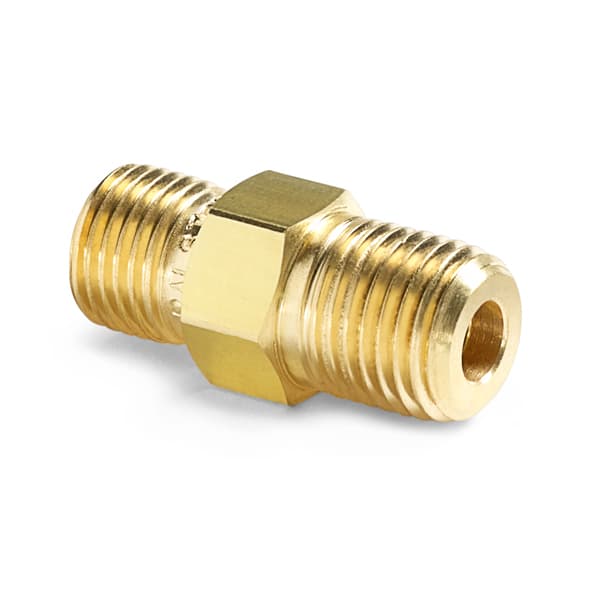

Part Number: QTHA-2MB0

1/4" male NPT x male Quick-test, no check-valve, brass

Connects Female NPT to Quick-test hoses with brass or stainless steel hose ends.

Request a Quote

To receive pricing, request a quote and a Ralston Distributor will respond.

Specifications

Weight1.09 oz / 31 grams
Length1.29 in / 33 mm
Width0.56 in / 15 mm
Height0.56 in / 15 mm
Burst Pressure20000 PSI / 1380 bar / 140 MPa
Country of originUSA
MaterialsBrass
Max Operating Temperature225 °F / 105 °C
Max Pressure5000 PSI / 350 bar / 35 MPa
Max Vacuum0 InHg / 0.0 kPa
Min Operating Temperature0 °F / -18 °C
Seal MaterialsBuna-N
Wrench Size9/16 In / 15 mm
Wrench Size15 mm / 9/16 in
End 1 Connector
1/4" Male NPT (ASME B1.20.1)
End 1 DirectionLeft
End 2 Connector
Male Quick-test
End 2 DirectionLeft
