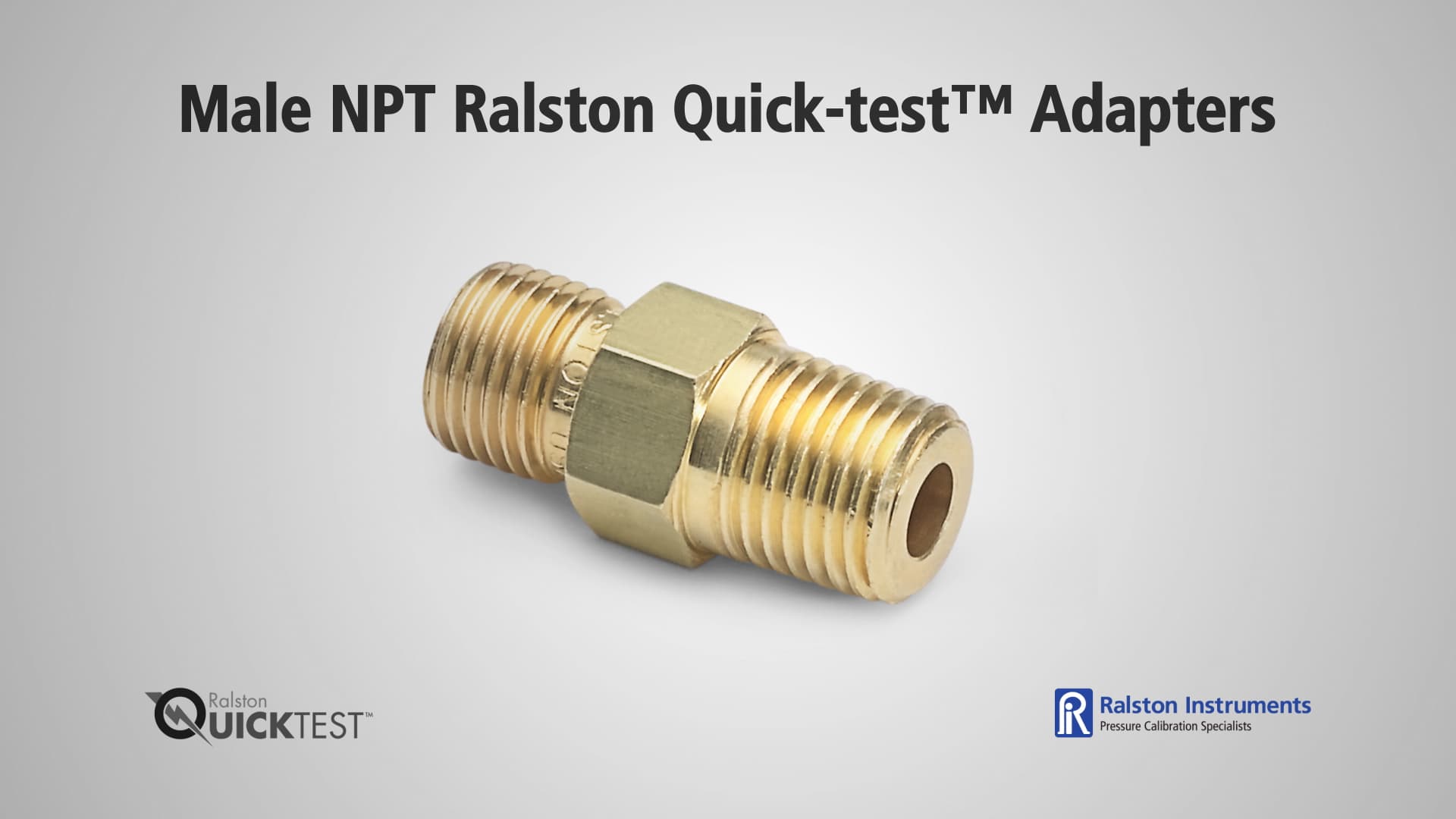

NPT Male Quick-test Adapters

Connects Female NPT to Quick-test hoses with brass or stainless steel hose ends.

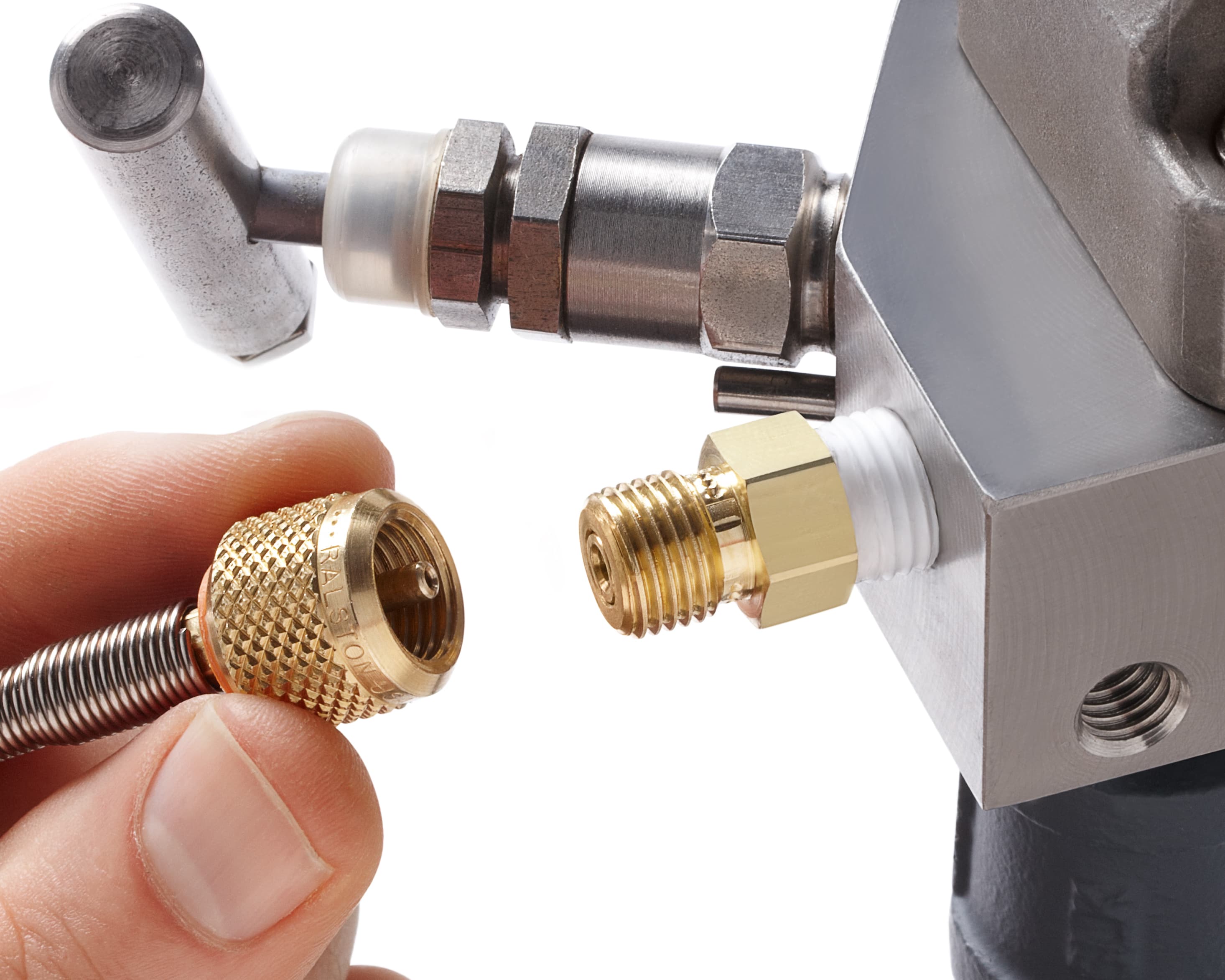

  • Ideal for connecting to pressure transmitters or other devices under test using thread sealant
  • Quickly connect and disconnect Quick-test hoses for testing, calibrating and sampling
  • Made in USA

NPT Male Quick-test Adapters

Model Max Pressure Connection Connection Quick-connect Has Check Valve Cap and Chain Bulkhead Materials
QTHA-0.5MB0 5,000 psi / 345 bar / 34 MPa 1/16" Male NPT (ASME B1.20.1) Male Quick-test No No No No Brass
QTHA-1MB0 5,000 psi / 345 bar / 34 MPa 1/8" Male NPT (ASME B1.20.1) Male Quick-test No No No No Brass
QTHA-1MB1 3,000 psi / 207 bar / 21 MPa 1/8" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Brass
QTHA-1MS0 5,000 psi / 345 bar / 34 MPa 1/8" Male NPT (ASME B1.20.1) Male Quick-test No No No No Stainless Steel
QTHA-1MS1 3,000 psi / 207 bar / 21 MPa 1/8" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Stainless Steel

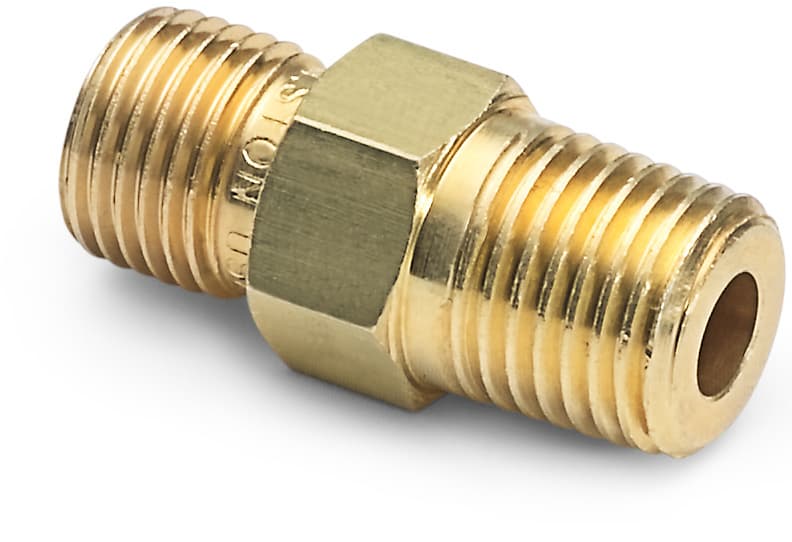

QTHA-2MB0 5,000 psi / 345 bar / 34 MPa 1/4" Male NPT (ASME B1.20.1) Male Quick-test No No No No Brass
QTHA-2MB1 3,000 psi / 207 bar / 21 MPa 1/4" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Brass
QTHA-2MS0 5,000 psi / 345 bar / 34 MPa 1/4" Male NPT (ASME B1.20.1) Male Quick-test No No No No Stainless Steel
QTHA-2MS1 3,000 psi / 207 bar / 21 MPa 1/4" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Stainless Steel
QTHA-3MB0 5,000 psi / 345 bar / 34 MPa 3/8" Male NPT (ASME B1.20.1) Male Quick-test No No No No Brass
QTHA-3MB1 3,000 psi / 207 bar / 21 MPa 3/8" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Brass
QTHA-3MS0 5,000 psi / 345 bar / 34 MPa 3/8" Male NPT (ASME B1.20.1) Male Quick-test No No No No Stainless Steel
QTHA-3MS1 3,000 psi / 207 bar / 21 MPa 3/8" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Stainless Steel
QTHA-4MB0 5,000 psi / 345 bar / 34 MPa 1/2" Male NPT (ASME B1.20.1) Male Quick-test No No No No Brass
QTHA-4MB1 3,000 psi / 207 bar / 21 MPa 1/2" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Brass
QTHA-4MS0 5,000 psi / 345 bar / 34 MPa 1/2" Male NPT (ASME B1.20.1) Male Quick-test No No No No Stainless Steel
QTHA-4MS1 3,000 psi / 207 bar / 21 MPa 1/2" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Stainless Steel
QTHA-6MB0 5,000 psi / 345 bar / 34 MPa 3/4" Male NPT (ASME B1.20.1) Male Quick-test No No No No Brass
QTHA-6MB1 3,000 psi / 207 bar / 21 MPa 3/4" Male NPT (ASME B1.20.1) Male Quick-test No Yes No No Brass
