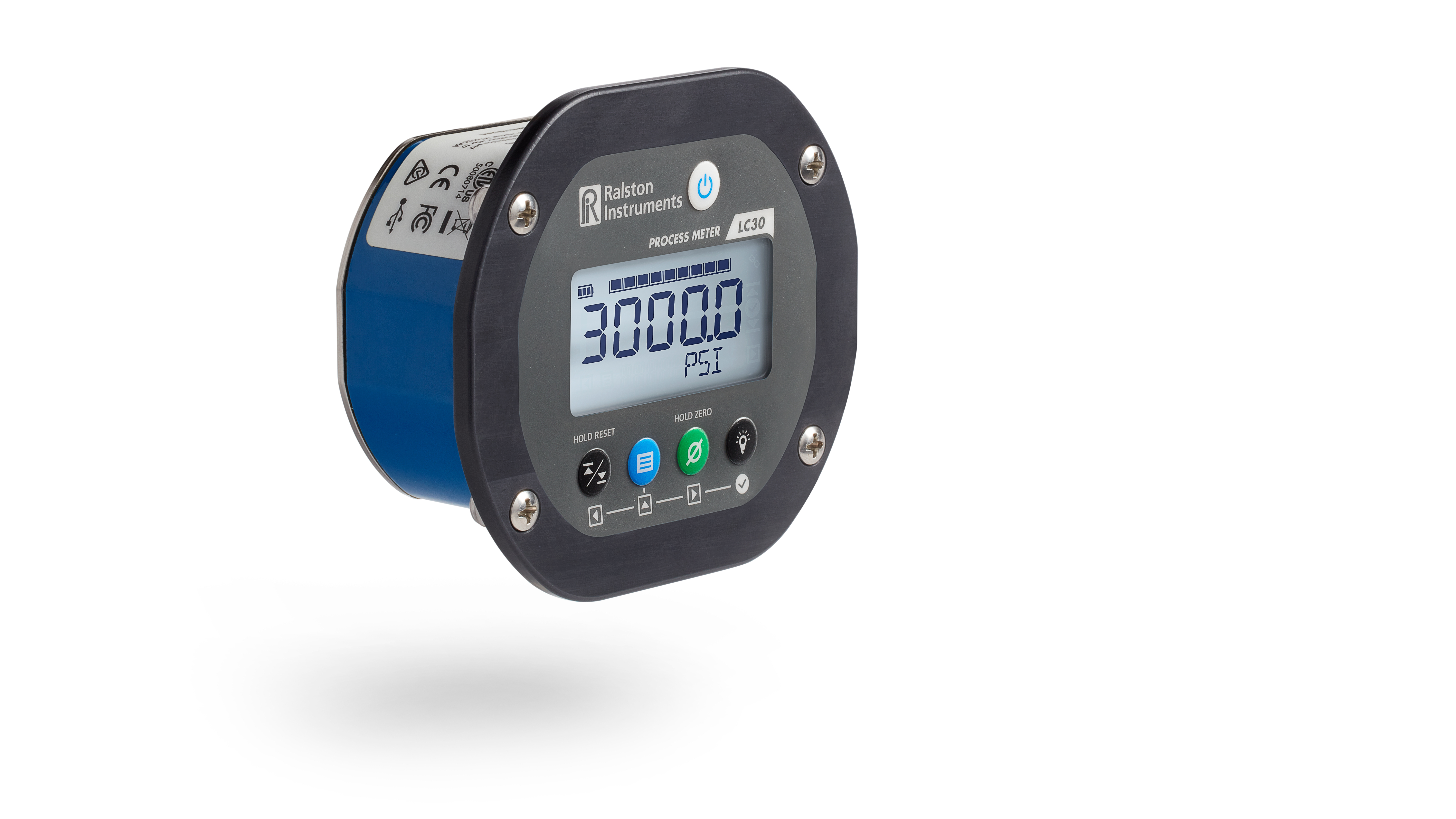

Ralston Process Meter LC30

Panel-Mounted Precision

Take Your Panel Up a Notch

Perform live viewing of pressure or set up tests for continuous monitoring, and easily customize the gauge to your needs using the included FieldLab software. With impressive +/-0.1% full scale accuracy, AC power with battery backup, and convenient features for easy installation, the Process Meter LC30 is an ideal choice for panel-mounted applications wherever a high-precision gauge is needed.

LC30 Gauge Types

Pressure Gauges

5 psi / 35 kPa to 10,000 psi / 70 Mpa

Vacuum/Pressure Gauge

Negative to positive 15 psi

Digital Vacuum Gauge

Measuring up to 30 inHg / 760 mbar

LC30 Digital Pressure Gauge Features

Added customization
Easily switch from among 15 standard engineering units with the option to add your own and remove unneeded units

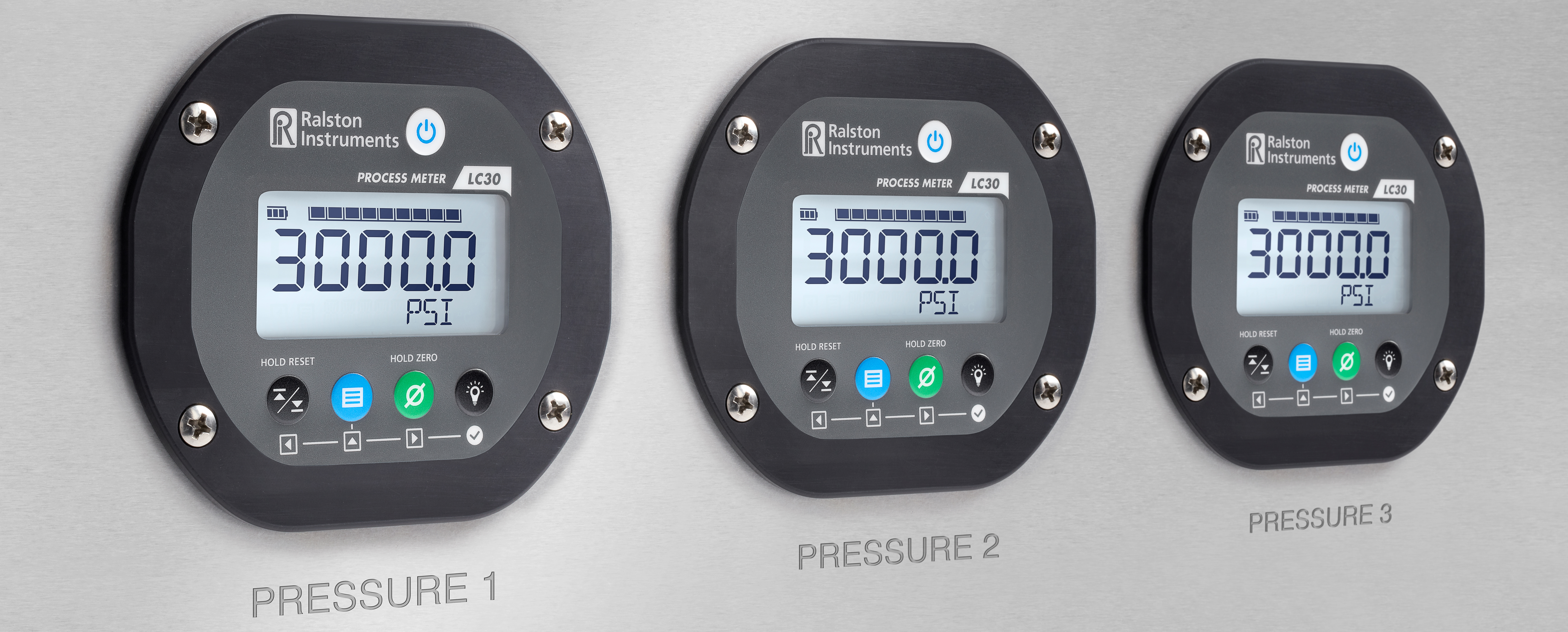

Mounting flange
Allows for installation in a control panel without taking up too much room

Back mounted pressure sensors
Make for easy panel mount installation

USB connection
Connect to calibration management software for live viewing of pressure, customization of engineering units, and calibration

AC mains powered with battery backup
Country adapters for North America, Europe, UK, Australia and China

+/-0.1% full scale accuracy
ASME B40.100 Grade 4A/ISO Class 0.1

Increased visibility
Large, easy-to-read display with intuitive controls and bright backlight

Exceptional durability
Withstands abuse and cracking and is waterproof to 1 meter (IP67)

Quick, reliable Zero function
Using a single button

Convenient High / Low function
View highest and lowest pressure reached

Menu system
Allows access to additional controls

Made in the USA
In Novelty, Ohio
