Quick-test Compressed Gas Cylinder Valve Adapters

QTHA-2MS0-C580-QD

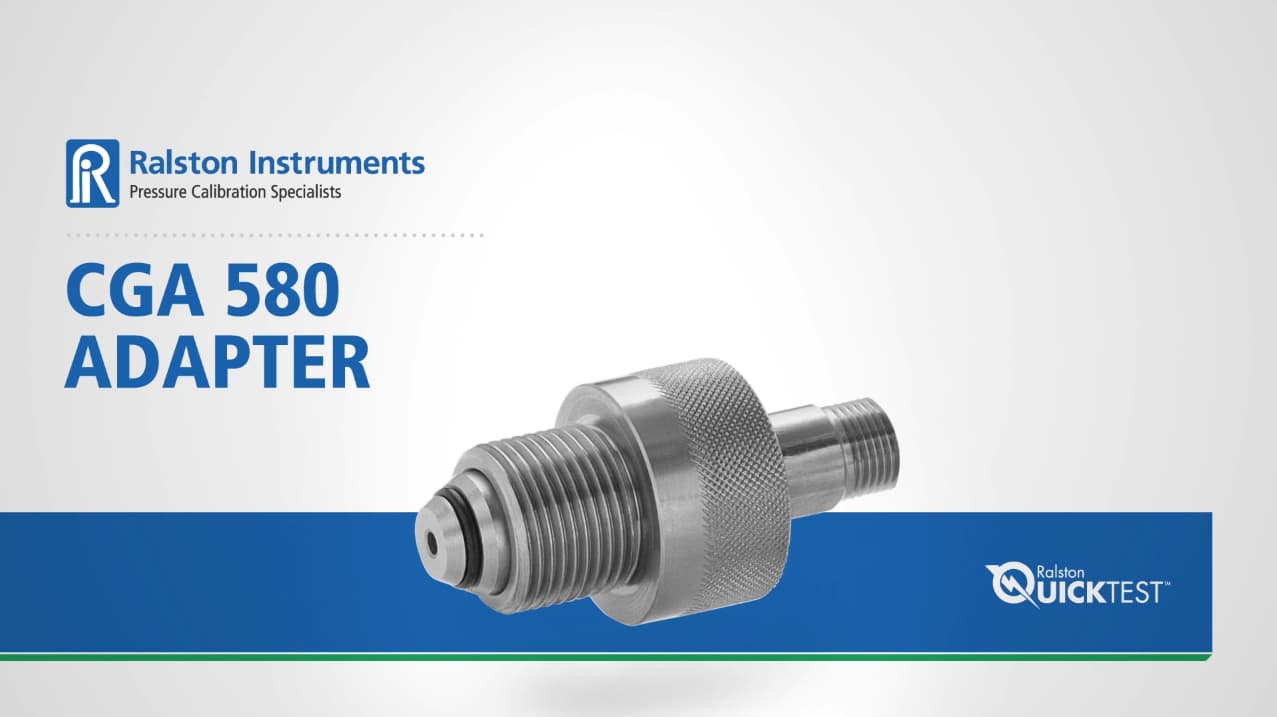

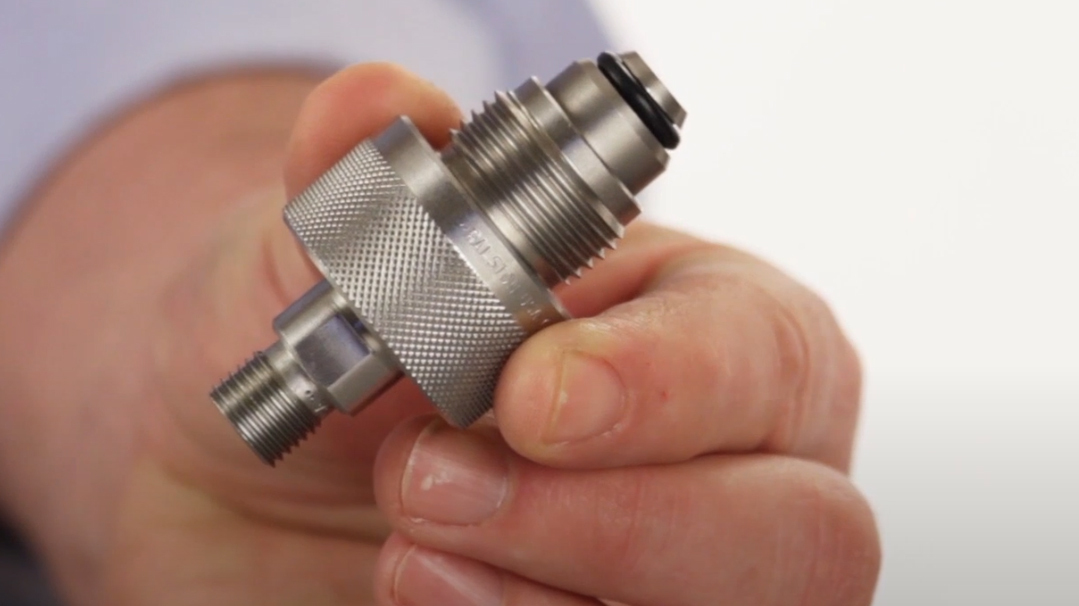

CGA 580 adapter

Connect to compressed gas cylinder valves without a wrench or thread sealant

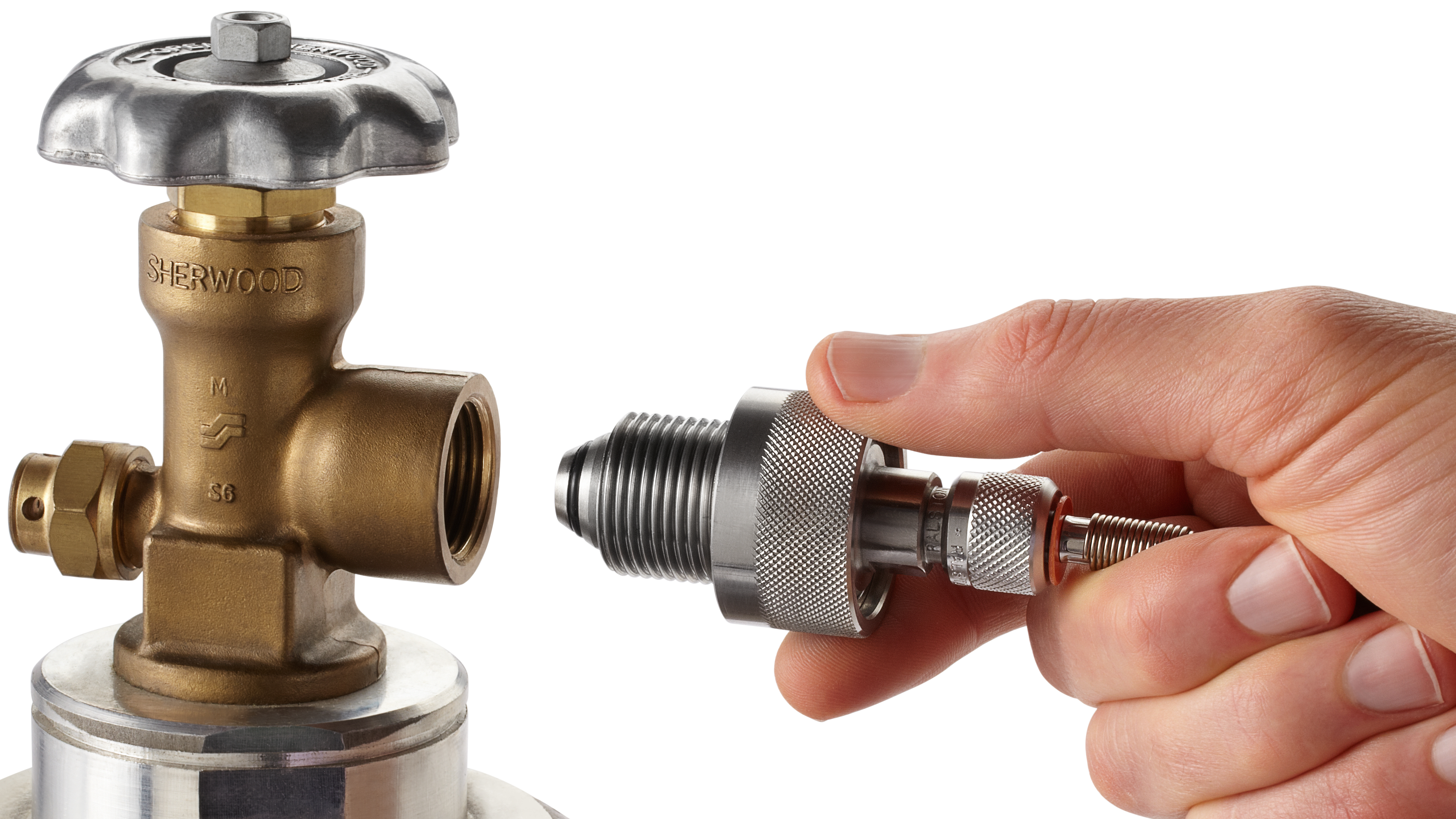

  • Use in the field when connecting a pressure regulator to a nitrogen cylinder
  • Use when filling multiple gas bottles
  • Adapt to CGA 580 (USA), BS 341 Type 3 (UK), NF E29-650 Type C (France), DIN 477 Type 10 (Germany) and AS 2473.2 Type 50 (Australia)
  • Made in USA

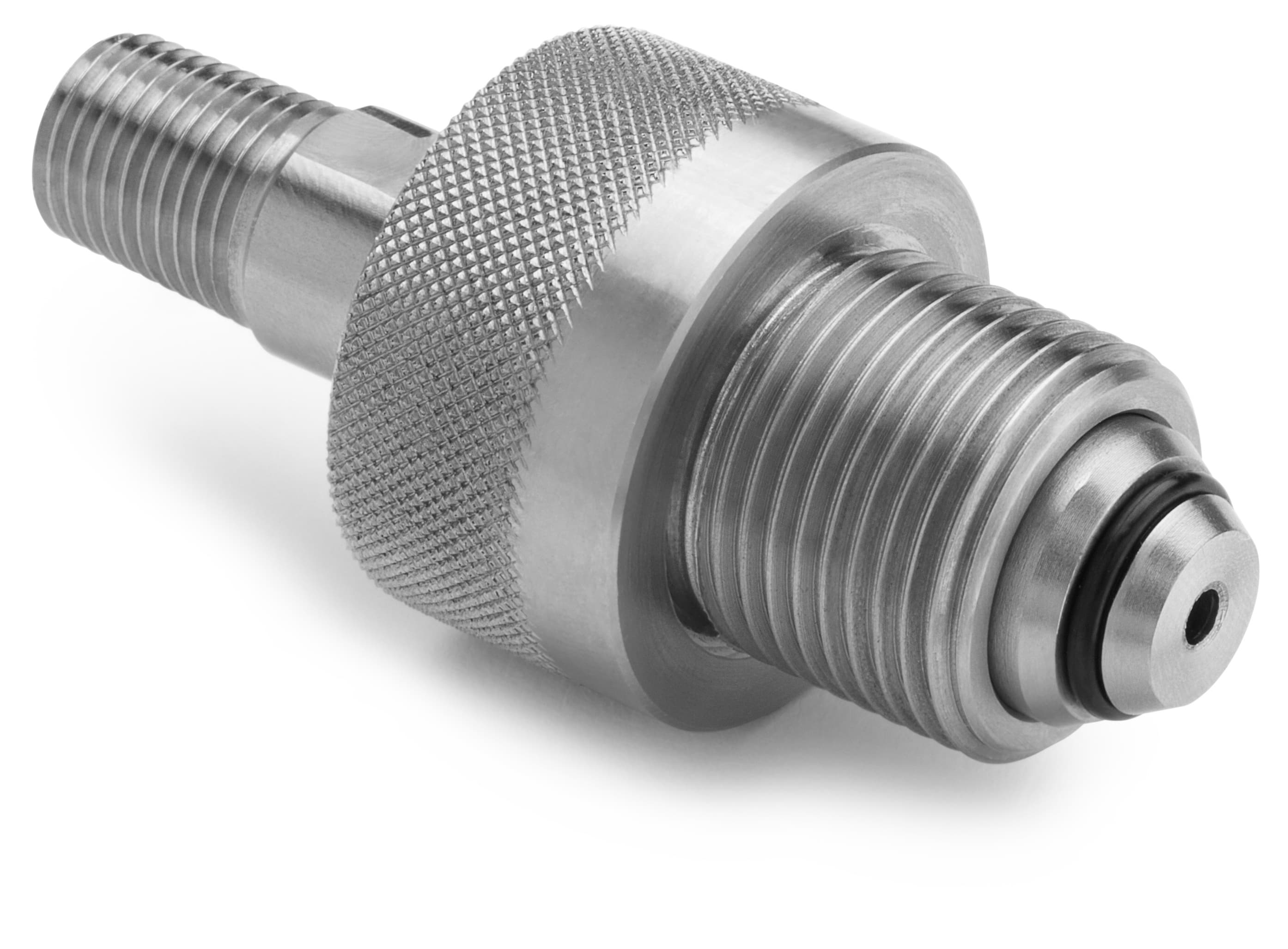

Quick-test Compressed Gas Cylinder Valve Adapter Models

Model Max Pressure Cylinder Connection Connection
QTHA-2MS0-C580-QD 5000 PSI / 350 bar / 35 MPa CGA 580 (USA) 1/4" Male NPT (ASME B1.20.1)
QTHA-CMS0-C580-QD 5000 PSI / 350 bar / 35 MPa CGA 580 (USA) Male Quick-test
QTHA-2MS0-F650TC-QD 5000 PSI / 350 bar / 35 MPa AFNOR NF E29-650 TYPE C (France) 1/4" Male NPT (ASME B1.20.1)
QTHA-2MS0-D477T10-QD 5000 PSI / 350 bar / 35 MPa DIN 477 Type 10 (Germany) 1/4" Male NPT (ASME B1.20.1)
QTHA-2MS0-A2473T50-QD 5000 PSI / 350 bar / 35 MPa AS2473.2 Type 50 (Australia) 1/4" Male NPT (ASME B1.20.1)
QTHA-2MS0-B341T03-QD 5000 PSI / 350 bar / 35 MPa BS 341 Type 3 (United Kingdom) 1/4" Male NPT (ASME B1.20.1)
